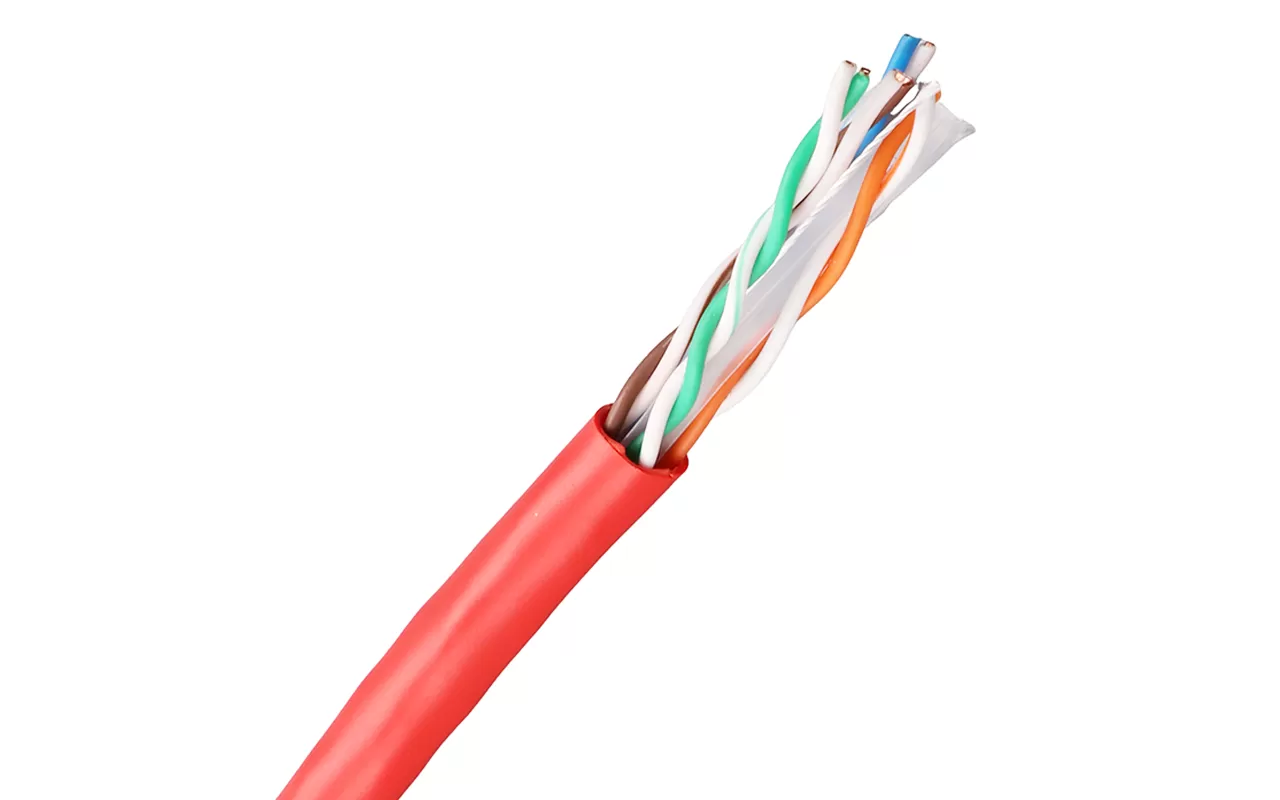

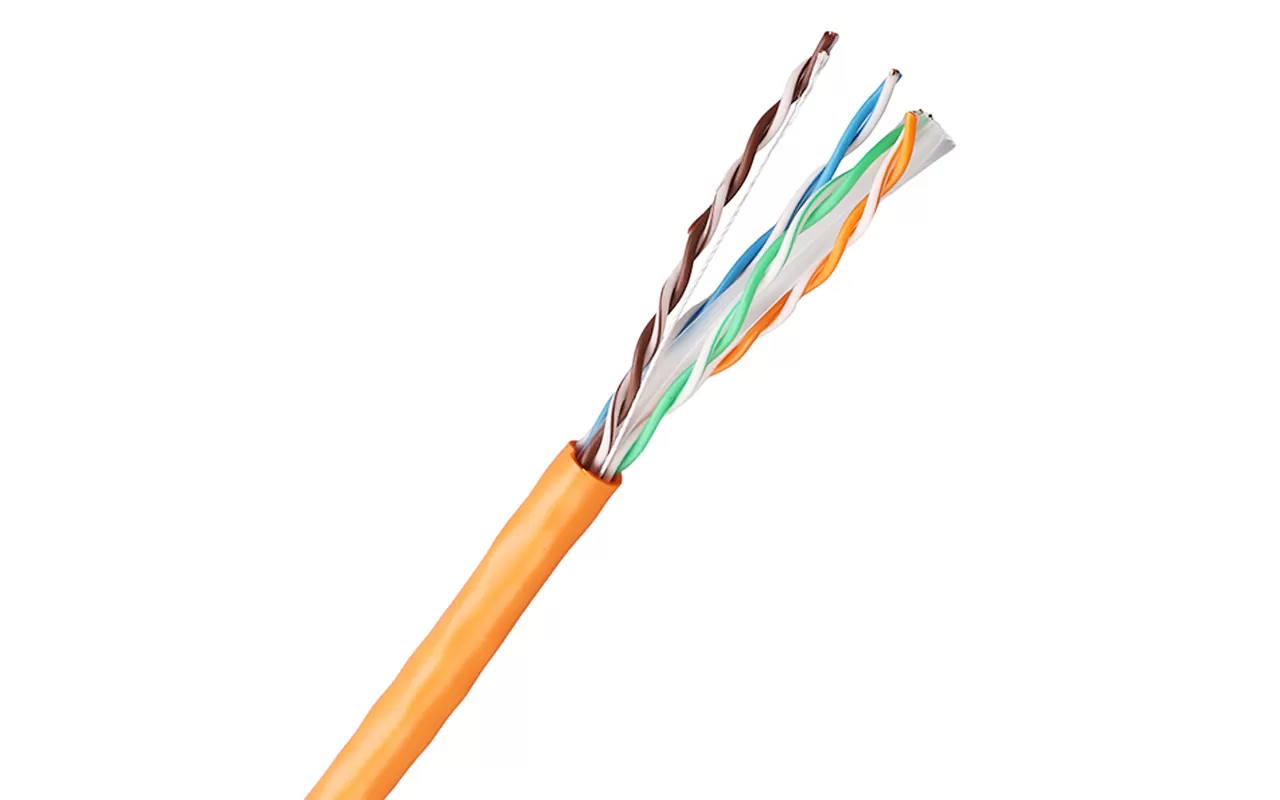

CAT6 UTP Network Cable
CAT6 UTP Network Cable
CAT6 UTP Network Cable
CAT6 UTP Network Cable
CAT6 UTP Network Cable

Technical Specifications of UTP Unshielded CAT6 Lan Cable

Description

  • Conductor: 23 AWG Solid Bare Copper

  • Insulation: SKIN-FOAN-SKIN PE

  • Halogen Free or PVC Jacket available

  • RoHS, REACH, UL compliant



Standard

  • UL/CSA Listed CM CMR

  • ANSI/TIA-568-C.2-1

  • ISO/IEC 11801

  • BS EN 50288

  • IEC 61156


Application

- Premise Horizontal Cable

- Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T

- PoE++, PoE+, PoE



Electrical Characteristics

-Conductor Resistance (20℃)≤7.3 Ω/ 100m

-Electrical Resistance Unbalance ( 20℃)≤2.5 %

-Insulation Resistance>5000 MΩ·km

-Mutual capacitance of a pair≤5.6nF/100m

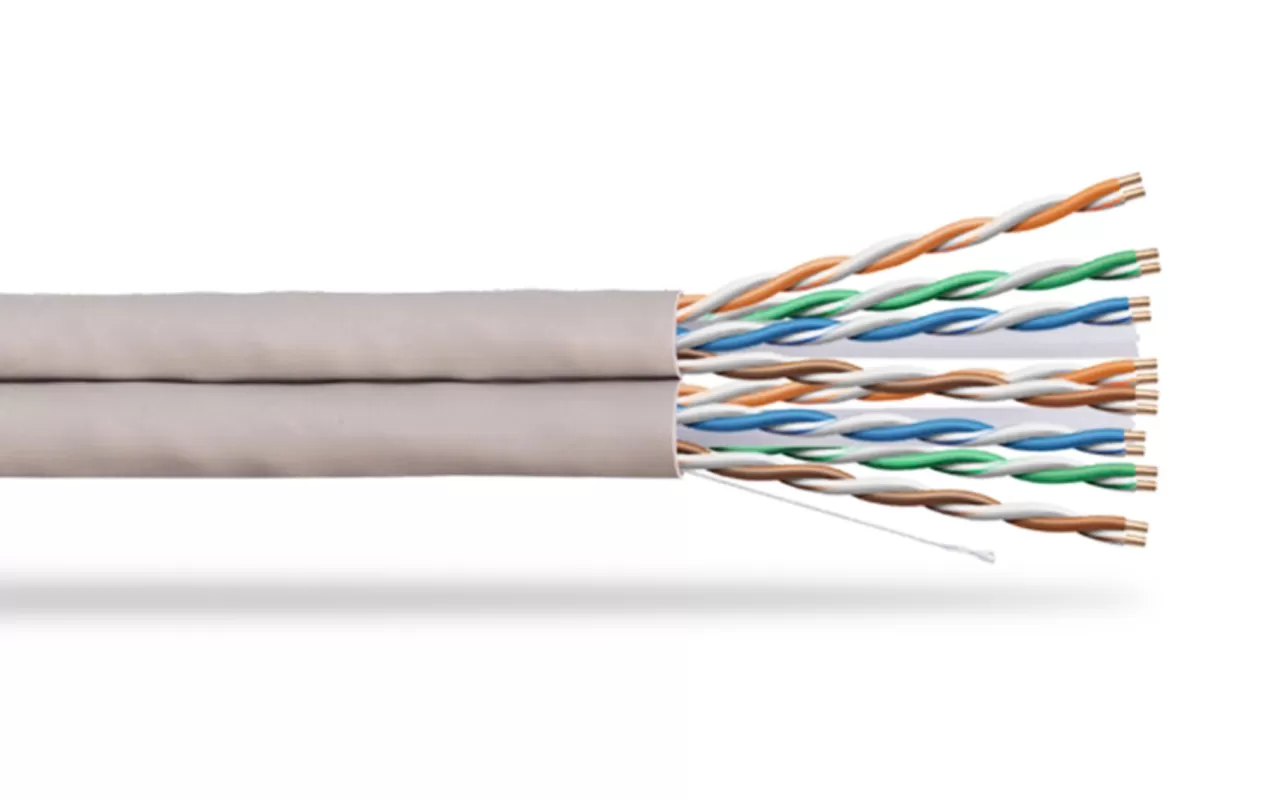

Conductor

Conductor

Solid Bare Copper 23AWG

Insulation

HDPE

Total number of insulated conductors

8, twisted in 4 pairs

Color code

White-Blue/Blue,White-Orange/Orange

White-Green/Green.White-Brown/Brown

Individual pair shield

NONE

Overall shield

NONE

Drain wire

Tinned copper

Cross Filler

1




Order information

ltem

Outer Jacket

Overall diameter(mm)

XF-U-06-01

CMX

6.3 ±0.2

XF-U-06-02

CM

6.3 ±0.2

XF-U-06-03

CMR

6.3 ±0.2

XF-U-06-04

LSZH

6.3 ±0.2

XF-U-06-05

LDPE

6.3 ±0.2

XF-U-06-06

PVC

6.3 ±0.2

Frequency

[MHz]

Max. Insertion Loss

(Attenuation)

Min. NEXT [dB]

Min. PSNEXT [dB]

Min. ACR [dB]

Min. PSACR [dB]

Min. ACRF

(ELFEXT) [dB]

Min. PSACRF

(PSELFEXT) [dB]

Min. RL

(Return Loss)[dB]

Max./Min. Input

Impedance (unFitted)

[Ohm]

Max./Min. Fitted

Impedance [Ohm]

1

2.0 dB/100m

84.3

82.3

80.3

80.3

76.8

73.8

20.0

100 ± 15


4

3.7 dB/100m

75.3

73.3

69.5

69.5

64.8

61.8

23.6

100 ± 15

100 ± 12

8

5.3 dB/100m

70.8

68.8

63.5

63.5

58.7

55.7

25.3

100 ± 15

100 ± 10.4

10

5.9 dB/100m

69.3

67.3

61.4

61.4

56.8

53.8

26.0

100 ± 15

100 ± 8

16

7.4 dB/100m

66.2

64.2

56.8

56.8

52.7

49.7

26.0

100 ± 15

100 ± 7.3

20

8.3 dB/100m

64.8

62.8

54.4

54.4

50.8

47.8

26.0

100 ± 15

100 ± 5.7

25

9.4 dB/100m

63.3

61.3

52.0

52.0

48.8

45.8

25.5

100 ± 15

100 ± 5

31.25

10.5 dB/100m

61.9

59.9

49.4

49.4

46.9

43.9

25.0

100 ± 15

100 ± 5

62.5

15.1 dB/100m

57.4

55.4

40.3

40.3

40.9

37.9

23.5

100 ± 15

100 ± 5

100

19.3 dB/100m

54.3

52.3

33.0

33.0

36.8

33.8

22.5

100 ± 15

100 ± 5

155

24.5 dB/100m

51.4

49.4

24.9

24.9

33.0

30.0

21.6

100 ± 22

100 ± 5

200

28.2 dB/100m

49.8

47.8

19.6

19.6

30.8

27.8

21.0

100 ± 22

100 ± 5

250

31.8 dB/100m

48.3

46.3

14.5

14.5

28.8

25.8

20.5

100 ± 32

100 ± 5

Note:The above transmission performance for the 100M,20±2℃ under the conditions tested.
