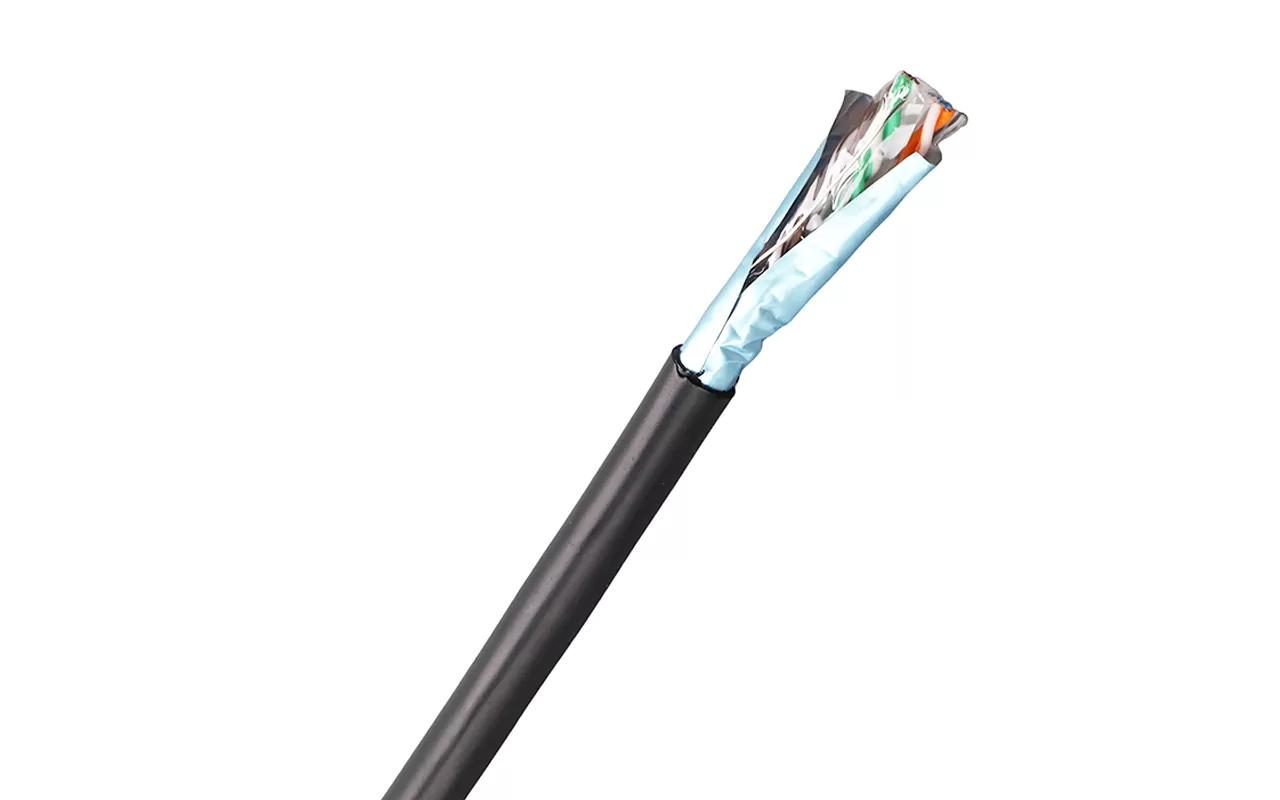

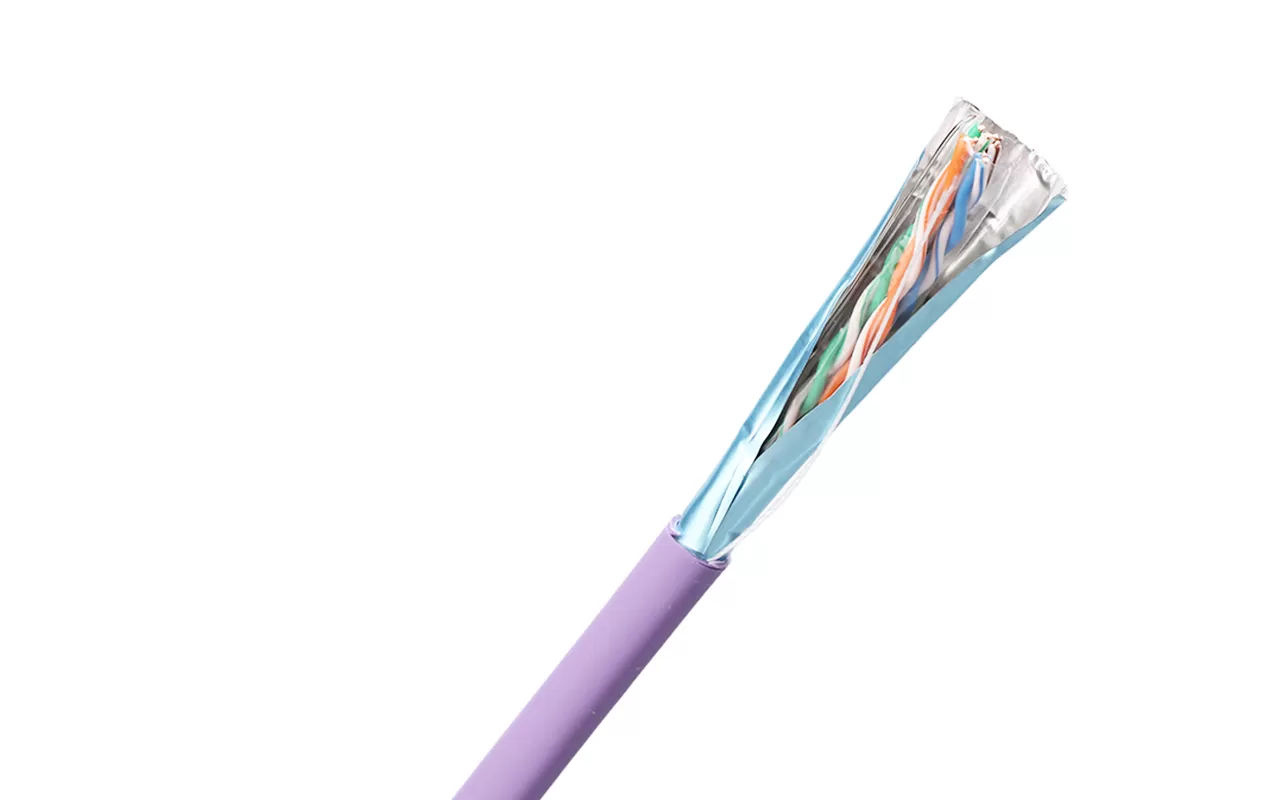

Conductor: 23 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen-free or PVC Jacket available
RoHS, REACH, UL compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
BS EN 50288
IEC 61156
- Horizontal and building backbone cable
-Support current and future Category 6 and 5e applications, like 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM
-Conductor Resistance (20℃)≤7.3 Ω/ 100m
-Electrical Resistance Unbalance ( 20℃)≤2.5 %
-Insulation Resistance>5000 MΩ·km
-Mutual capacitance of a pair≤5.6nF/100m

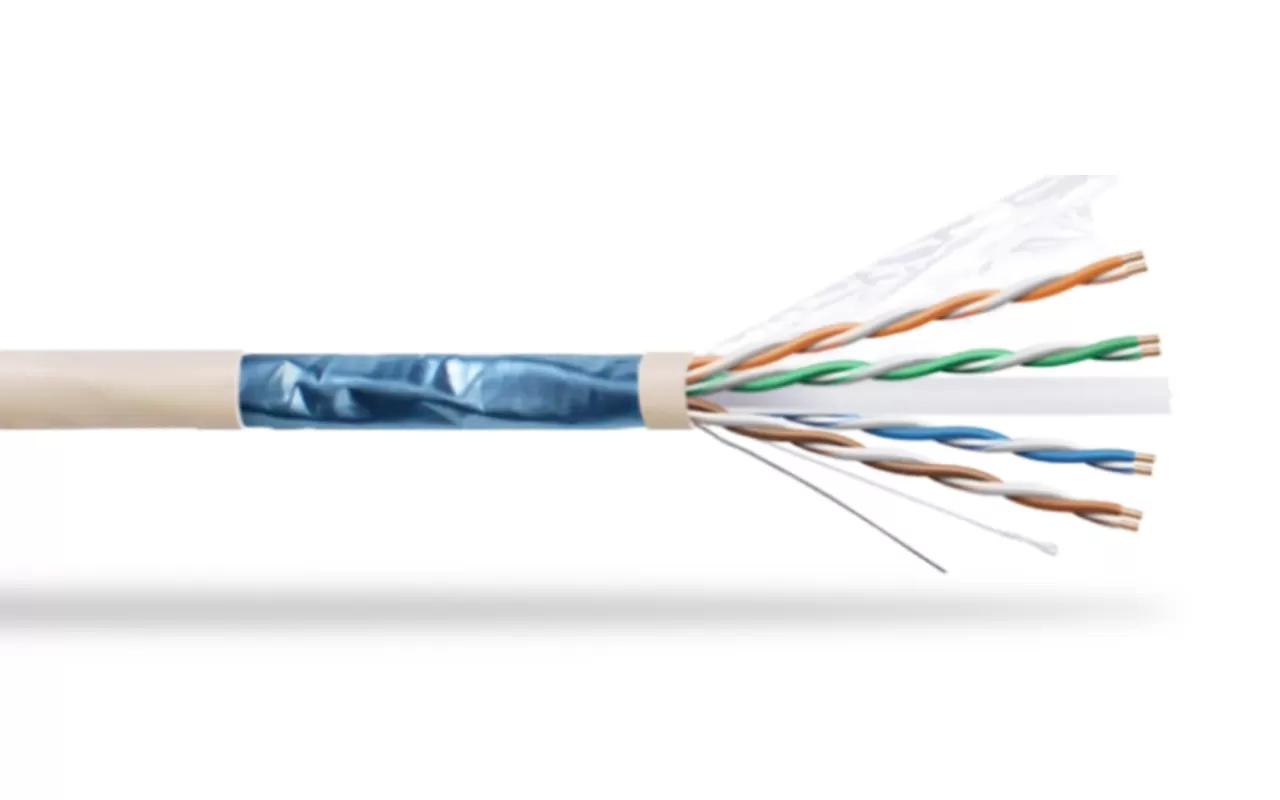

Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue,White-Orange/Orange White-Green/Green.White-Brown/Brown |
Individual pair shield | NONE |
Overall shield | Aluminum foil,providing 100% coverage,foil face out |
Drain wire | Tinned copper |
Cross Filler | 1 |
ltem | Outer Jacket | Overall diameter(mm) |
XF-F-06-01 | CMX | 7.3 ±0.2 |
XF-F-06-02 | CM | 7.3 ±0.2 |
XF-F-06-03 | CMR | 7.3 ±0.2 |
XF-F-06-04 | LSZH | 7.3 ±0.2 |
XF-F-06-05 | LDPE | 7.3 ±0.2 |
XF-F-06-06 | PVC | 7.3 ±0.2 |
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
1 | 2.1 dB/100m | 75.3 | 72.3 | 73.2 | 70.2 | 70 | 67 | 20 | 40 | 35 |
4 | 3.8 dB/100m | 66.3 | 63.3 | 62.4 | 59.4 | 58 | 55 | 23 | 34 | 23 |
10 | 6 dB/100m | 60.3 | 57.3 | 54.3 | 51.3 | 50 | 47 | 25 | 30 | 15 |
16 | 7.6 dB/100m | 57.2 | 54.2 | 49.6 | 46.6 | 45.9 | 42.9 | 25 | 28 | 10.9 |
20 | 8.5 dB/100m | 55.8 | 52.8 | 47.3 | 44.3 | 44 | 41 | 25 | 27 | 9 |
31.2 | 10.7 dB/100m | 52.9 | 49.9 | 42.1 | 39.1 | 40.1 | 37.1 | 23.6 | 25.1 | 5.1 |
62.5 | 15.5 dB/100m | 48.4 | 45.4 | 32.9 | 29.9 | 34.1 | 31.1 | 21.5 | 22 | |
100 | 19.9 dB/100m | 45.3 | 42.3 | 25.4 | 22.4 | 30 | 27 | 20.1 | 20 | |
155 | 25.3 dB/100m | 42.4 | 39.4 | 17.1 | 14.1 | 26.2 | 23.2 | 18.8 | 18.1 | |
200 | 29.1 dB/100m | 40.8 | 37.8 | 11.6 | 8.6 | 24 | 21 | 18 | 17 | |
250 | 33 dB/100m | 39.3 | 36.3 | 6.3 | 3.3 | 22 | 19 | 17.3 | 16 | |
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | ||||||||||
