Elevate Your Offerings with High-Margin SF/UTP Shielded CAT6 Lan Cable

Unlock expanding market demand, superior performance, and high-profit margins with our premium shielded CAT6 cables.
Send A Quotation

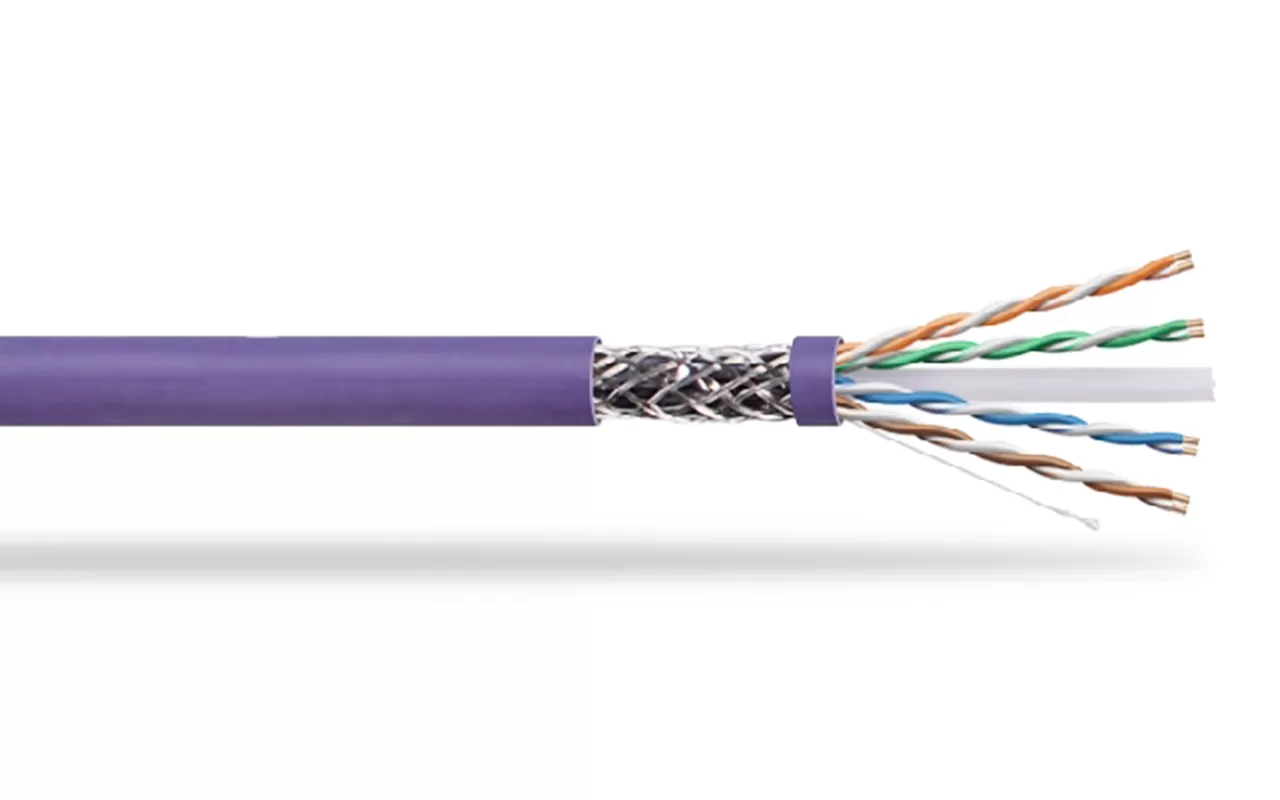

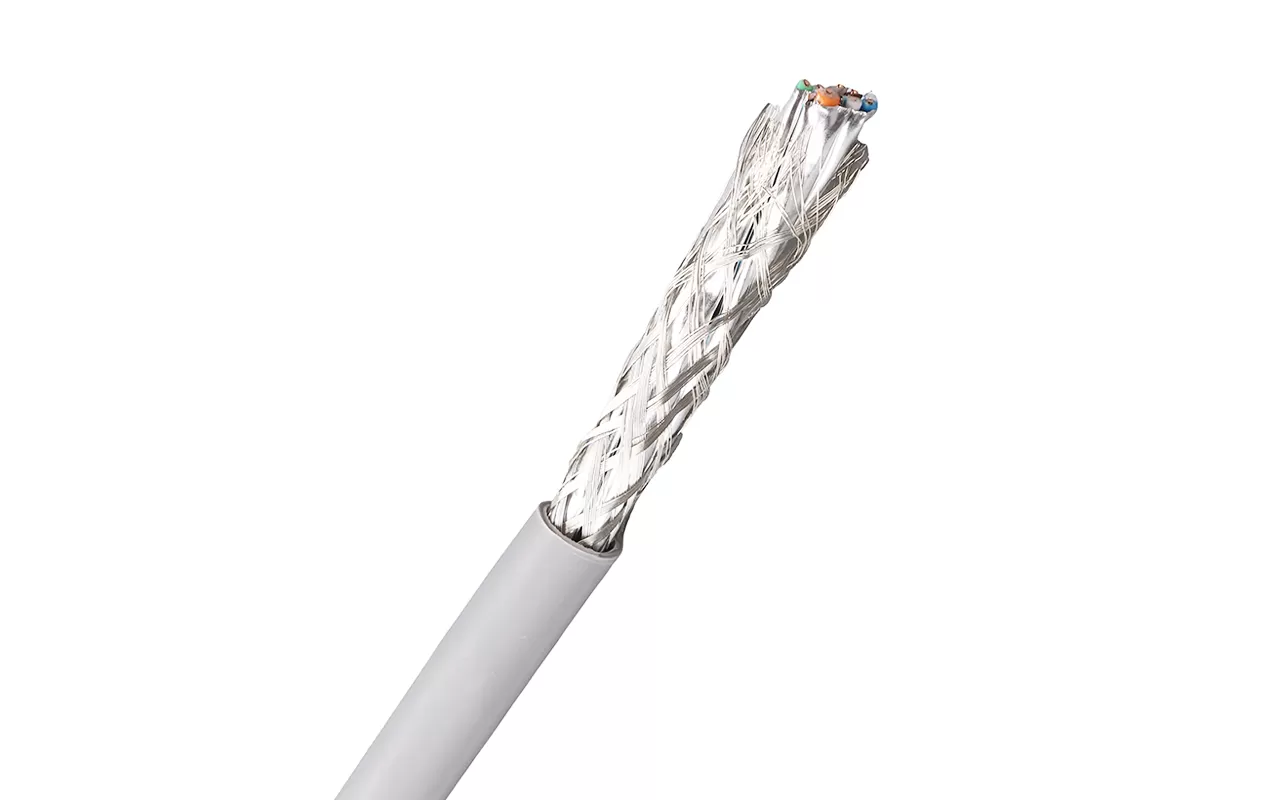

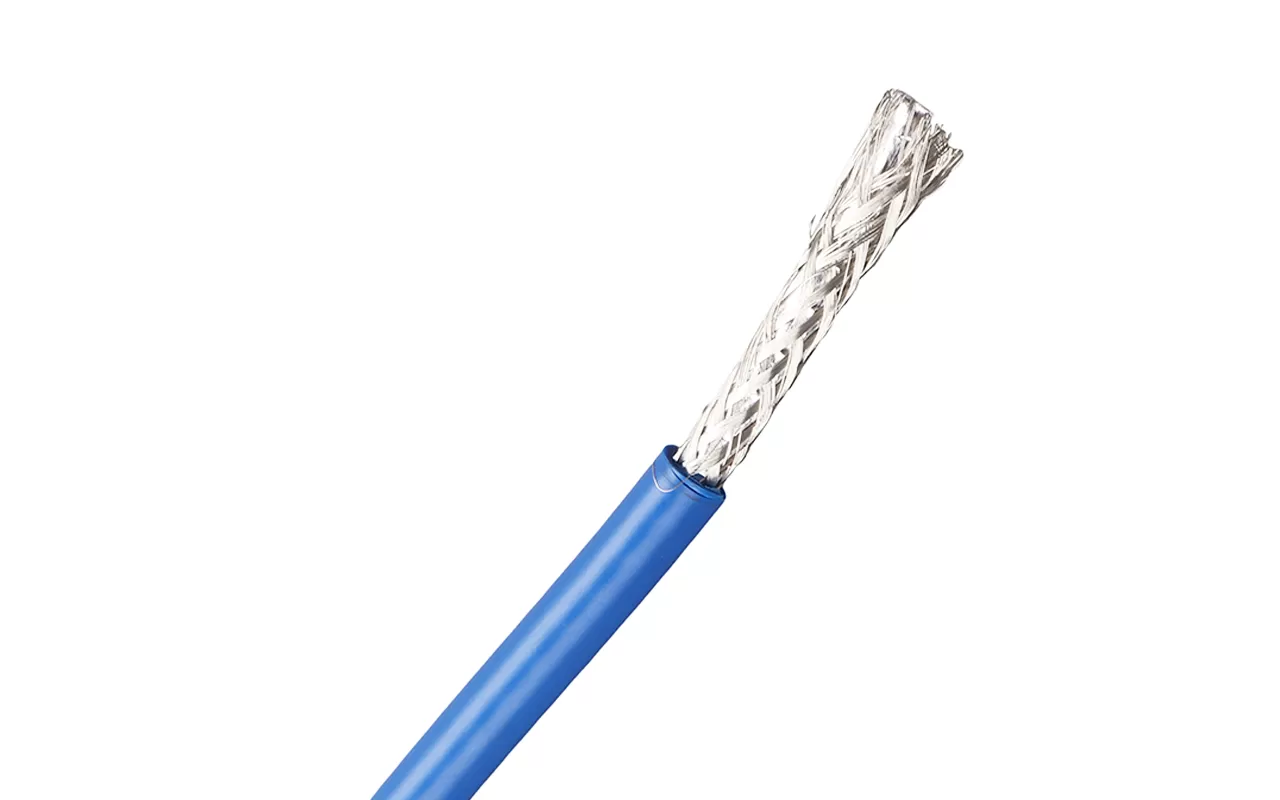

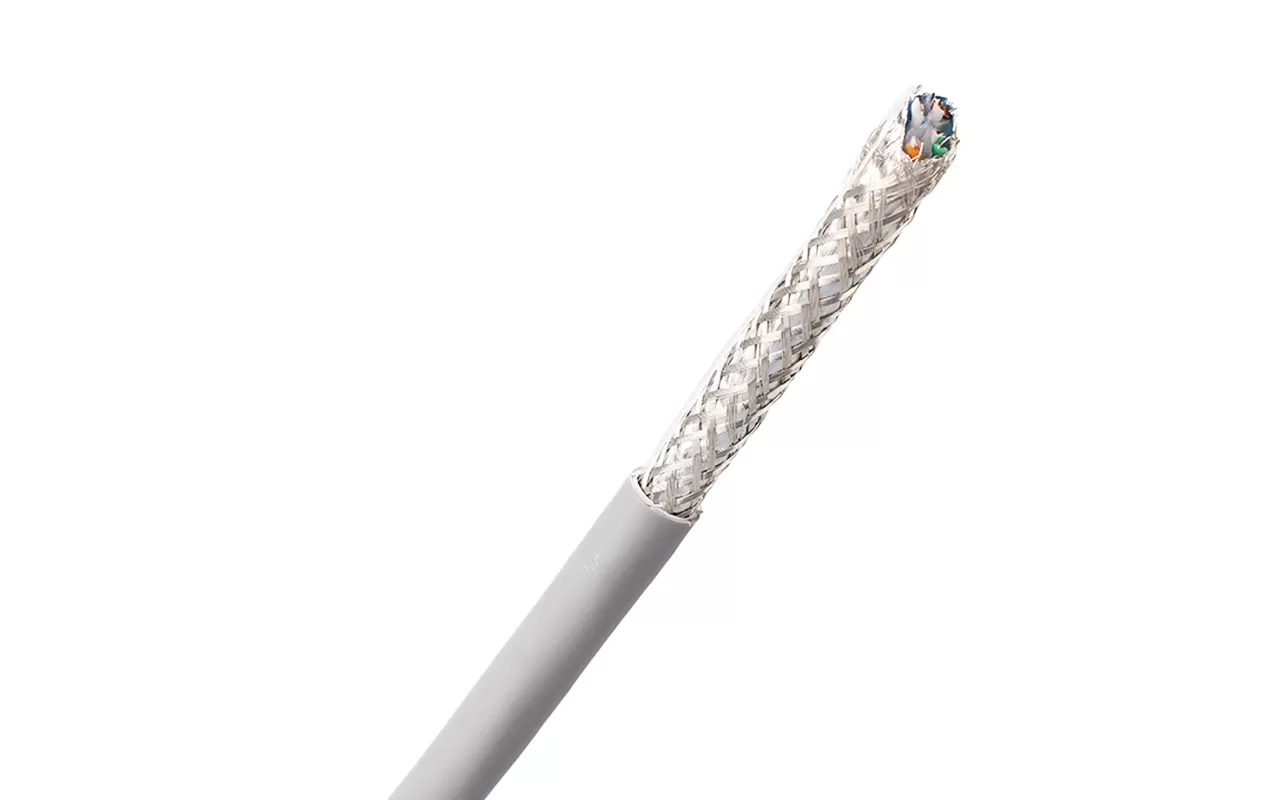

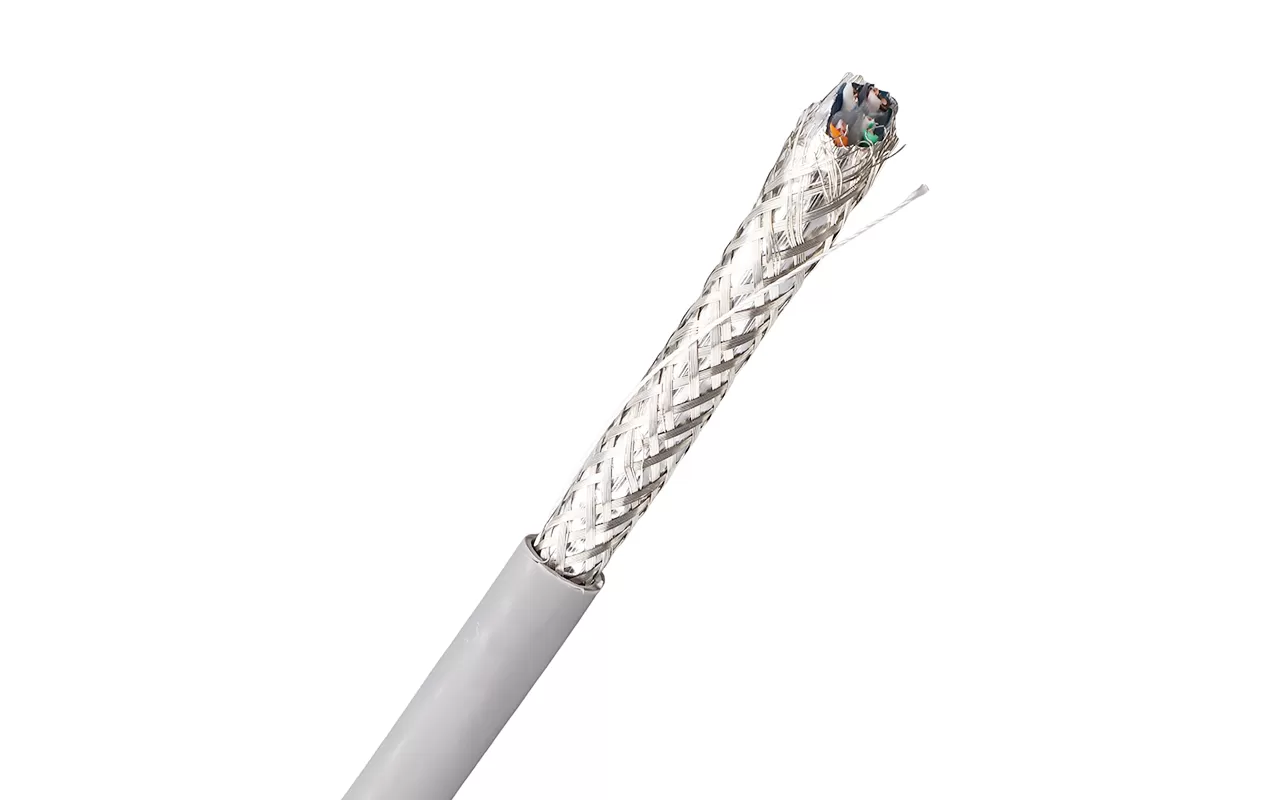

UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable
UTP Shielded CAT6 Ethernet Cable

Technical Specifications of SF/UTP Shielded CAT6 Lan Cable

Description

  • Conductor: 23 AWG Solid Bare Copper

  • Insulation: SKIN-FOAN-SKIN PE

  • Halogen-free or PVC Jacket available

  • RoHS, REACH, UL compliant


Standard

  • UL/CSA Listed CM CMR

  • ANSI/TIA-568-C.2-1

  • ISO/IEC 11801

  • BS EN 50288

  • IEC 61156


Application

- Horizontal and building backbone cable

- Support current and future Category 6 and 5e applications, like 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM


Electrical Characteristics

-Conductor Resistance (20℃)≤7.3 Ω/ 100m

-Electrical Resistance Unbalance ( 20℃)≤2.5 %

-Insulation Resistance>5000 MΩ·km

-Mutual capacitance of a pair≤5.6nF/100m

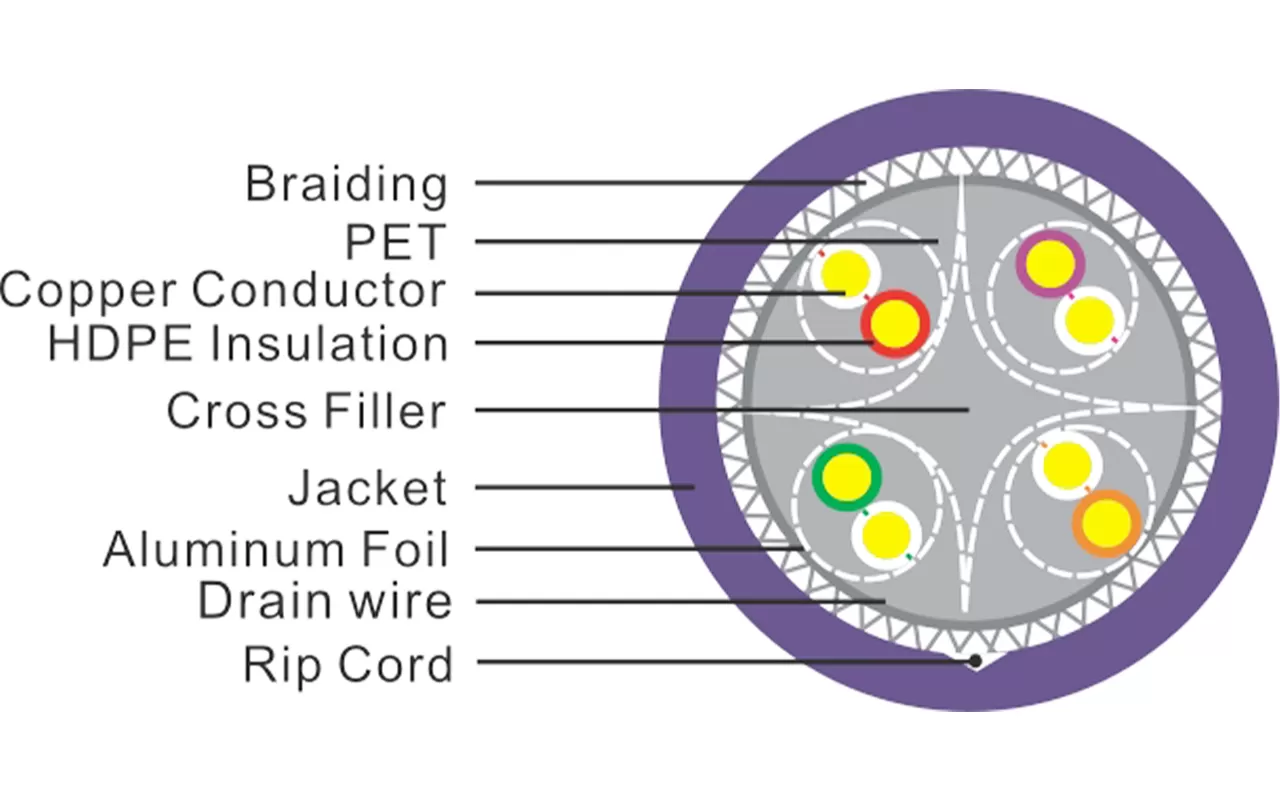

Conductor

Conductor

Solid Bare Copper 23AWG

Insulation

HDPE

Total number of insulated conductors

8, twisted in 4 pairs

Color code

White-Blue/Blue,White-Orange/Orange

White-Green/Green.White-Brown/Brown

Individual pair shield

Aluminum foil,providing 100% coverage,foil face out

Overall shield

Tinned copper braid

Drain wire

Tinned copper

Cross Filler

1



Order information


ltem

Outer Jacket

Overall diameter(mm)

XF-F-06-01

CMX

7.9 ±0.2

XF-F-06-02

CM

7.9 ±0.2

XF-F-06-03

CMR

7.9 ±0.2

XF-F-06-04

LSZH

7.9 ±0.2

XF-F-06-05

LDPE

7.9 ±0.2

XF-F-06-06

PVC

7.9 ±0.2



Frequency

[MHz]

Max. Insertion Loss

(Attenuation)

Min. NEXT

[dB]

Min. PSNEXT

[dB]

Min. ACR

[dB]

Min. PSACR

[dB]

Min. ACRF

(ELFEXT) [dB]

Min. PSACRF

(PSELFEXT) [dB]

Min. RL (Return Loss) [dB]

Min. TCL

[dB]

Min. ELTCTL

[dB]

1

2.1 dB/100m

75.3

72.3

73.2

70.2

70

67

20

40

35

4

3.8 dB/100m

66.3

63.3

62.4

59.4

58

55

23

34

23

10

6 dB/100m

60.3

57.3

54.3

51.3

50

47

25

30

15

16

7.6 dB/100m

57.2

54.2

49.6

46.6

45.9

42.9

25

28

10.9

20

8.5 dB/100m

55.8

52.8

47.3

44.3

44

41

25

27

9

31.2

10.7 dB/100m

52.9

49.9

42.1

39.1

40.1

37.1

23.6

25.1

5.1

62.5

15.5 dB/100m

48.4

45.4

32.9

29.9

34.1

31.1

21.5

22


100

19.9 dB/100m

45.3

42.3

25.4

22.4

30

27

20.1

20


155

25.3 dB/100m

42.4

39.4

17.1

14.1

26.2

23.2

18.8

18.1


200

29.1 dB/100m

40.8

37.8

11.6

8.6

24

21

18

17


250

33 dB/100m

39.3

36.3

6.3

3.3

22

19

17.3

16


Note:The above transmission performance for the 100M, 20±2℃ under the conditions tested.
