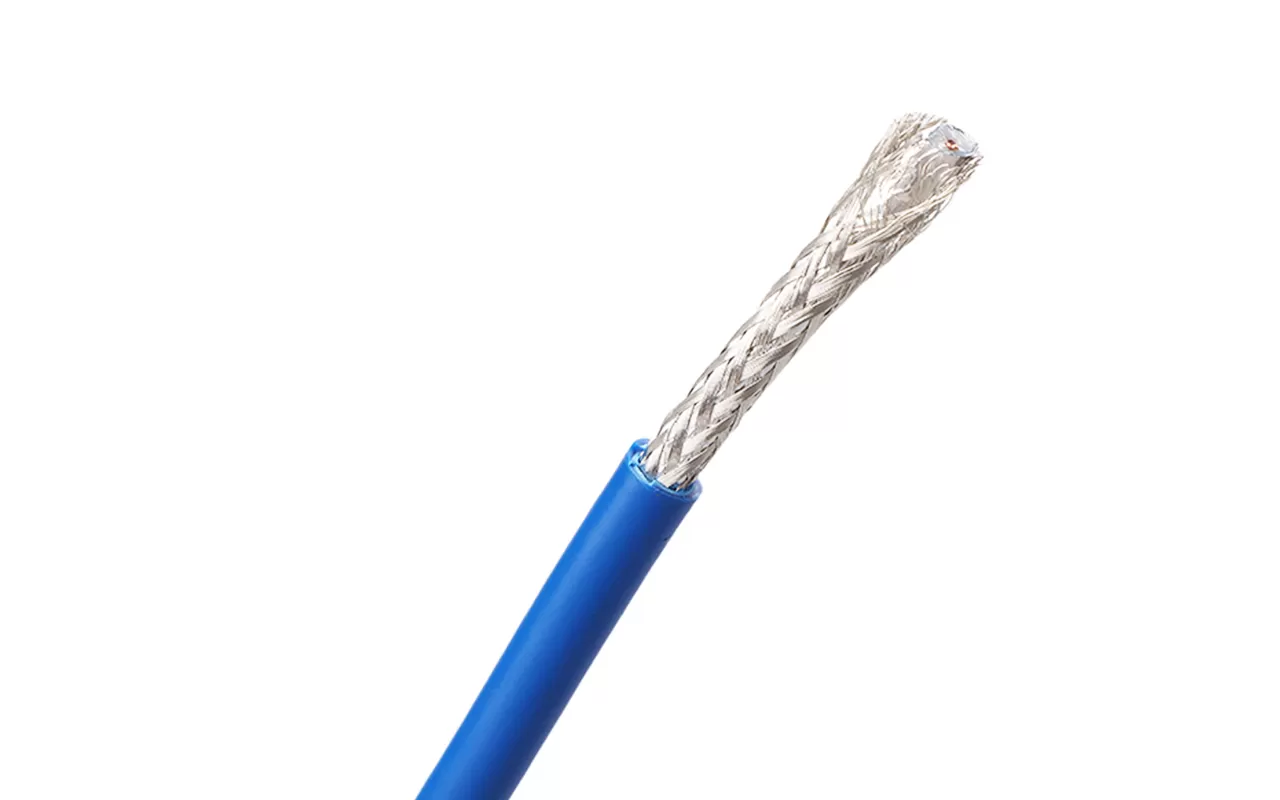

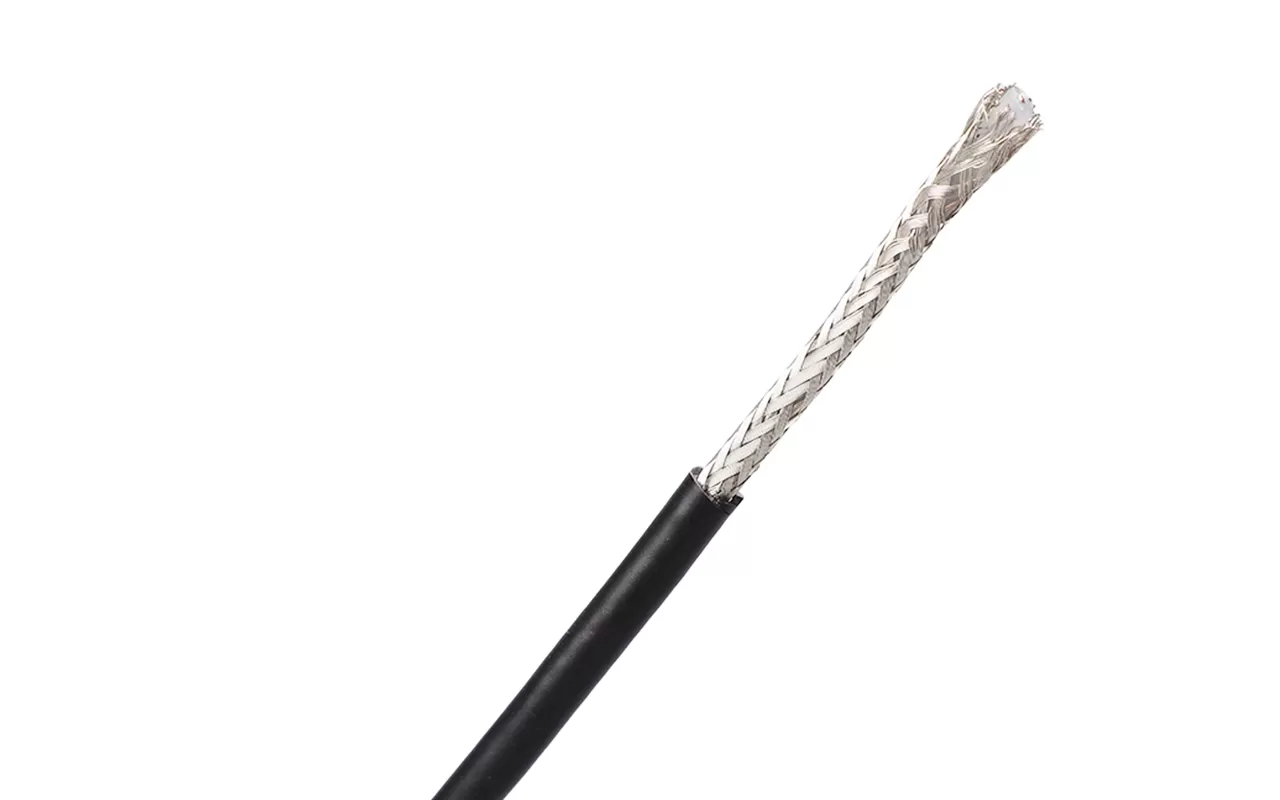

RG58/U | RG58A/U | RG58C/U | ||
Conductor | MATERIAL | BC/TC | BC/TC | BC/TC |
Nom.Dia | 19AWG | 19AWG | 19AWG | |
Dielectric | MATERIAL | PE | Foam PE | PE |
Nom.Dia | 2.95mm | 2.90mm | 2.95mm | |
Shield | MATERIAL | BC/TC Braiding | BC/TC Braiding | BC/TC Braiding |
COVERAGE | 95% | 95% | 95% | |
Jacket | MATERIAL | PVC/PE | PVC/PE | PVC/PE |
Nom.Thick | 0.80mm | 0.80mm | 0.80mm | |
Nom.Dia | 4.95mm | 4.90mm | 5.08mm |
Nominal Impedance（ohm) | 50±2 | ||
Nominal Velocity of propagation(%) | 87 | ||
Nominal Capacitance(pf/m) | 55±3.0 | ||
Spark Test(VAC) | 2500 | ||
SRL(dB） | 30-470 | ≥20 | |
470-1000 | ≥18 | ||
Attenuation [68℉(20℃)] | Frequency（MHz） | Maximum(dB/100ft) | Maximum(dB/100m) |
50 | 3.90 | 12.80 | |
100 | 5.05 | 16.57 | |
200 | 8.20 | 26.90 | |
400 | 9.60 | 31.50 | |
500 | 11.90 | 39.04 | |
700 | 17.00 | 55.77 | |
900 | 18.00 | 59.02 | |
1000 | 19.80 | 64.96 | |
