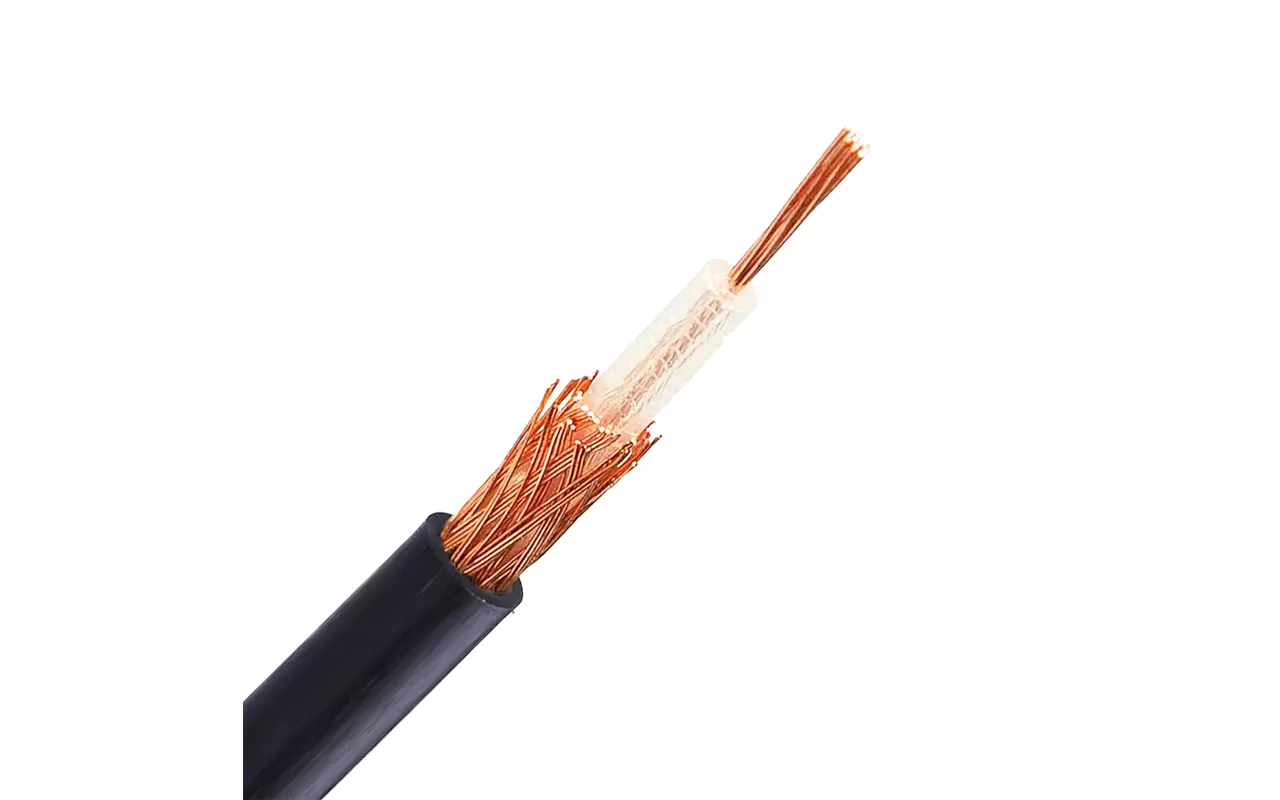

RG174 | ||
Conductor | MATERIAL | BC/CCS |
Nom.Dia | 7*0.16mm | |
Dielectric | MATERIAL | PE |
Nom.Dia | 1.60mm | |
Shield | MATERIAL | TC Braiding |
COVERAGE | 90% | |
Jacket | MATERIAL | PVC |
Nom.Thick | 0.5mm | |
Nom.Dia | 2.7±0.10mm |
Nominal Impedance（ohm) | 50±2 | |
Nominal Velocity of propagation(%) | 66 | |
Nominal Capacitance(pf/m) | 100 | |
Spark Test(VAC) | 2500 | |
SRL(dB） | 50-300 | 23 |
300-1000 | 21 | |
Attenuation [68℉(20℃)] | Frequency（MHz） | Maximum(dB/100m) |
10 | 9.8 | |
100 | 31 | |
400 | 74 | |
1000 | 120 | |
2000 | 170 | |
3000 | 210 | |
