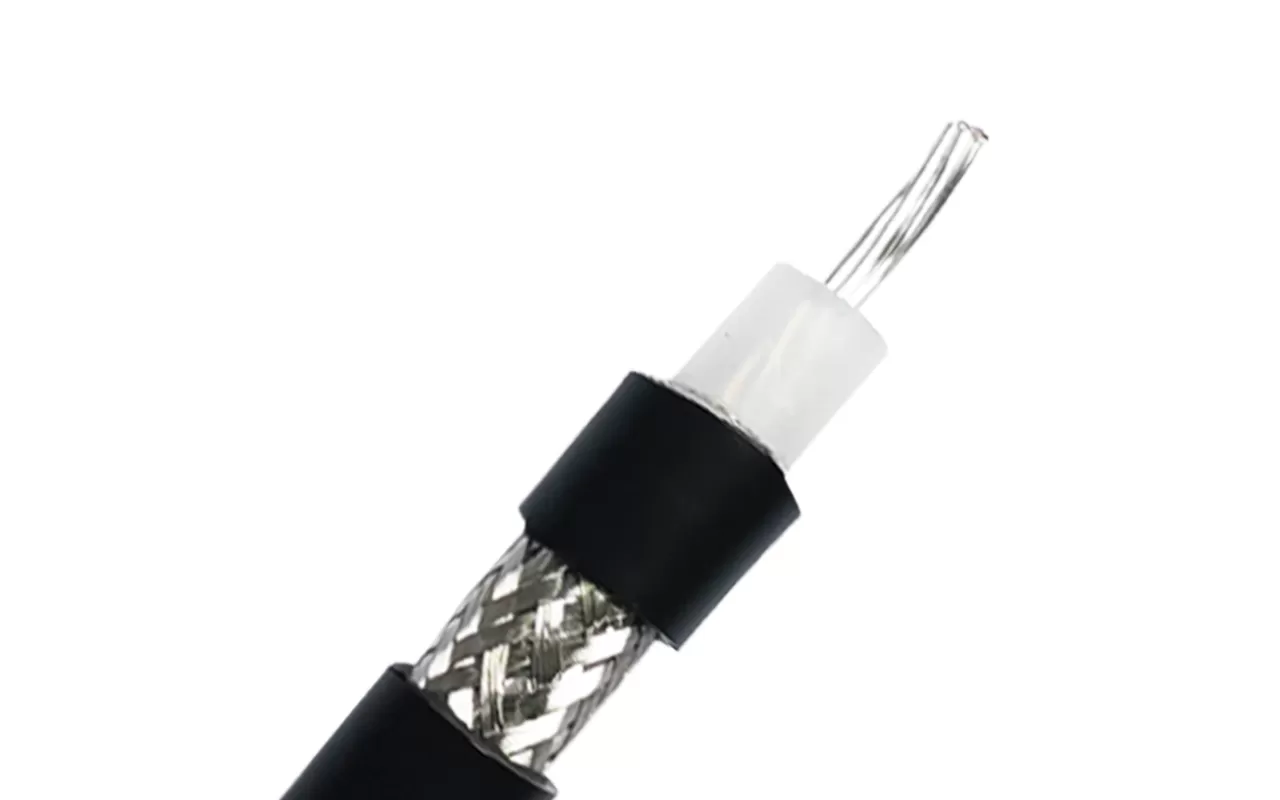

RG214 | ||
Conductor | MATERIAL | TC |
Nom.Dia | 13AWG | |
Dielectric | MATERIAL | PE |
Nom.Dia | 7.25mm | |
Shield | MATERIAL | TC Braiding |
COVERAGE | 96%-98% | |
Jacket | MATERIAL | PVC/PE |
Nom.Thick | ≥1.0mm | |
Nom.Dia | 10.80±0.10mm |
Nominal Impedance（ohm) | 50±2 | ||
Nominal Velocity of propagation(%) | 66 | ||
Nominal Capacitance(pf/m) | 100 | ||
Spark Test(VAC) | 5000 | ||
SRL(dB） | 30-470 | 20 | |
470-1000 | 20 | ||
Attenuation [68℉(20℃)] | Frequency（MHz） | Maximum(dB/100ft) | Maximum(dB/100m) |
10 | 1.8 | 2.03 | |
50 | 4.4 | 4.92 | |
100 | 6.8 | 6.9 | |
200 | 9.7 | 9.8 | |
400 | 15.1 | 15.7 | |
500 | 16.2 | 16.3. | |
600 | / | 18.6 | |
800 | 21.5 | 23 | |
1000 | 24.5 | 26.9 | |
