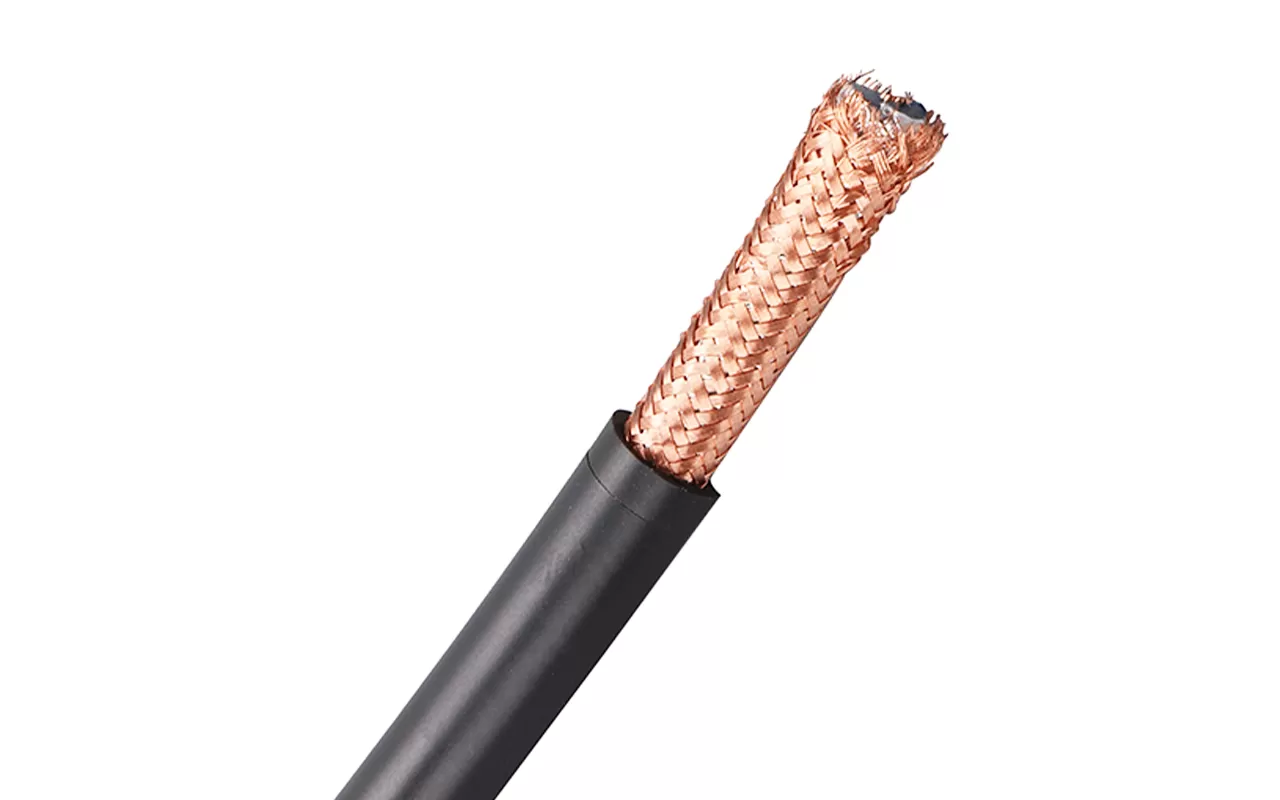

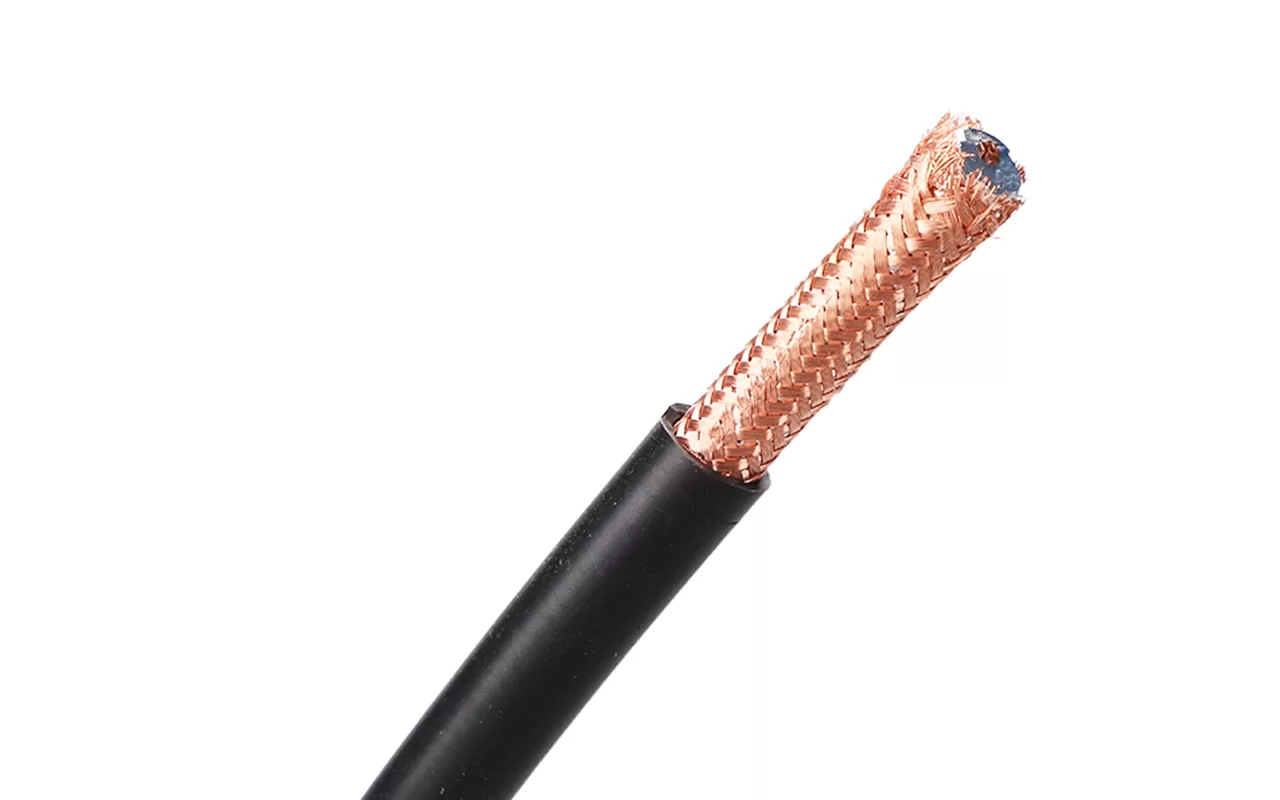

RG8 | ||
Conductor | MATERIAL | BC |
Nom.Dia | 10AWG | |
Dielectric | MATERIAL | Foam PE |
Nom.Dia | 7.25mm | |
Shield | MATERIAL | AL Foil+TC Braiding |
COVERAGE | 35%-75% | |
Jacket | MATERIAL | PE/PVC |
Nom.Thick | ≥1.0mm | |
Nom.Dia | 10.24mm |
Nominal Impedance（ohm) | 50±2 | |
Nominal Velocity of propagation(%) | 85 | |
Nominal Capacitance(pf/m) | 81 | |
Spark Test(VAC) | 4000 | |
SRL(dB） | 30-1000 | 20 |
1000-3000 | 20 | |
Attenuation [68℉(20℃)] | Frequency（MHz） | Maximum(dB/100m) |
10 | 1.64 | |
100 | 4.59 | |
400 | 8.52 | |
1000 | 14.43 | |
2000 | 21.31 | |
3000 | 27.21 | |
