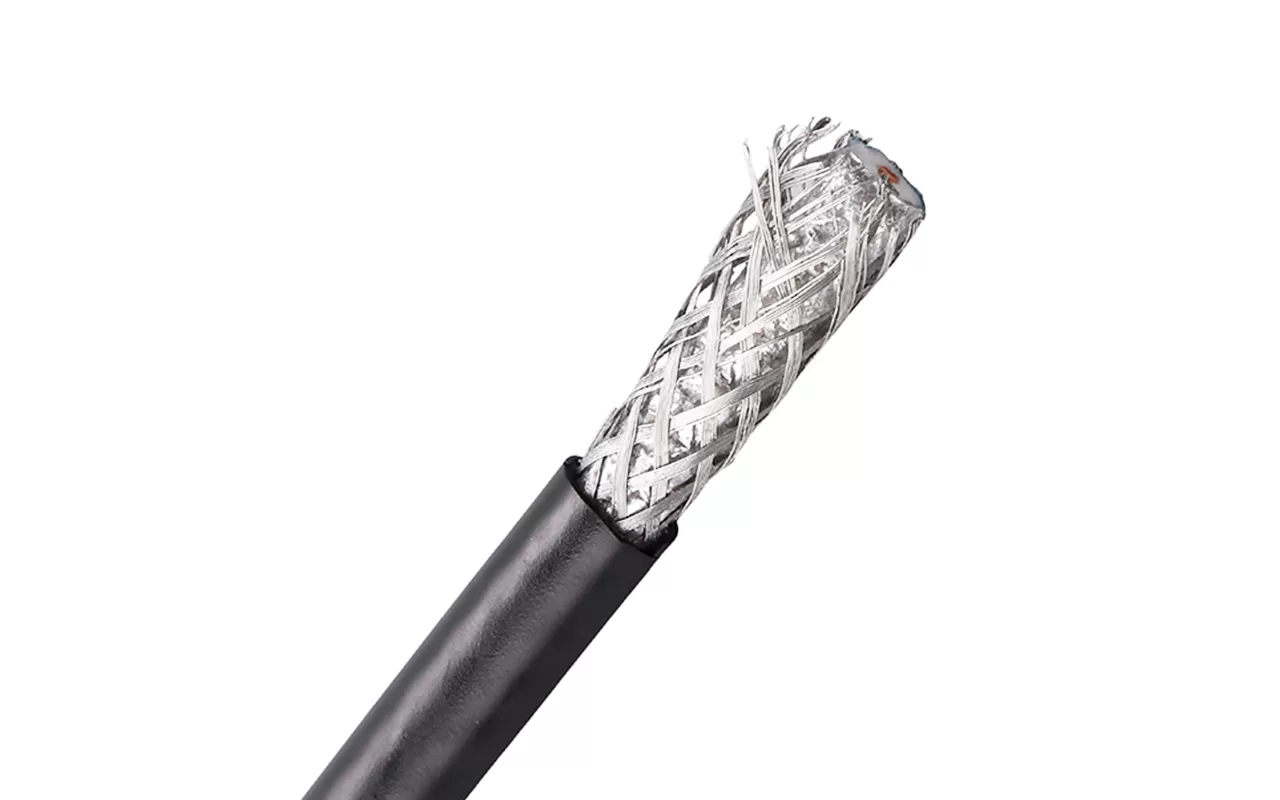

RG11 | ||
Conductor | MATERIAL | BC/CCS |
Nom.Dia | 14AWG | |
Dielectric | MATERIAL | Foam PE |
Nom.Dia | 7.11mm | |
Shield | MATERIAL | AL Foil+AL Braiding |
COVERAGE | 40%-95% | |
Jacket | MATERIAL | PVC/PE |
Nom.Thick | 1.07mm | |
Nom.Dia | 10.16mm |
Nominal Impedance（ohm) | 75±3 | ||
Nominal Velocity of propagation(%) | 85 | ||
Nominal Capacitance(pf/m) | 50 | ||
Spark Test(VAC) | 5000 | ||
SRL(dB） | 20 | 20 | |
Attenuation [68℉(20℃)] | Frequency（MHz） | Maximum(dB/100ft) | Maximum(dB/100m) |
55 | 0.96 | 3.15 | |
300 | 2.25 | 7.38 | |
450 | 2.75 | 9.02 | |
600 | 3.18 | 10.43 | |
750 | 3.65 | 11.9 | |
1000 | 4.35 | 14.27 | |
