Model:UL Solid U
Categories:Fire Alarm Cable
Certificates:UL, ETL, CE,CPR, RoHS
Length:100m,500m,500ft,1000ft
Packing:roll, wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 15 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C at sight, D/P at sight
Temperature Rating | -20℃ ~+60℃ |
Operating Voltage | 300 Volts max |
Capacitance | 42 pf/ft nom |
Impedance | 36 Ohms nom |
DC Resistance | 6.5 Ohms/M' at 20℃ |

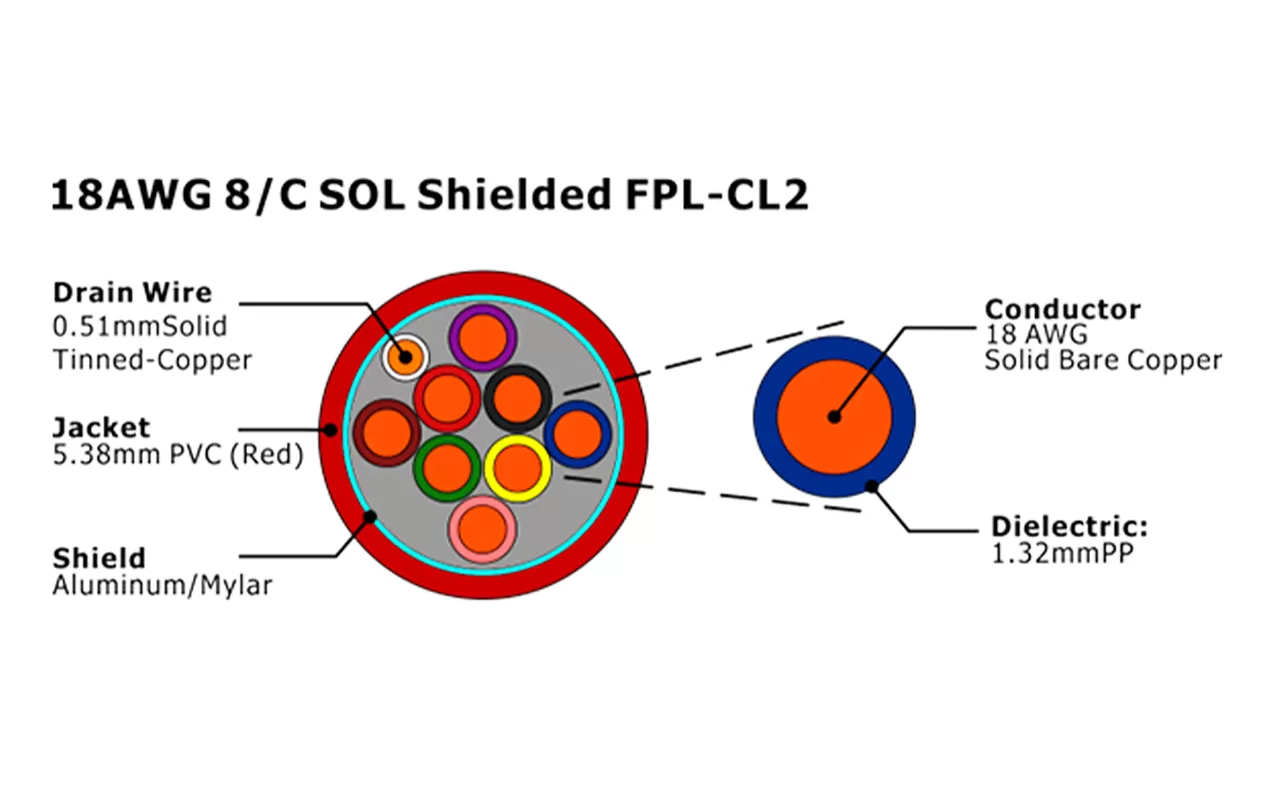

Conductor: | 18 AWG Solid Bare Copper | ||
Nom.Dia: | 0.04''(1.02mm) | ||
Dielectric: | Type: | FPL-PVC | |
Dia.over Dielectric： | 0.060±0.004''nom.(1.52±0.10mm) | ||
Drain Wire: | 0.51mm Solid Tinned-Copper | ||
Shield : | 0.001"(0.025mm) thick Aluminum/Mylar | ||
Color Code: | 1.black 2.Red 3.yellow 4.green 5.brown 6.blue 7.Purple 8.Pink | ||
Jacket: | Type: | FPL-PVC | |
Color: | Red | ||
Dia.over Jacket: | 0.227''±0.006''(5.78±0.15mm) | ||
Package | 100M/Reel,200M/Reel,500M/Wooden Spool |
Delivery time | Normally 15 days after received the deposit. |
