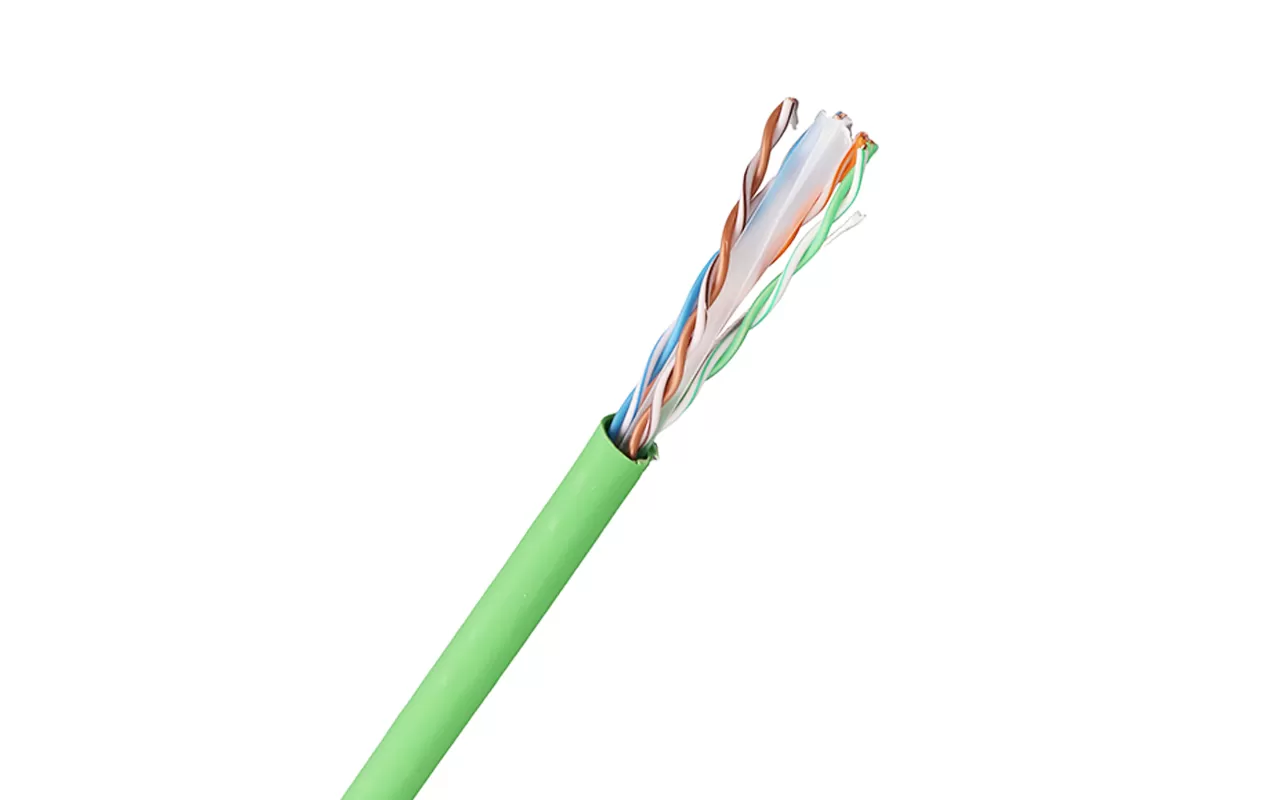

Conductor: 23 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen Free or PVC Jacket available
RoHS, REACH, UL compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
BS EN 50288
IEC 61156
- Premise Horizontal Cable
- Ethernet up to 10GBASE-T
- PoE++, PoE+, PoE
- Data Center EoR and MoR
- Network Backbone
- HDBaseT, HDBaseT 4K UHD
-Conductor Resistance (20℃)≤7.3 Ω/ 100m
-Electrical Resistance Unbalance ( 20℃)≤2.5 %
-Insulation Resistance>5000 MΩ·km
-Mutual capacitance of a pair≤5.6nF/100m
Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue, White-Orange/Orange White-Green/Green, White-Brown/Brown |
Individual pair shield | NONE |
Overall shield | NONE |
Drain wire | Tinned copper |
Cross Filler | 1 |
ltem | Outer Jacket | Overall diameter(mm) |
XF-U-06a-01 | CMX | 6.9 ±0.2 |
XF-U-06a-02 | CM | 6.9 ±0.2 |
XF-U-06a-03 | CMR | 6.9 ±0.2 |
XF-U-06a-04 | LSZH | 6.9 ±0.2 |
XF-U-06a-05 | LDPE | 6.9 ±0.2 |
XF-U-06a-06 | PVC | 6.9 ±0.2 |
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min.Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] | Min. PSANEXT [dB] | Min. PSAACRF [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
1 | 2.1 dB/100m | 75.3 | 73.2 | 74.8 | 20.0 | 100 ± 15 | 105 ± 10 | 75.0 | 77.0 | 40.0 | 35.0 |
4 | 3.8 dB/100m | 66.3 | 62.5 | 62.8 | 23.0 | 100 ± 15 | 100 ± 15 | 75.0 | 76.2 | 40.0 | 23.0 |
8 | 5.3 dB/100m | 61.8 | 56.5 | 56.7 | 24.5 | 100 ± 15 | 100 ± 15 | 75.0 | 70.1 | 40.0 | 16.9 |
10 | 5.9 dB/100m | 60.3 | 54.4 | 54.8 | 25.0 | 100 ± 15 | 100 ± 15 | 75.0 | 68.2 | 40.0 | 15.0 |
16 | 7.4 dB/100m | 57.2 | 49.8 | 50.7 | 25.0 | 100 ± 15 | 100 ± 15 | 75.0 | 64.1 | 38.0 | 10.9 |
20 | 8.3 dB/100m | 55.8 | 47.5 | 48.8 | 25.0 | 100 ± 15 | 100 ± 15 | 75.0 | 62.2 | 37.0 | 9.0 |
25 | 9.3 dB/100m | 54.3 | 45.0 | 46.8 | 24.3 | 100 ± 15 | 100 ± 15 | 75.0 | 60.2 | 36.0 | 7.0 |
31.25 | 10.4 dB/100m | 52.9 | 42.5 | 44.9 | 23.6 | 100 ± 15 | 100 ± 10 | 75.0 | 58.3 | 35.1 | 5.1 |
62.5 | 14.8 dB/100m | 48.4 | 33.6 | 38.9 | 21.5 | 100 ± 15 | 100 ± 10 | 73.6 | 52.3 | 32.0 | |
100 | 18.9 dB/100m | 45.3 | 26.4 | 34.8 | 20.1 | 100 ± 15 | 100 ± 10 | 70.5 | 48.2 | 30.0 | |
200 | 27.0 dB/100m | 40.8 | 13.8 | 28.8 | 18.0 | 100 ± 22 | 100 ± 10 | 66.0 | 42.2 | 27.0 | |
250 | 30.4 dB/100m | 39.3 | 9.0 | 26.8 | 17.3 | 100 ± 32 | 100 ± 10 | 64.5 | 40.2 | 26.0 | |
300 | 33.5 dB/100m | 38.1 | 4.6 | 25.3 | 16.8 | 100 ± 32 | 100 ± 10 | 63.3 | 38.7 | 25.2 | |
350 | 36.3 dB/100m | 37.1 | 0.8 | 23.9 | 16.3 | 100 ± 32 | 100 ± 10 | 62.3 | 37.3 | 24.6 | |
400 | 39.0 dB/100m | 36.3 | 22.8 | 15.9 | 100 ± 32 | 100 ± 10 | 61.5 | 36.2 | 24.0 | ||
450 | 41.5 dB/100m | 35.5 | 21.7 | 15.5 | 100 ± 32 | 100 ± 10 | 60.7 | 35.1 | 23.5 | ||
500 | 43.9 dB/100m | 34.8 | 20.8 | 15.2 | 100 ± 32 | 100 ± 10 | 60.0 | 34.2 | 23.0 | ||
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | |||||||||||
