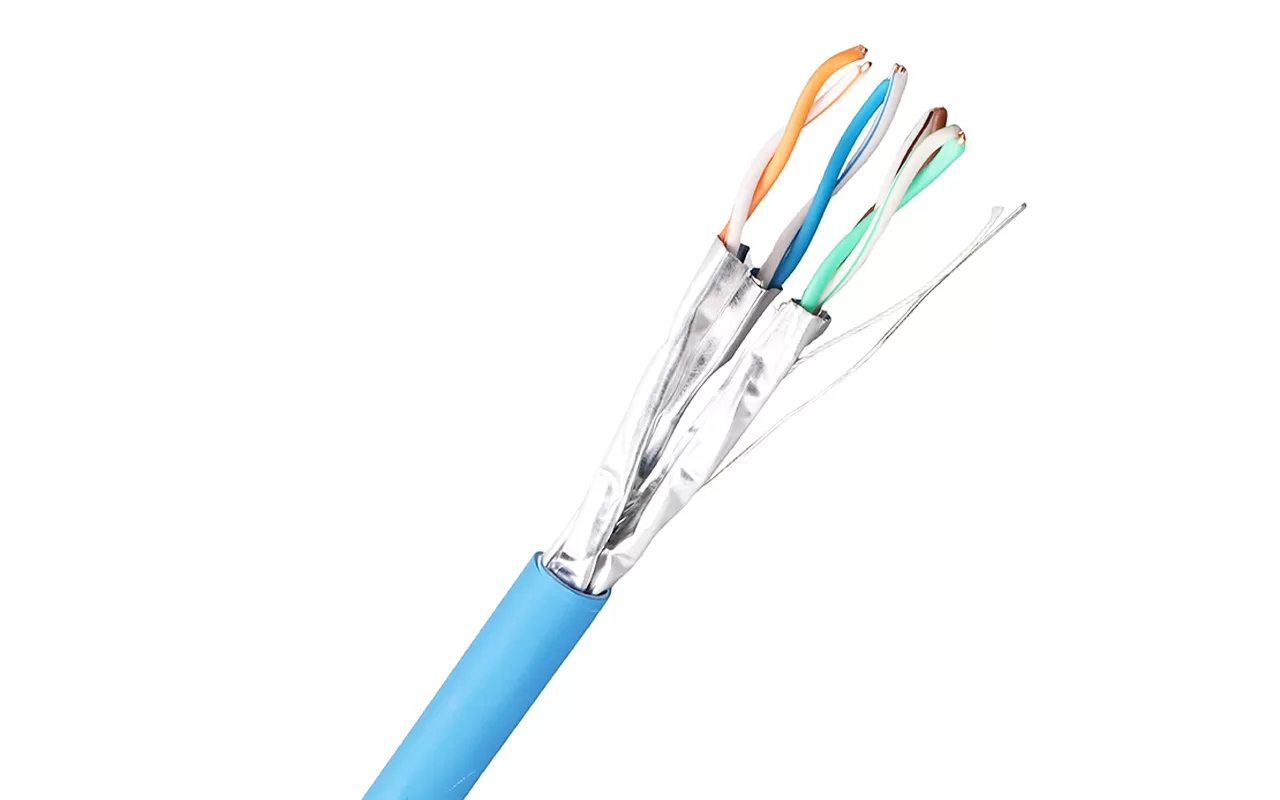

Conductor: 23 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen-free or PVC Jacket available
RoHS, REACH, UL compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
BS EN 50288
IEC 61156
- Horizontal and building backbone cable
-Support current and future Category 6 and 5e applications, like 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM
-Conductor Resistance (20℃)≤7.3 Ω/ 100m
-Electrical Resistance Unbalance ( 20℃)≤2.5 %
-Insulation Resistance>5000 MΩ·km
-Mutual capacitance of a pair≤5.6nF/100m

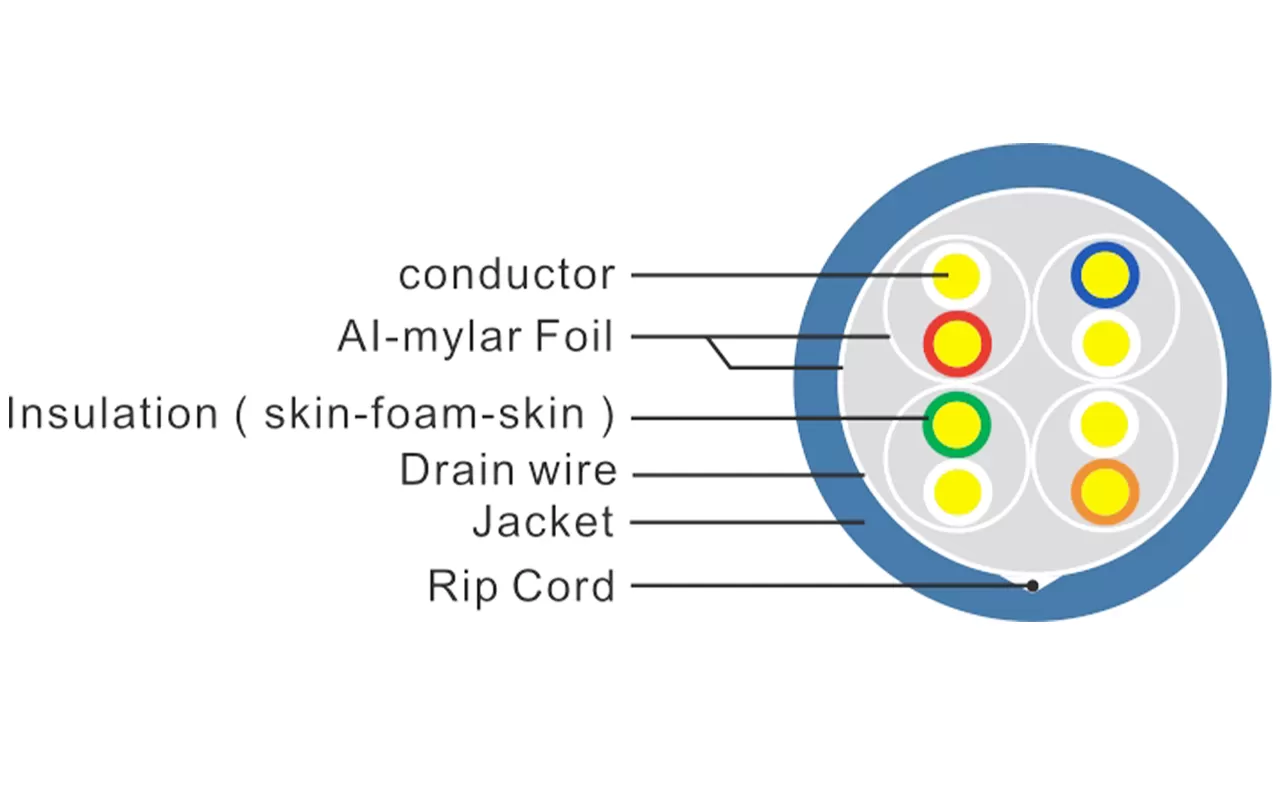

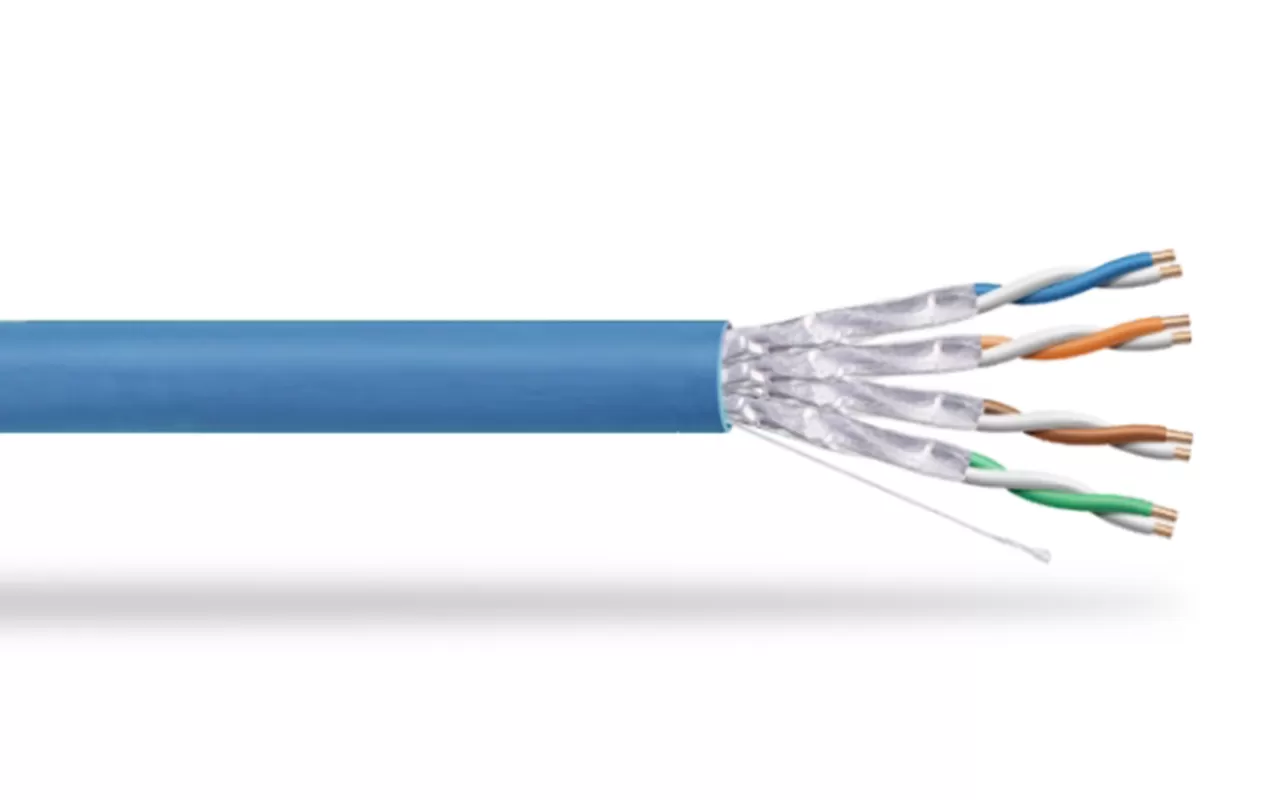

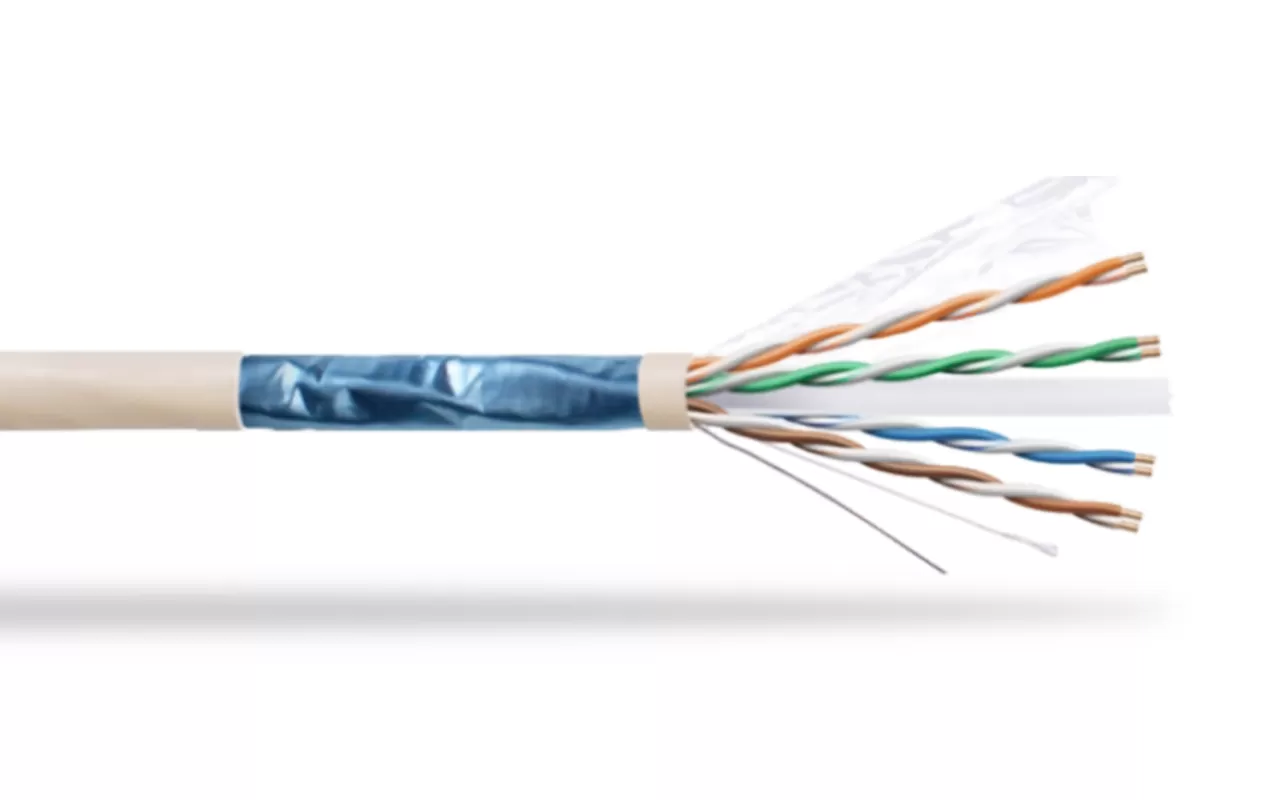

Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue, White-Orange/Orange White-Green/Green. White-Brown/Brown |
Individual pair shield | NONE |
Overall shield | Aluminum foil, providing 100% coverage, foil face out |
Drain wire | Tinned copper |
Cross Filler | NONE |
ltem | Outer Jacket | Overall diameter(mm) |
XF-UF-06a-01 | CMX | 7.6 ±0.3 |
XF-UF-06a-02 | CM | 7.6 ±0.3 |
XF-UF-06a-03 | CMR | 7.6 ±0.3 |
XF-UF-06a-04 | LSZH | 7.6 ±0.3 |
XF-UF-06a-05 | LDPE | 7.6 ±0.3 |
XF-UF-06a-06 | PVC | 7.6 ±0.3 |
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. PSANEXT [dB] | Min. PSAACRF [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
1 | 2.1 ns/100m | 75.3 | 72.3 | 73.2 | 70.2 | 68 | 65 | 20 | 67 | 67 | 40 | 35 |
4 | 3.8 ns/100m | 66.3 | 63.3 | 62.5 | 59.5 | 56 | 53 | 23 | 67 | 66.2 | 34 | 23 |
10 | 5.9 ns/100m | 60.3 | 57.3 | 54.4 | 51.4 | 48 | 45 | 25 | 67 | 58.2 | 30 | 15 |
16 | 7.5 ns/100m | 57.2 | 54.2 | 49.8 | 46.8 | 43.9 | 40.9 | 25 | 67 | 54.1 | 28 | 10.9 |
31.2 | 10.5 ns/100m | 52.9 | 49.9 | 42.4 | 39.4 | 38.1 | 35.1 | 23.6 | 67 | 48.3 | 25.1 | 5.1 |
62.5 | 15 dB/100m | 48.4 | 45.4 | 33.4 | 30.4 | 32.1 | 29.1 | 21.5 | 65.6 | 42.3 | 22 | |
100 | 19.1 dB/100m | 45.3 | 42.3 | 26.2 | 23.2 | 28 | 25 | 20.1 | 62.5 | 38.2 | 20 | |
125 | 21.5 dB/100m | 43.8 | 40.8 | 22.3 | 19.3 | 26.1 | 23.1 | 19.4 | 61 | 36.3 | 19 | |
200 | 27.6 dB/100m | 40.8 | 37.8 | 13.2 | 10.2 | 22 | 19 | 18 | 58 | 32.2 | 17 | |
250 | 31.1 dB/100m | 39.3 | 36.3 | 8.3 | 5.3 | 20 | 17 | 17.3 | 56.5 | 30.2 | 16 | |
300 | 34.3 dB/100m | 38.1 | 35.1 | 3.9 | 0.9 | 18.5 | 15.5 | 17.3 | 55.3 | 28.7 | ||
500 | 45.3 dB/100m | 34.8 | 31.8 | -10.4 | -13.4 | 14 | 11 | 17.3 | 52 | 24.2 | ||
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | ||||||||||||
