Conductor: 24 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen-free or PVC Jacket available
RoHS, REACH compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
BS EN 50288
IEC 61156
- Horizontal and building backbone cable
- Support current and future Category 5e applications, LIKE 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM
-Conductor Resistance (20℃)≤9.38 Ω/ 100m
-Electrical Resistance Unbalance ( 20℃)≤2.5 %
-Insulation Resistance>5000 MΩ·km
-Mutual capacitance of a pair≤5.6nF/100m
Conductor | Solid Bare Copper 24AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue,White-Orange/Orange White-Green/Green.White-Brown/Brown |

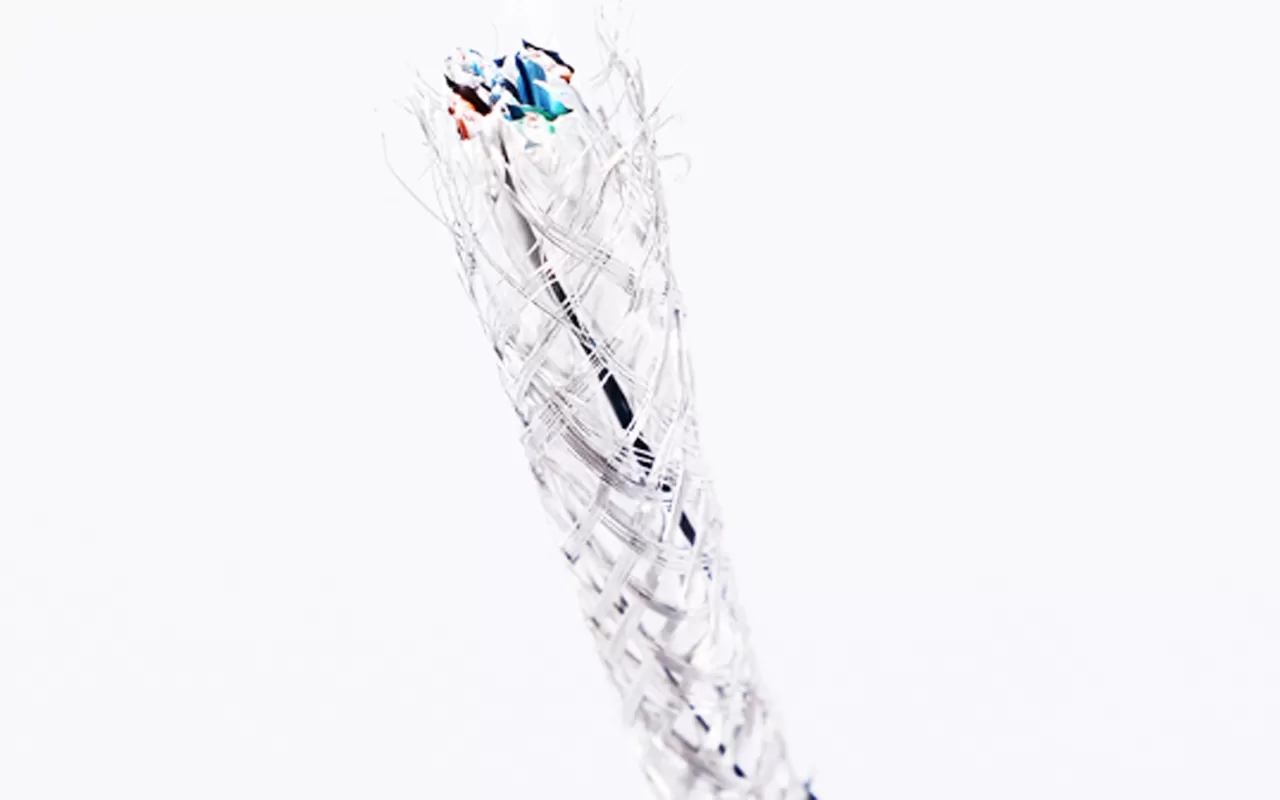

Individual pair shield | Aluminum foil,providing 100% coverage,foil face out |
Overall shield | Tinned copper braid |
Drain wire | Tinned copper |
ltem | Outer Jacket | Overall diameter(mm) | ||||||||
XF-SF-05e-01 | CMX | 6.7 ±0.3 | ||||||||
XF-SF-05e-02 | CM | 6.7 ±0.3 | ||||||||
XF-SF-05e-03 | CMR | 6.7 ±0.3 | ||||||||
XF-SF-05e-04 | LSZH | 6.7 ±0.3 | ||||||||
XF-SF-05e-05 | LDPE | 6.7 ±0.3 | ||||||||
XF-SF-05e-06 | PVC | 6.7 ±0.3 | ||||||||
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss)[dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] |
1 | 2.1 dB/100m | 65.3 | 62.3 | 63.2 | 60.2 | 64 | 61 | 20 | 40 | 35 |
4 | 4 dB/100m | 56.3 | 53.3 | 52.32 | 49.3 | 52 | 49 | 23 | 34 | 23 |
10 | 6.3 dB/100m | 50.3 | 47.3 | 44 | 41 | 44 | 41 | 25 | 30 | 15 |
16 | 8 dB/100m | 47.2 | 44.2 | 39.2 | 36.2 | 39.9 | 36.9 | 25 | 28 | 10.9 |
20 | 9 dB/100m | 45.8 | 42.8 | 36.8 | 33.8 | 38 | 35 | 25 | 27 | 9 |
31.25 | 11.4 dB/100m | 42.9 | 39.9 | 31.5 | 28.5 | 34.1 | 31.5 | 23.6 | 25.1 | 5.5 |
62.5 | 16.5 dB/100m | 38.4 | 35.4 | 21.9 | 18.9 | 28.1 | 25.1 | 21.5 | 22 | |
100 | 21.3 dB/100m | 35.3 | 32.3 | 14 | 11 | 24 | 21 | 20.1 | 20 | |
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | ||||||||||
