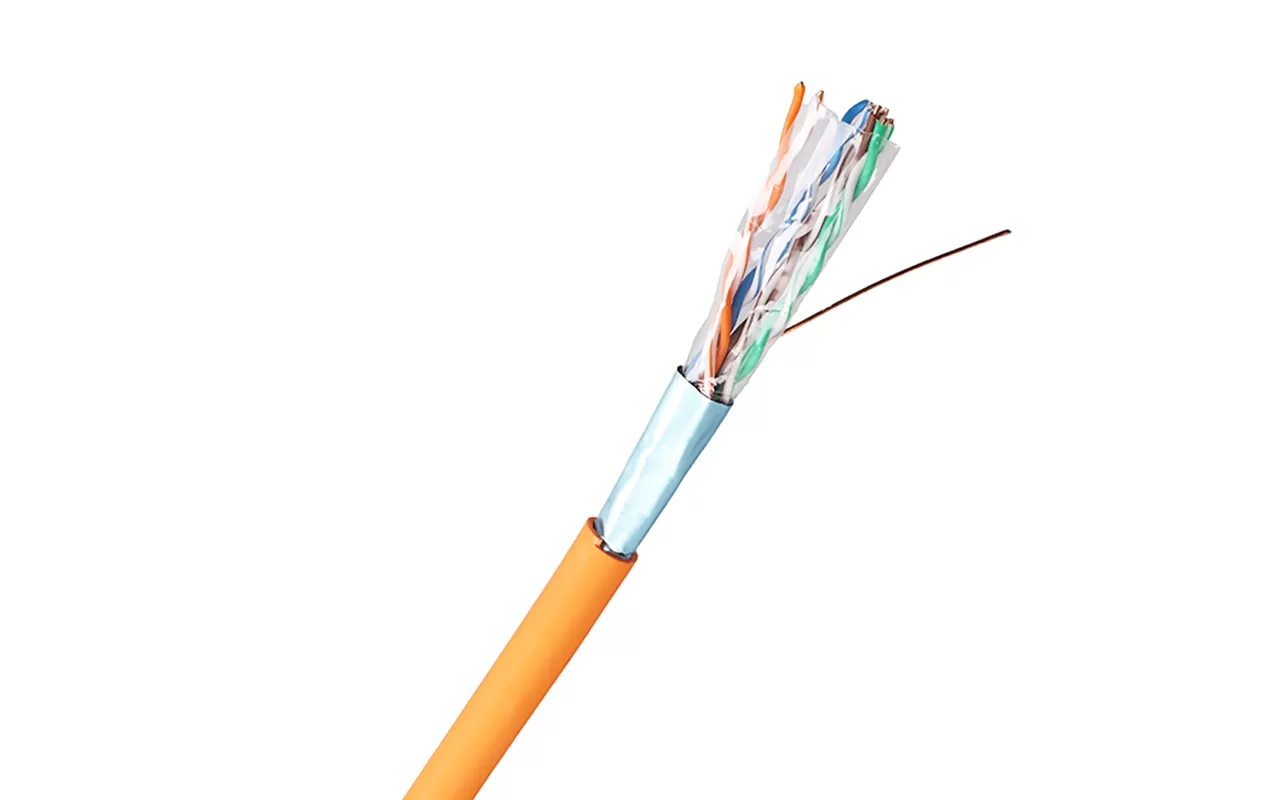

Conductor: 24 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen-free or PVC Jacket available
RoHS, REACH compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
Premise Horizontal Cable
Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T
PoE++, PoE+, PoE
Noisy Environments
Conductor Resistance (20℃)≤9.38 Ω/ 100m
Electrical Resistance Unbalance ( 20℃)≤2.5 %
Insulation Resistance>5000 MΩ·km
Mutual capacitance of a pair≤5.6nF/100m

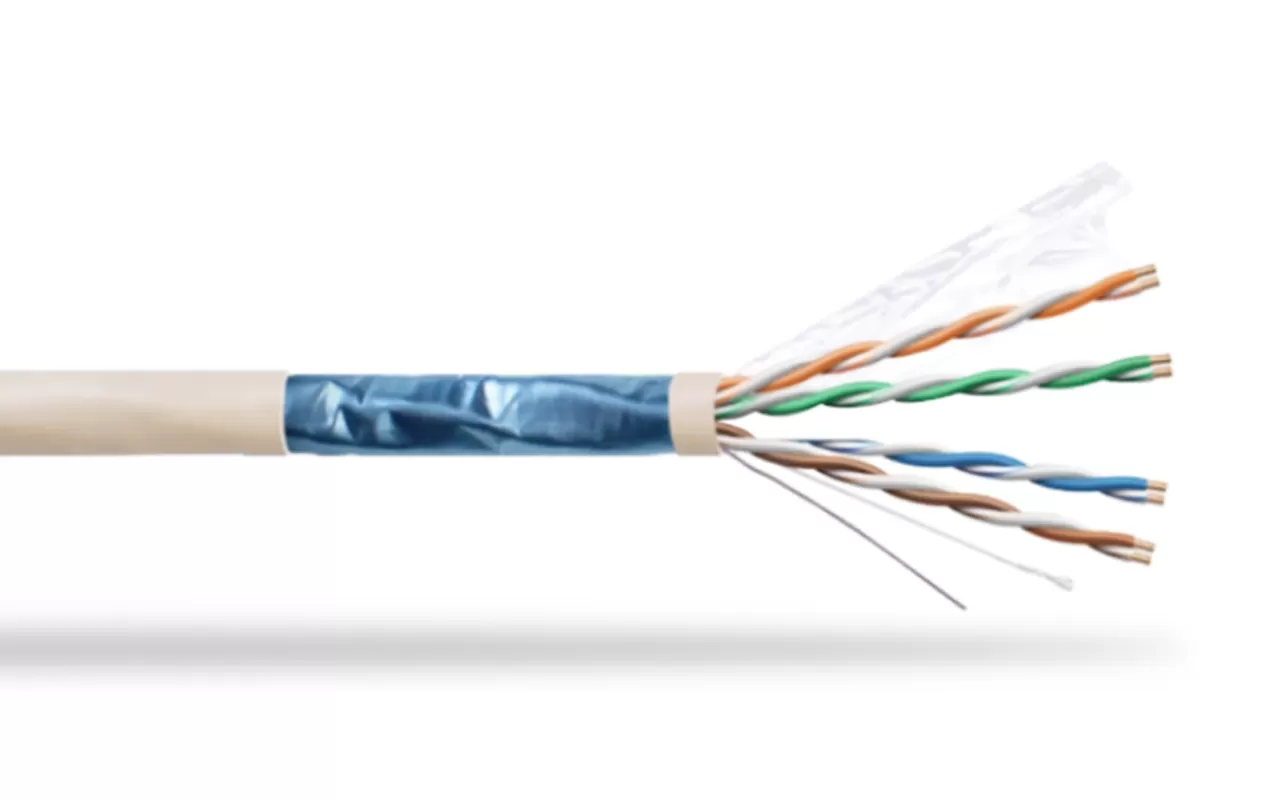

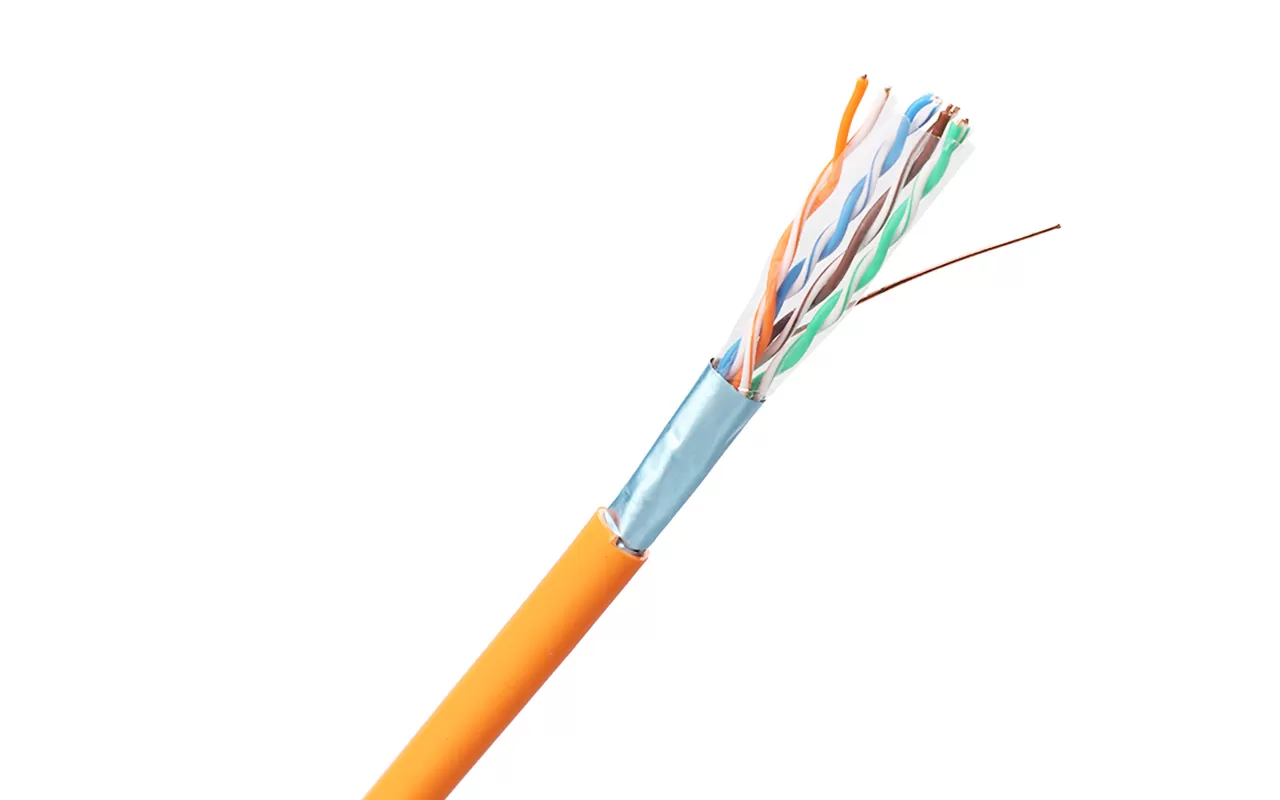

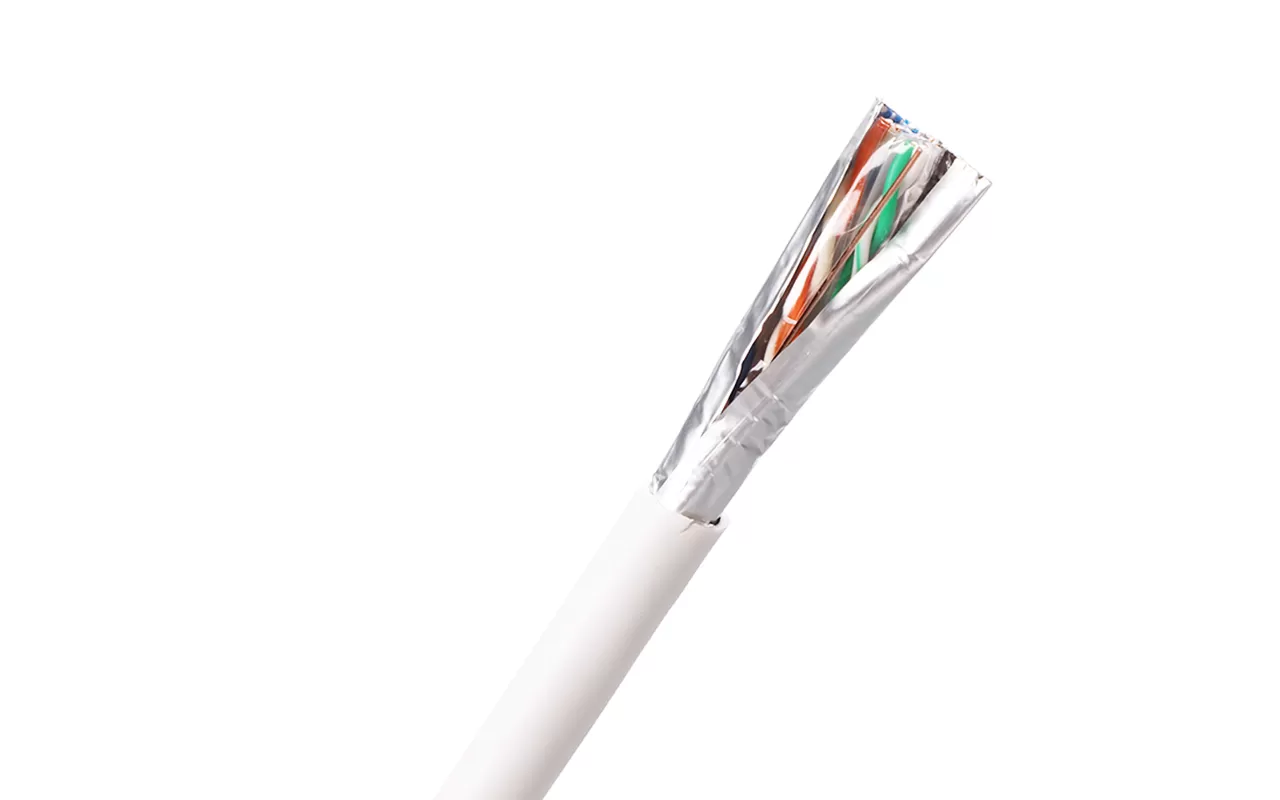

Conductor | Solid Bare Copper 24AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue, White-Orange/Orange White-Green/Green. White-Brown/Brown |
Individual pair shield | NONE |
Overall shield | Aluminum foil, providing 100% coverage, foil face out |
Drain wire | Tinned copper |
ltem | Outer Jacket | Overall diameter(mm) |
XF-F-05e-01 | CMX | 6.1±0.2 |
XF-F-05e-02 | CM | 6.1±0.2 |
XF-F-05e-03 | CMR | 6.1±0.2 |
XF-F-05e-04 | LSZH | 6.1±0.2 |
XF-F-05e-05 | LDPE | 6.1±0.2 |
XF-F-05e-06 | PVC | 6.1±0.2 |
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss)[dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] |
1 | 2.0 dB/100m | 70.3 | 68.3 | 70.3 | 66.3 | 67.8 | 64.8 | 20.0 | 100 ± 15 | 100 ± 15 |
4 | 4.0 dB/100m | 61.3 | 59.3 | 59.3 | 55.3 | 55.8 | 52.8 | 23.0 | 100 ± 15 | 100 ± 15 |
8 | 5.7 dB/100m | 56.8 | 54.8 | 53.1 | 49.1 | 49.7 | 46.7 | 24.5 | 100 ± 15 | 100 ± 15 |
10 | 6.4 dB/100m | 55.3 | 53.3 | 50.9 | 46.9 | 47.8 | 44.8 | 25.0 | 100 ± 15 | 100 ± 15 |
16 | 8.1 dB/100m | 52.2 | 50.2 | 46.1 | 42.1 | 43.7 | 40.7 | 25.0 | 100 ± 15 | 100 ± 15 |
20 | 9.1 dB/100m | 50.8 | 48.8 | 43.7 | 39.7 | 41.8 | 38.8 | 25.0 | 100 ± 15 | 100 ± 15 |
25 | 10.2 dB/100m | 49.3 | 47.3 | 41.1 | 37.1 | 39.8 | 36.8 | 24.3 | 100 ± 15 | 100 ± 15 |
31.25 | 11.4 dB/100m | 47.9 | 45.9 | 38.5 | 34.5 | 37.9 | 34.9 | 23.6 | 100 ± 15 | 100 ± 15 |
62.5 | 16.4 dB/100m | 43.4 | 41.4 | 29.0 | 25.0 | 31.9 | 28.9 | 21.5 | 100 ± 15 | 100 ± 15 |
100 | 21.0 dB/100m | 40.3 | 38.3 | 21.3 | 17.3 | 27.8 | 24.8 | 20.1 | 100 ± 15 | 100 ± 15 |
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | ||||||||||
