Model:UL Solid U
Categories:Fire Alarm Cable
Certificates:UL, ETL, CE,CPR, RoHS
Length:100m,500m,500ft,1000ft
Packing:roll, wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 15 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C at sight, D/P at sight
Temperature Rating | -20℃ ~ +60℃ |
Operating Voltage | 300 Volts max |
Capacitance | 21 pf/ft nom |
Impedance | 96 Ohms nom |
DC Resistance | 3.9 Ohms/M' at 20℃ |

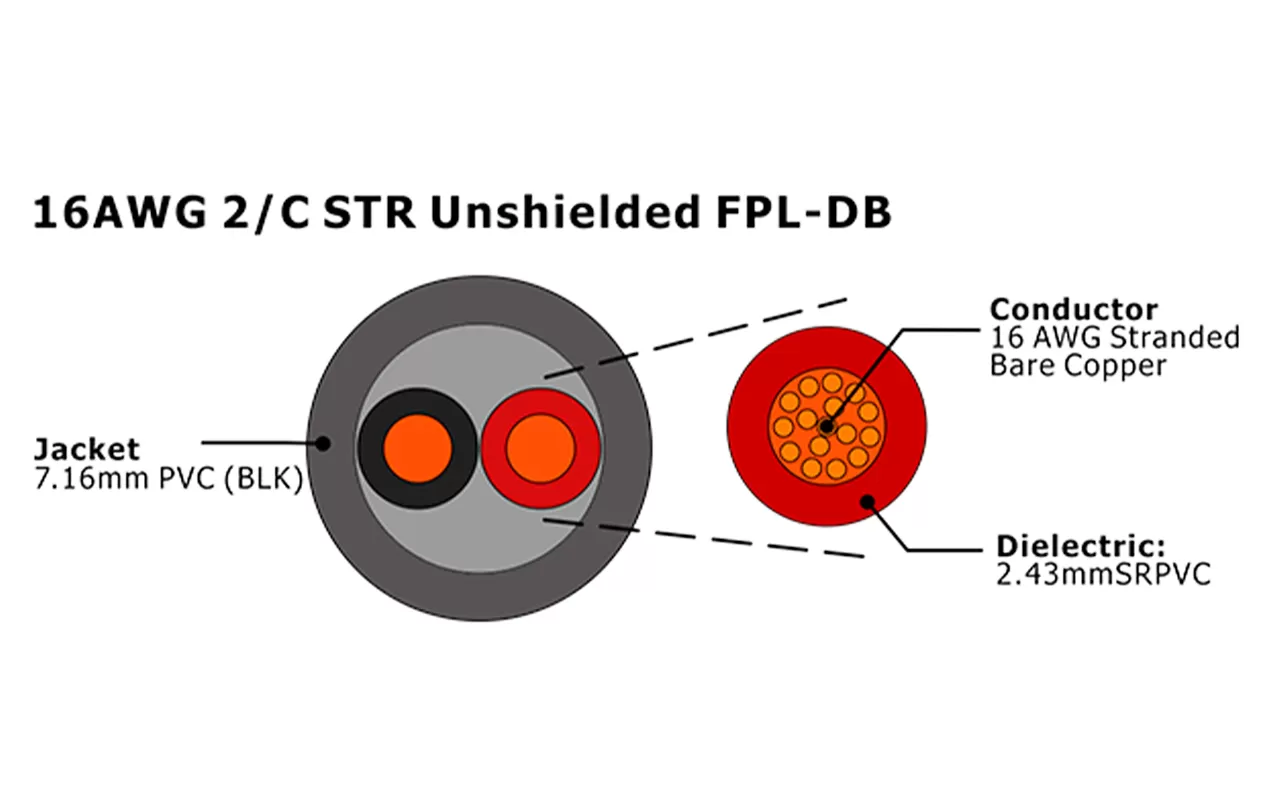

Conductor: | 16AWG Stranded Bare Copper 16 AWG : 7/24, 65/34, 26/30, 19/29, 105/36 | ||
Nom.Dia: | 0.051''(1.29mm) | ||
Dielectric: | Type: | SRPVC | |
Dia.over Dielectric： | 0.096"±0.004''nom.(2.43±0.10mm) | ||
Color Code: | 1.black 2.Red | ||
Jacket: | Type: | PVC (DB-Directly Bury) | |
Color: | Black | ||
Dia.over Jacket: | 0.282''±0.006''(7.16±0.15mm) | ||
Package | 100M/Reel,200M/Reel,500M/Wooden Spool |
Delivery time | Normally 15 days after received the deposit. |
