Model:UL Solid U
Categories:Fire Alarm Cable
Certificates:UL, ETL, CE,CPR, RoHS
Length:100m,500m,500ft,1000ft
Packing:roll, wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 15 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C at sight, D/P at sight
Temperature Rating | -20℃ ~ +75℃ |
Operating Voltage | 300 Volts max |
Capacitance | 18 pf/ft nom |
Impedance | 82 Ohms nom |
DC Resistance | 2.54 Ohms/M' at 20℃ |

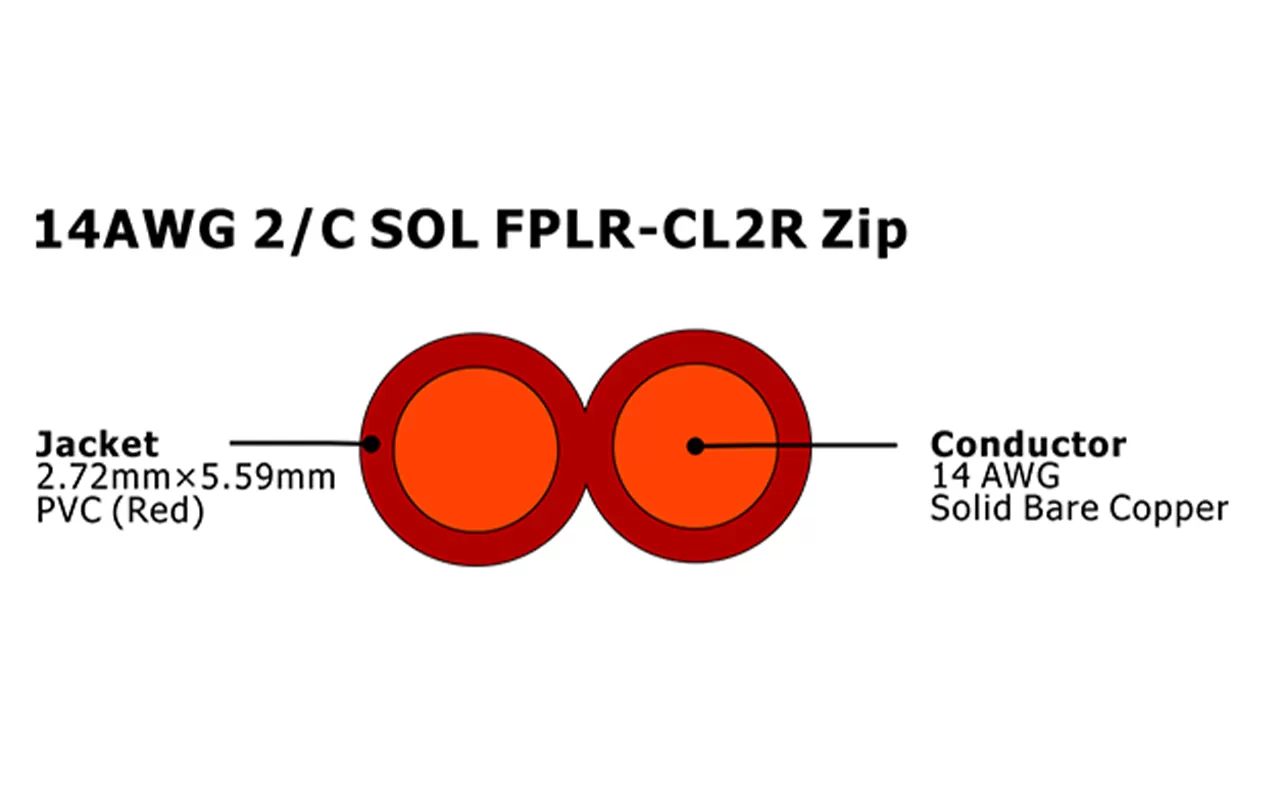

Conductor: | 14AWG Solid Bare Copper | ||
Nom.Dia: | 0.064''(1.63mm) | ||
Dielectric: | Type: | PVC | |
Dia.over Dielectric： | 0.088±0.004''nom.(2.25±0.10mm) | ||
Color Code: | 1. Red 2.Red | ||
Jacket: | Type: | PVC | |
Color: | Red | ||
Dia.over Jacket: | 0.107" x 0.220" (2.72mm×5.59mm PVC) | ||
Package | 100M/Reel,200M/Reel,500M/Wooden Spool |
Delivery time | Normally 15 days after received the deposit. |
