Conductor: 22AWG Bare Solid Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen Free or PVC Jacket available
RoHS, REACH compliant
ISO/IEC 11801
UL/CSA Listed CM XMR
ANSI/TIA-568-C.2-1
-Suitable for structured premises cabling.
-For transmission of digital and analogue voice and data signals.
-Especially suitable for all Class FA applications.
-ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T. Gigabit Ethernet 1000Base-T.
-10G Base-T:(IEEE 802.3).The maximum reach for 25G BASE-T/40G BASE-T
-Impedance: 4~100MHz 100+/-15Ω，
100~250MHz 100+/-22Ω，
250~2000MHz 100+/-25Ω
-Max.Conductor DC Resistance 20°C：8.4（ohms/100m）
-Resistance Unbalance(%):Max 2.5.
-(Pair to Ground Capacitance Unbalance):330(pF/100m).
-Transfer Impendance:Max 10 mohms/m@100Mhz.
-Coupling Attenuation:Min 80db.
-Installation temperature:0-50°C
-Coperation temperature：-20-60°C

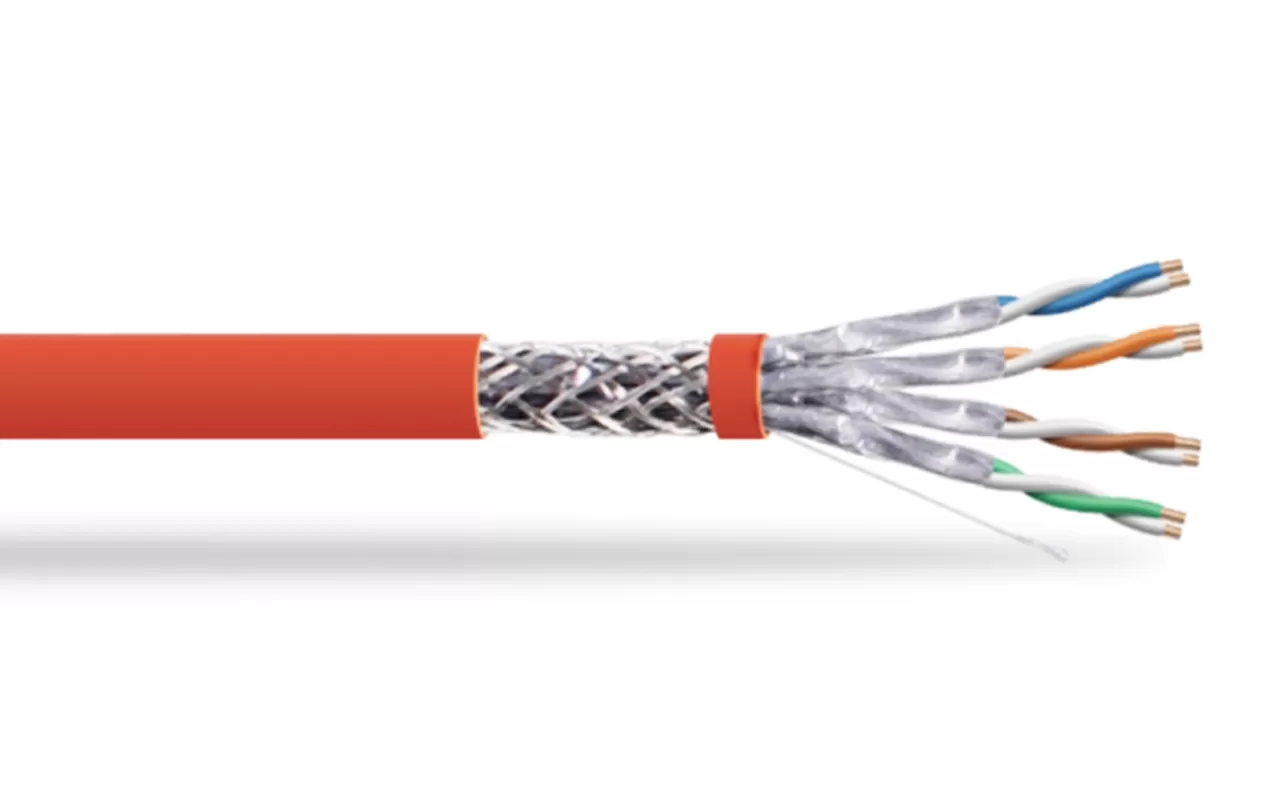

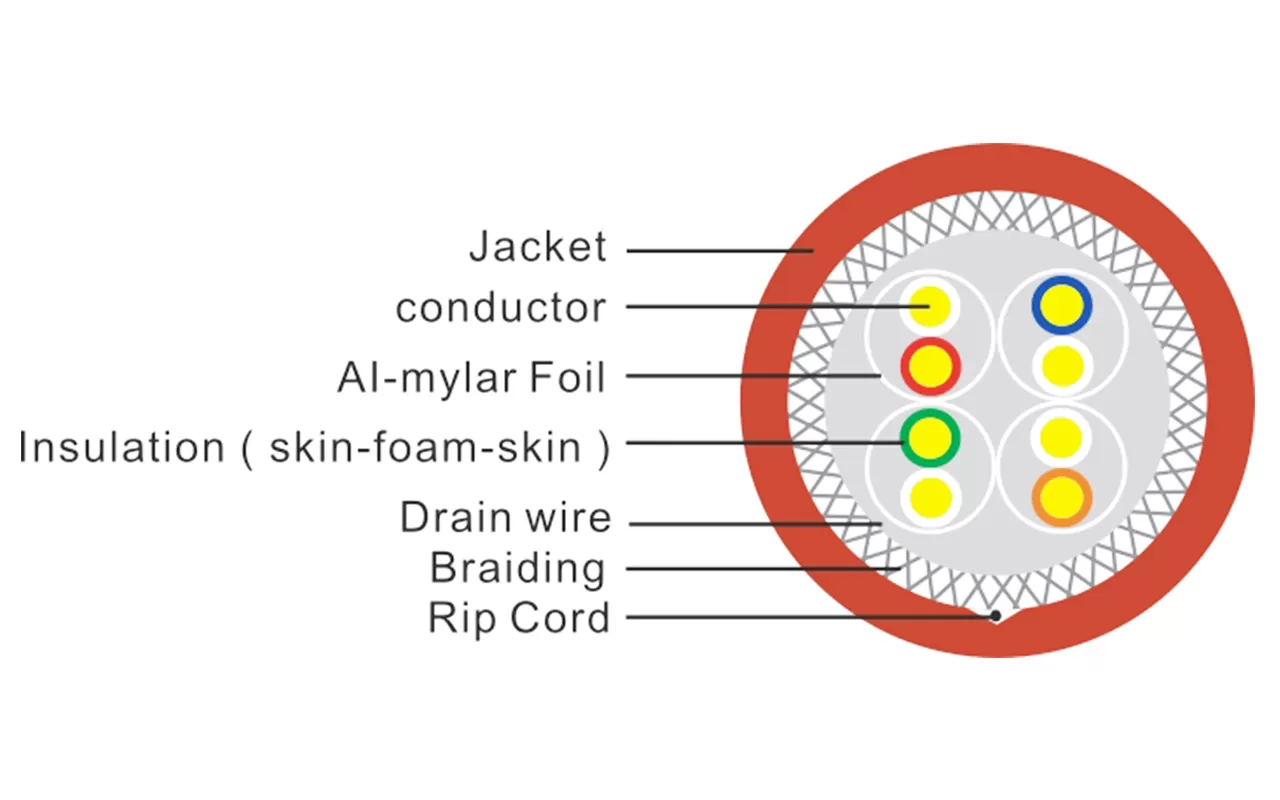

Conductor | Solid Bare Copper 23AWG |
Insulation | PE(Skin-Foam-Skin) |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue, White-Orange/Orange White-Green/Green. White-Brown/Brown |
Individual pair shield | aluminum foil, providing 100% coverage, foil face out |
Overall shield | Tinned copper braid |
Drain wire | Tinned copper |
ltem | Outer Jacket | Overall diameter(mm) |
XF-SF-07-01 | CMX | 8.0±0.3 |
XF-SF-08-02 | CM | 8.0±0.3 |
XF-SF-08-03 | CMR | 8.0±0.3 |
XF-SF-08-04 | LSZH | 8.0±0.3 |
XF-SF-08-05 | LDPE | 8.0±0.3 |
XF-SF-08-06 | PVC | 8.0±0.3 |
Frequency | Insertion Loss | NEXT | PSNEXT | RL | Delay |
（Mhz） | MAX. (dB/100M) | MIN.(dB) | MIN.(dB) | (dB) | MAX. (dB/100M) |
4 | 3.7 | 78.0 | 75.0 | 23.0 | 25 |
8 | 5.2 | 78.0 | 75.0 | 24.5 | 25 |
10 | 5.8 | 78.0 | 75.0 | 25.0 | 25 |
16 | 7.3 | 78.0 | 75.0 | 25.0 | 25 |
20 | 8.2 | 78.0 | 75.0 | 25.0 | 25 |
25 | 9.2 | 78.0 | 75.0 | 24.3 | 25 |
31.25 | 10.3 | 78.0 | 75.0 | 23.6 | 25 |
62.5 | 14.6 | 75.5 | 72.5 | 21.5 | 25 |
100 | 18.5 | 72.4 | 69.4 | 20.1 | 25 |
200 | 26.5 | 67.9 | 64.9 | 18.0 | 25 |
250 | 29.7 | 66.4 | 63.4 | 17.3 | 25 |
300 | 32.7 | 65.2 | 62.2 | 17.3 | 25 |
400 | 38.0 | 63.4 | 60.4 | 17.3 | 25 |
500 | 42.8 | 61.9 | 58.9 | 17.3 | 25 |
600 | 47.1 | 60.7 | 57.7 | 17.3 | 25 |
700 | 51.1 | 59.7 | 56.7 | na | 25 |
800 | 54.9 | 58.9 | 55.9 | na | 25 |
900 | 58.5 | 58.1 | 55.1 | na | 25 |
1000 | 61.9 | 57.4 | 54.4 | na | 25 |
