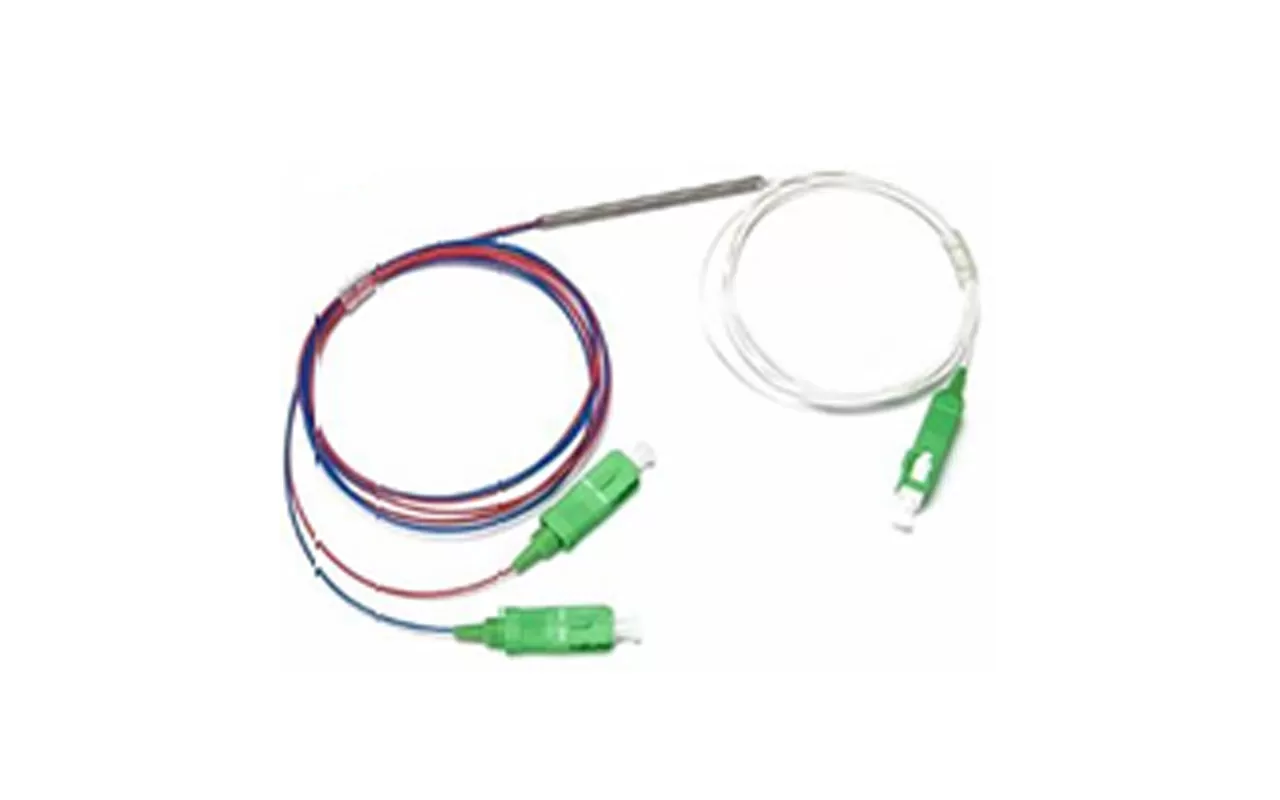

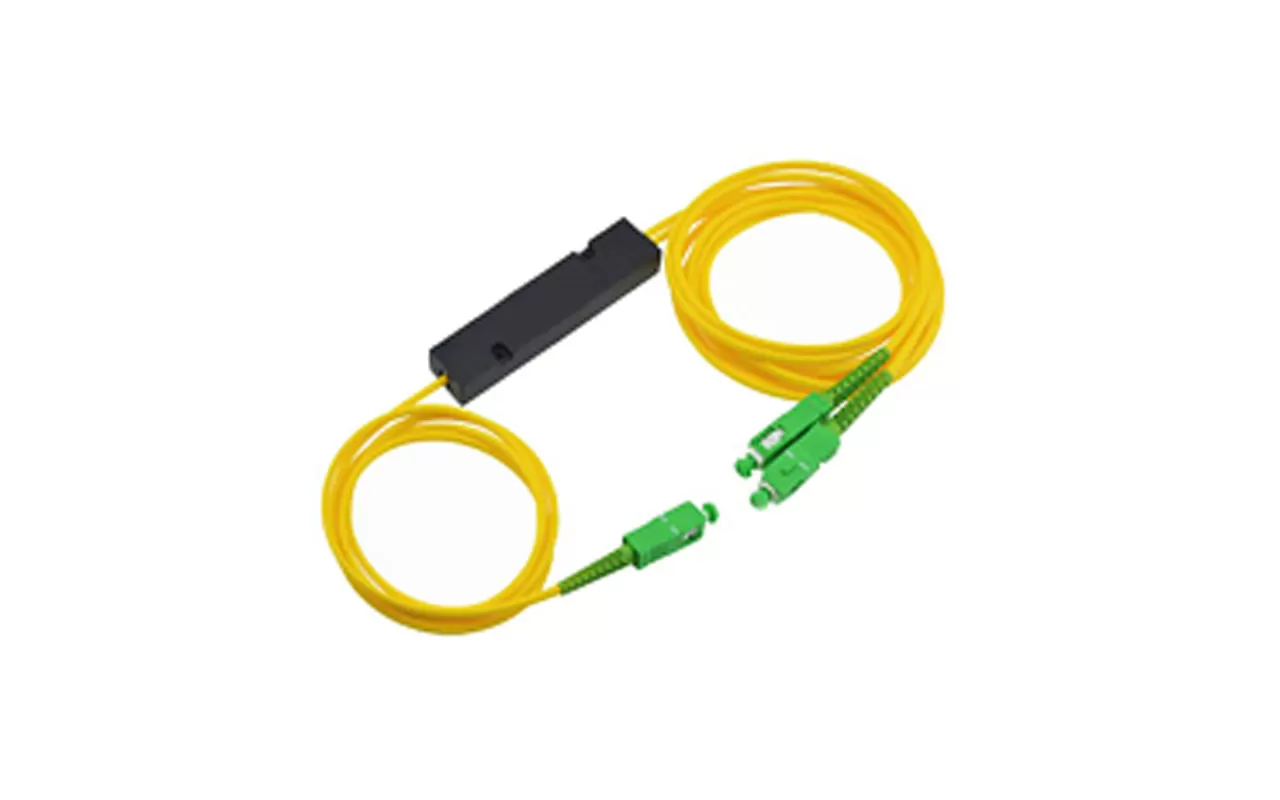

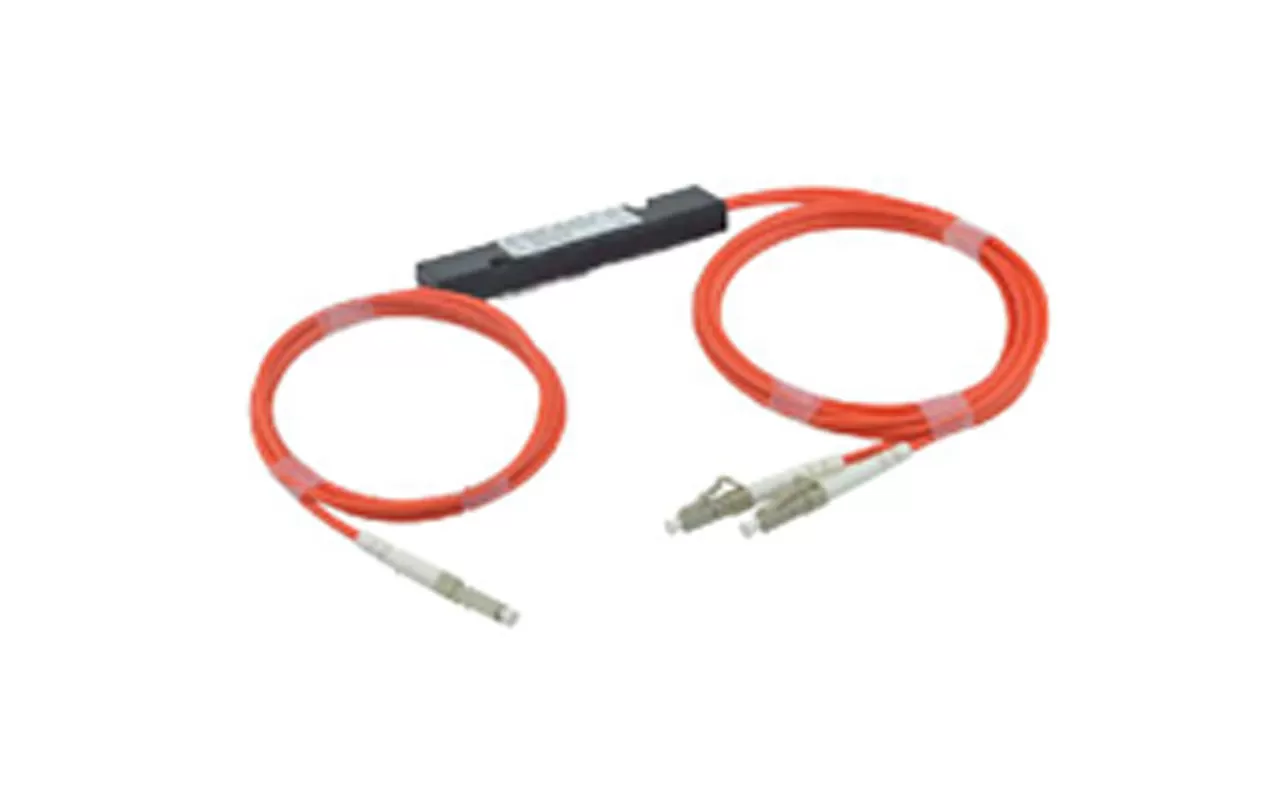

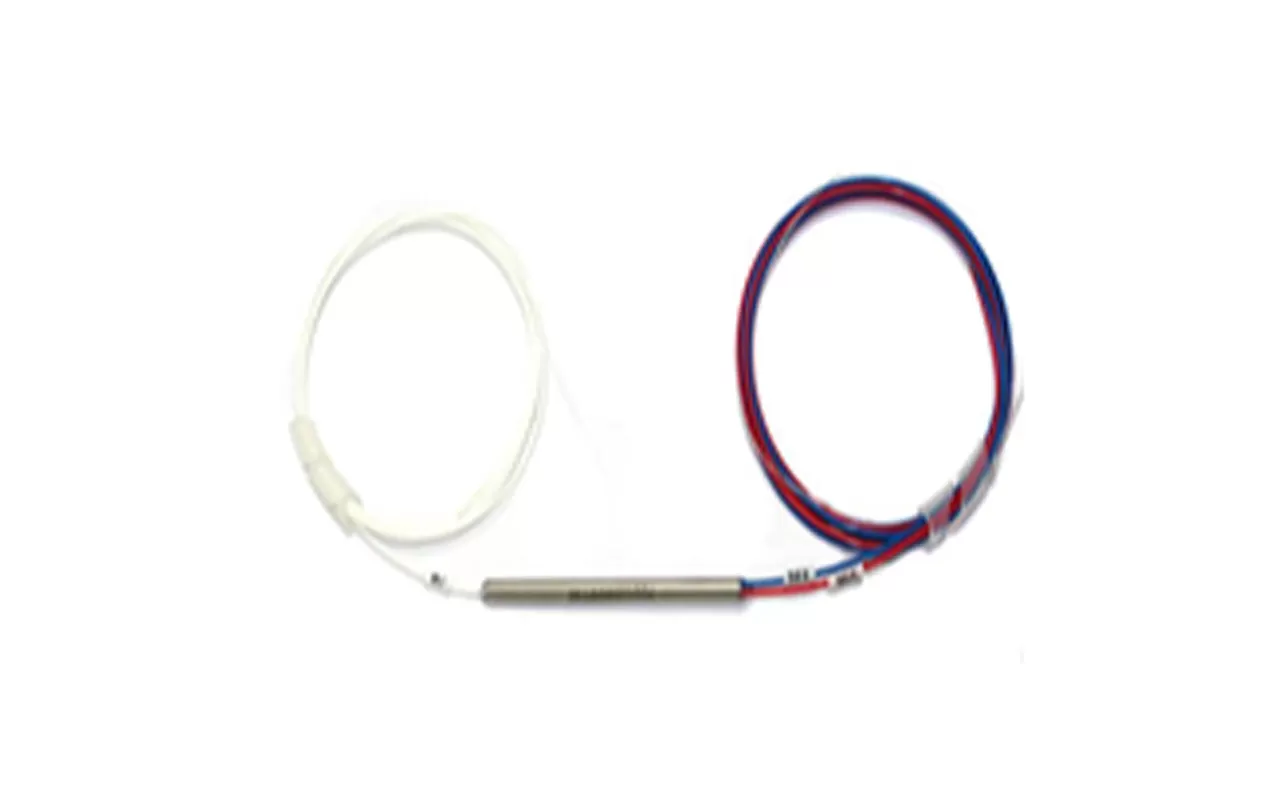

Low Insertion loss
Various Coupling
RatioCompact Size
Long-haul Telecommunications
CATV Systems & Fiber Sensors
Local Area Network
ion Loss (dB) | ||
P-Max. | ||
50/50 | 3.25 | 3.40 |
45/55 | 3.7/2.8 | 3.0/3.0 |
40/60 | 4.19/2.41 | 4.38/2.50 |
35/65 | 4.74/2.1 | 5.0/2.25 |
30/70 | 5.37/1.75 | 5.72/1.81 |
25/75 | 6.20/1.44 | 6.5/1.65 |
20/80 | 7.14/1.16 | 7.65/1.26 |
15/85 | 8.35/0.93 | 8.9/1.05 |
10/90 | 10.24/0.67 | 11.02/0.75 |
5/95 | 13.12/0.41 | 14.18/0.48 |
1/99 | 20.2/0.24 | 21/0.26 |
Excess Loss | 0.12 | |
PDL(Max.) (dB) | 0.15 | |
Operating | 1310±40, | |
Directivity (dB) | >55 | |
Port | 1 X2 or 2X2 | |
Note: All the data above does not include connectors

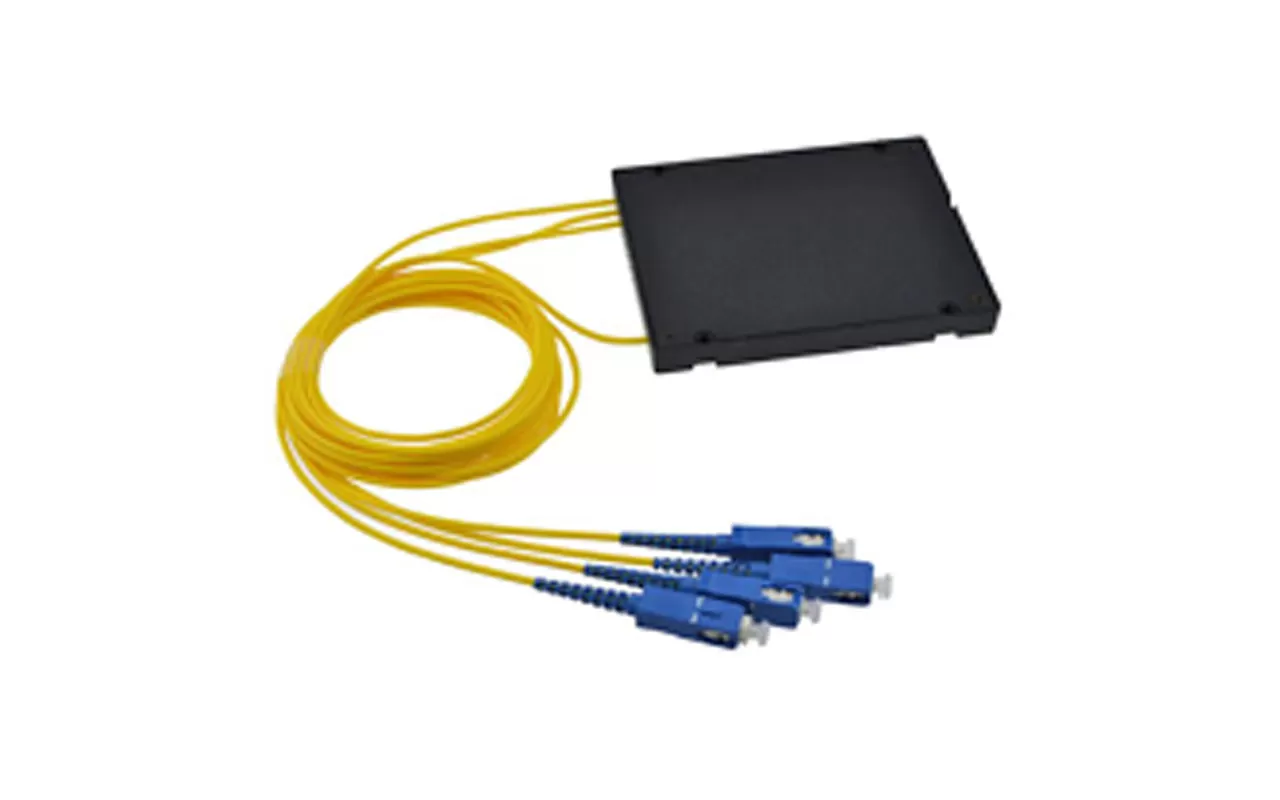

Parameter | Unit | Specification | ||||||||
Operating | nm | 1310±40, 1550±40,1490±10 | ||||||||
(1XN)(2XN) | N=3 | N=4 | N=5 | N=6 | N=8 | N=10 | N=16 | N=24 | N=32 | |
Fiber Type | Corning SMF-28e | |||||||||
IL(MAX) | dB | 5.6 | 7.1 | 8.3 | 9.2 | 10.6 | 11.75 | 14.4 | 15.6 | 17.4 |
Uniformity | dB | 0.5 | 0.7 | 1.1 | 1.3 | 1.5 | 口 | 1.8 | 2 | 2.2 |
Return Loss | dB | >55 | ||||||||
Directivity | dB | >55 | ||||||||
PDL | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 |
