Conductor: Stranded or solid
Conductor Material: Copper, Tinned Copper, CCA, TCCA
Insulation: PVC
Drain Wire: Stranded or solid
Rip Cord: Provided
Jacket: PVC (White or customer-specified)
Model:Security Cable shielded
Categories:security alarm cable
Certificates:UL, ETL, CE,CPR, RoHS
Length:100m,305m,500m,500ft,1000ft
Packing:pull box, wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 15 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C at sight, D/P at sight
Temperature Rating | （-20℃ ~ +60℃） |
Operating Voltage | 300 Volts max |
Capacitance | 45pf/ft nom. |
Impedance | 40 Ohms nom. |
DC Resistance | 16.5 Ohms/M' at 20℃ |

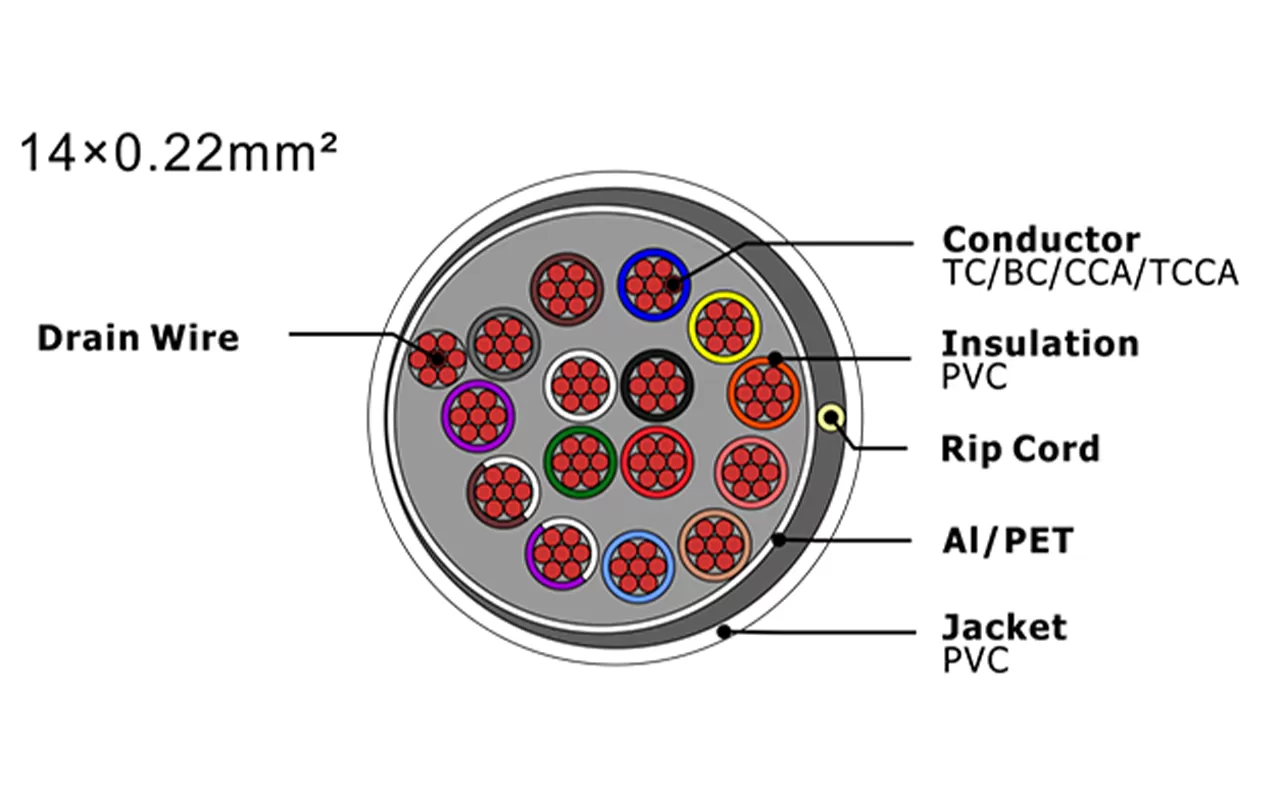

Conductor: | |||||||
14×(7/0.20mm)TC/BC/CCA/TCCA | |||||||
Dielectric: | |||||||
Type | PVC | ||||||
Diameter | 0.95mm | ||||||
Color Code: | 1.black | 2.Red | 3.yellow | 4.green | 5.brown | 6.blue | |
7.White | 8.orange | 9.Purple | 10.Grey | 11.Pink | 12.true color | ||
13..White/brown | 14.White/Purple | 15.White/.green | |||||
Shield: | Aluminum Foil | ||||||
Drain Wire: | 7 x 0.20mm (TC/BC/CCA/TCCA) | ||||||
Rip Cord: | Cotton Wire | ||||||
Jacket: | Type | PVC | |||||
Diameter | 5.90mm | ||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet |
Delivery time | Normally 15 days after received the deposit. |
