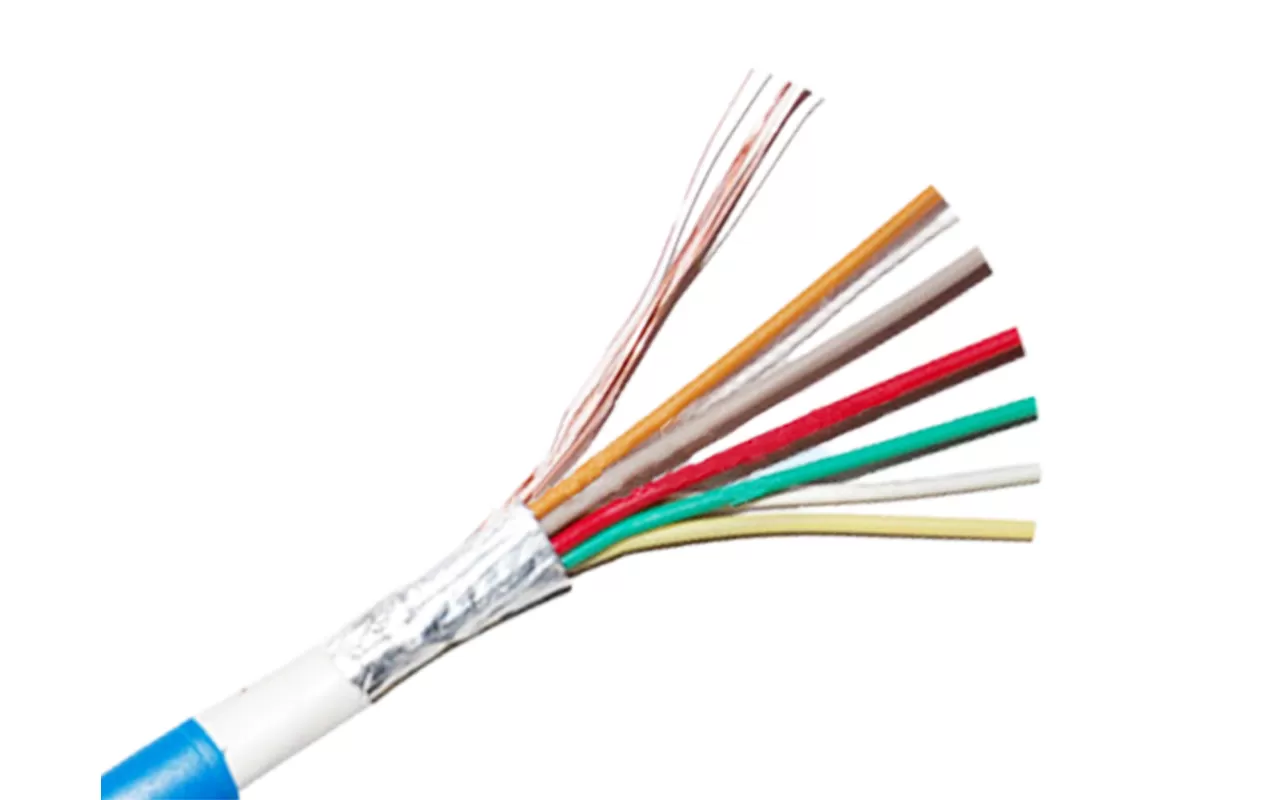

These cables are used for installation in signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors, infra-red as well as microwave or mixed technology systems to the switchboard.
Structure | 2*0.75+6*0.22 ( 2*24*0.2+6*7*0.2) shielded,Twin Jacket |
Conductor | CCA (TC,BC,TCCA are available) |
Cable core | 8C |
Insulation | PVC |
rip cord | yes |
Shield | AL/foil |
Drain wire | yes |
Jacket | PVC , Twin Jacket |
100m/roll, 100m/box ; 100m/plastic spool; 300m/wooden spool
Item No. | Description | Conductor Spec. | Insulation | Jacket | Packing | ||
Nom.Thick(mm) | Nom.Diam.(mm) | Nom.Thick(mm) | Nom.Diam. (mm) | ||||
XF-A-6022TJ | TC/BC/CCA/TCCA | 2*16*0.2+2*7*0.2 | 1.5 | 1.05 | 4.2 | 5.2 | Box Coil Drum Paper reel Plastic reel Wooden reel |
2*16*0.2+4*7*0.2 | 1.5 | 1.05 | 4.7 | 5.7 | |||
2*16*0.2+6*7*0.2 | 1.5 | 1.05 | 5.2 | 6.2 | |||
2*16*0.2+8*7*0.2 | 1.5 | 1.05 | 5.9 | 6.9 | |||
2*16*0.2+10*7*0.2 | 1.5 | 1.05 | 6.3 | 7.3 | |||
2*16*0.2+12*7*0.2 | 1.5 | 1.05 | 6.4 | 7.4 | |||
2*24*0.2+2*7*0.2 | 1.8 | 1.05 | 4.5 | 5.5 | |||
2*24*0.2+4*7*0.2 | 1.8 | 1.05 | 5 | 6 | |||
2*24*0.2+6*7*0.22 | 1.8 | 1.05 | 5.1 | 6.1 | |||
2*24*0.2+8*7*0.2 | 1.8 | 1.05 | 6.4 | 7.4 | |||
2*24*0.2+10*7*0.22 | 1.8 | 1.05 | 6.6 | 7.6 | |||
2*24*0.2+12*7*0.2 | 1.8 | 1.05 | 6.8 | 7.8 | |||
