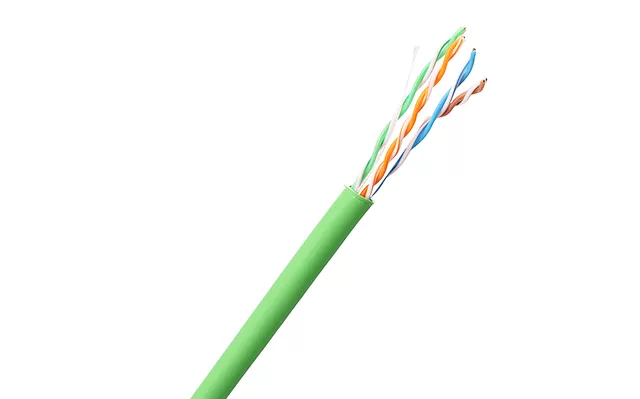

Our pure copper conductor CAT5E UTP network cable is your go-to solution for standard office, home, and building installations, ensuring 1 Gbps data transfer with universal compatibility.
Conductor: 24 AWG Solid Bare Copper
Insulation: SKIN-FOAN-SKIN PE
Halogen-free or PVC Jacket available
RoHS, REACH compliant
UL/CSA Listed CM CMR
ANSI/TIA-568-C.2-1
ISO/IEC 11801
Premise Horizontal Cable
Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T
PoE++, PoE+, PoE
Conductor Resistance (20℃)≤9.38 Ω/ 100m
Electrical Resistance Unbalance ( 20℃)≤2.5 %
Insulation Resistance>5000 MΩ·km
Mutual capacitance of a pair≤5.6nF/100m

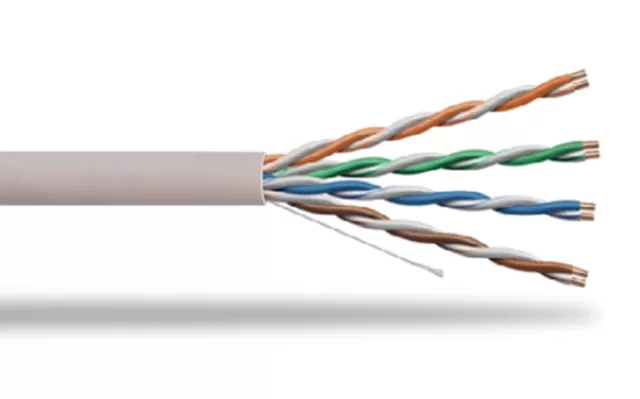

Conductor | Solid Bare Copper 24AWG |
Insulation | HDPE |
Total number of insulated conductors | 8, twisted in 4 pairs |
Color code | White-Blue/Blue,White-Orange/Orange White-Green/Green.White-Brown/Brown |
Individual pair shield | NONE |
Overall shield | NONE |
Drain wire | Tinned copper |
ltem | Outer Jacket | Overall diameter(mm) |
XF-U-05e-01 | CMX | 5.1±0.2 |
XF-U-05e-02 | CM | 5.1±0.2 |
XF-U-05e-03 | CMR | 5.1±0.2 |
XF-U-05e-04 | LSZH | 5.1±0.2 |
XF-U-05e-05 | LDPE | 5.1±0.2 |
XF-U-05e-06 | PVC | 5.1±0.2 |
Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss)[dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] |
1 | 2.0 dB/100m | 70.3 | 68.3 | 70.3 | 66.3 | 67.8 | 64.8 | 20.0 | 100 ± 15 | 100 ± 15 |
4 | 4.0 dB/100m | 61.3 | 59.3 | 59.3 | 55.3 | 55.8 | 52.8 | 23.0 | 100 ± 15 | 100 ± 15 |
8 | 5.7 dB/100m | 56.8 | 54.8 | 53.1 | 49.1 | 49.7 | 46.7 | 24.5 | 100 ± 15 | 100 ± 15 |
10 | 6.4 dB/100m | 55.3 | 53.3 | 50.9 | 46.9 | 47.8 | 44.8 | 25.0 | 100 ± 15 | 100 ± 15 |
16 | 8.1 dB/100m | 52.2 | 50.2 | 46.1 | 42.1 | 43.7 | 40.7 | 25.0 | 100 ± 15 | 100 ± 15 |
20 | 9.1 dB/100m | 50.8 | 48.8 | 43.7 | 39.7 | 41.8 | 38.8 | 25.0 | 100 ± 15 | 100 ± 15 |
25 | 10.2 dB/100m | 49.3 | 47.3 | 41.1 | 37.1 | 39.8 | 36.8 | 24.3 | 100 ± 15 | 100 ± 15 |
31.25 | 11.4 dB/100m | 47.9 | 45.9 | 38.5 | 34.5 | 37.9 | 34.9 | 23.6 | 100 ± 15 | 100 ± 15 |
62.5 | 16.4 dB/100m | 43.4 | 41.4 | 29.0 | 25.0 | 31.9 | 28.9 | 21.5 | 100 ± 15 | 100 ± 15 |
100 | 21.0 dB/100m | 40.3 | 38.3 | 21.3 | 17.3 | 27.8 | 24.8 | 20.1 | 100 ± 15 | 100 ± 15 |
Note：The above transmission performance for the 100M,20±2℃ under the conditions tested. | ||||||||||
The CAT5E UTP Cable from Xingfa features unshielded twisted pair construction with four pairs of 24 AWG copper conductors, reducing crosstalk through precise twisting ratios. Unlike shielded options, UTP offers affordability and flexibility for low-interference settings, with PVC jackets providing durability up to 75°C operating temperatures. Statistics show CAT5E reduces attenuation by up to 20% compared to CAT5, ensuring stable performance. As per TIA/EIA-568 standards, "CAT5E enhances bandwidth to 100 MHz for Gigabit Ethernet," making it backward compatible with lower categories. Distributors appreciate customizable options, such as colors and lengths, for tailored market needs.
Versatile for Ethernet, VoIP, and surveillance systems, CAT5E UTP excels in residential andcommercial setups with minimal EMI. In offices, it connects PCs to switches; in homes, it supports
broadband routers.
For industrial use, consider shielded alternatives, but UTP suffices for 80% of standard installations, according to market data. Case studies show deployment in European telecom projects, leveraging CPR B2ca certification for safety.
Distributors can target sectors like education and healthcare, where cost savings from UTP (20-30% cheaper than SFTP) drive demand.
