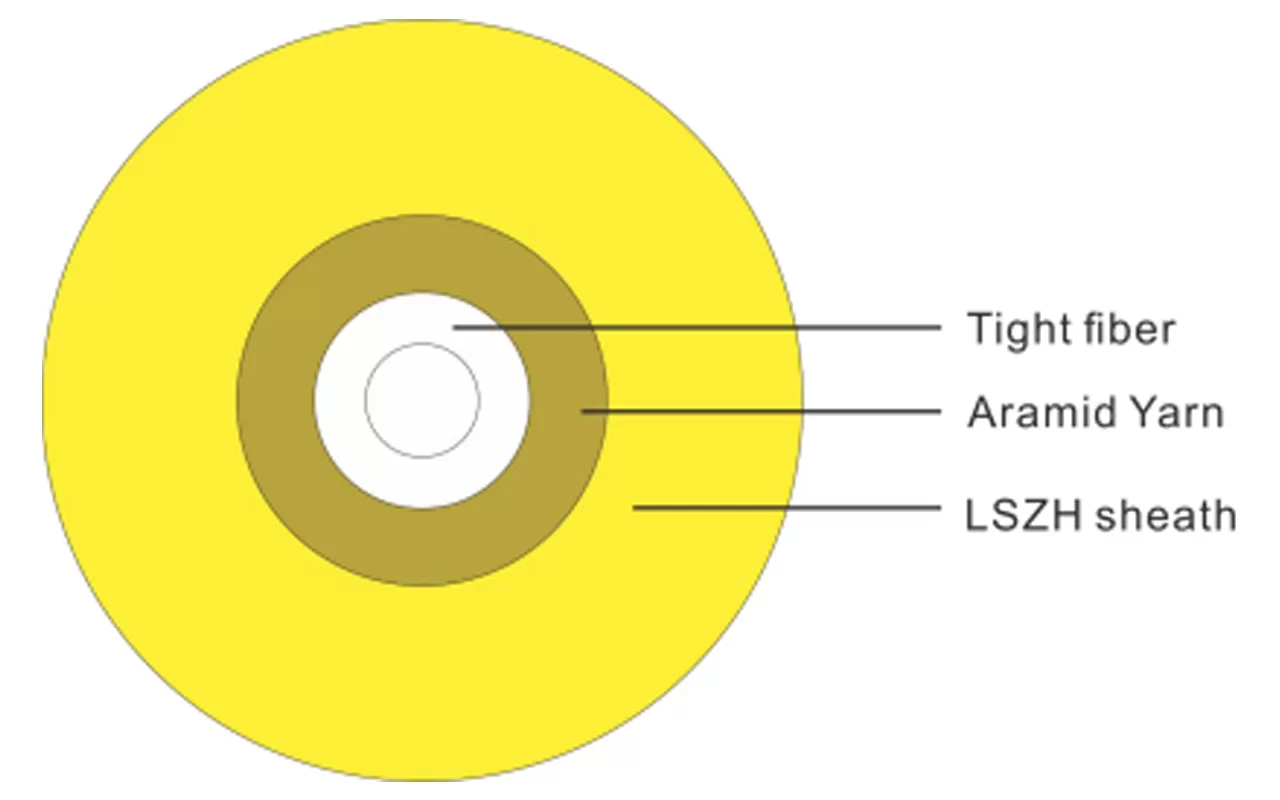

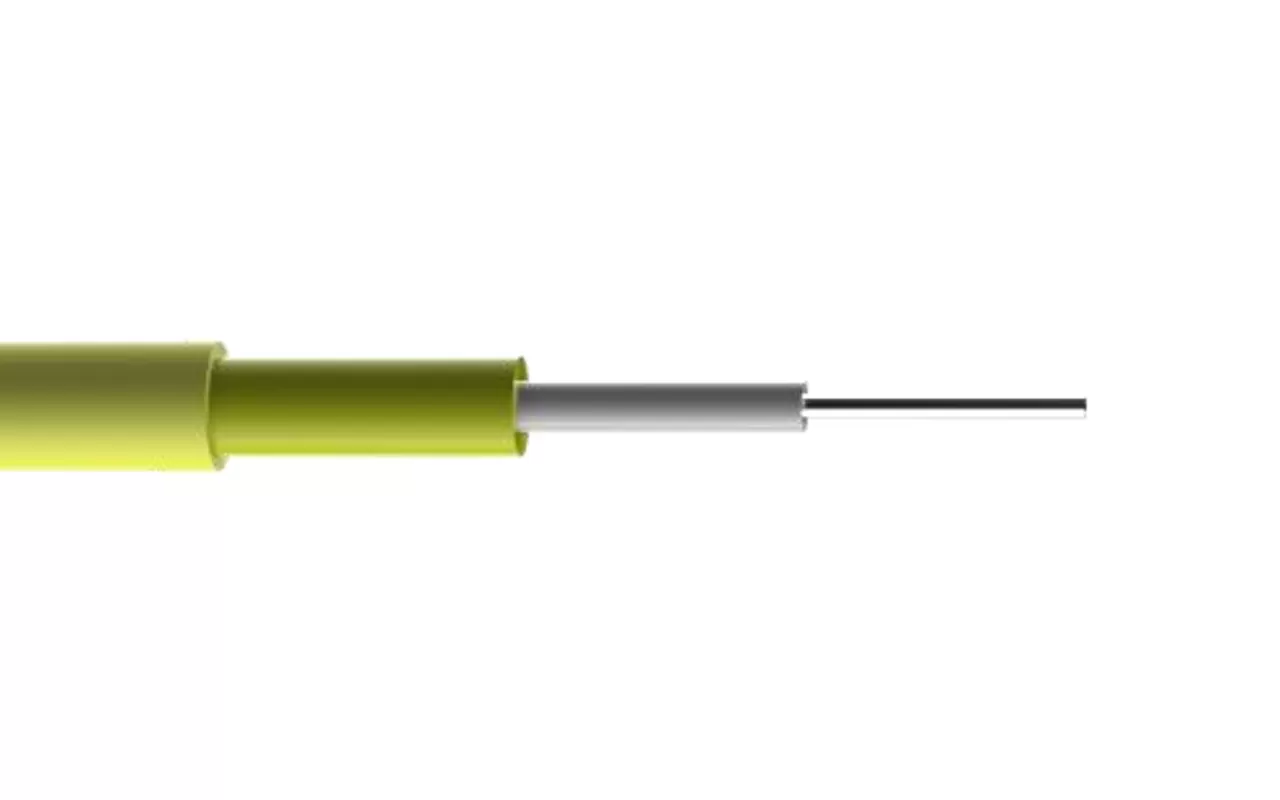

Single-core indoor optical cable uses 900μm or 600μm tight-buffered optical fiber as the optical transmission unit, covered with aramid yarn as the strength member, and extruded with a layer of polyvinyl chloride (PVC) sheath on the outermost layer. Sheaths made of materials such as low smoke zero halogen (LSZH) can also be provided according to customer requirements.
Cable Model | Reference Cable Diameter (mm) | Reference Cable Weight (kg/km) | Tight-Buffered Fiber Diameter (μm) | Allowable Tensile Force Long-term/Short-term (N) | Allowable Crush Force Long-term/Short-term (N) | Bending Radius Static/Dynamic (mm) | |
PVC Sheath | LSZH Sheath | ||||||
SXC-1.6 | 1.6±0.2 | 2.4 | 2.6 | 600±50 | 40/80 | 100/500 | 60/30 |
SXC-1.9 | 1.9±0.2 | 3.5 | 4.5 | 900±50 | 60/100 | 100/500 | 60/30 |
SXC-2.8 | 2.8±0.2 | 6.0 | 7.5 | 900±50 | 60/100 | 100/500 | 60/30 |
Optical Fiber Type | Attenuation | Overfilled Launch Bandwidth | Effective Modal Bandwidth | 10G Ethernet Link Length | Minimum Bending Radius | |||
Conditions | 1310/1550nm Typical Value Maximum Value | 1310/1550nm Typical Value Maximum Value | 850/1300nm | 850nm | 850nm | / | ||
单位 | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | dB/km | dB/km | --- | --- | --- | --- | --- | 16 |
G657A1 | G652D | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | G657A1 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
50/125 | 0.36/0.22 | 0.5/0.4 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
62.5/125 | 50/125 | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
Transportation/storage/operating temperature: -20°C ~ +60°C, installation temperature: -5°C ~ +50°C. | ||||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | ||||||||
Adopts tight-buffered optical fiber, which is easy to strip;
The tight-buffered optical fiber has good flame retardant performance;
Aramid strength members endow the optical cable with excellent tensile performance;
The outer sheath material has the advantages of corrosion resistance, water resistance, flame retardancy, environmental protection, etc.
Optical fiber active connection jumpers or pigtails
Indoor riser-level and forced air ventilation-level cabling
Interconnection of instruments and communication equipment
