The product is applied in radio frequency transmission in wireless communication, broadcasting and relatedelectronic equipment or in circuit-closed TV system, share-antenna system branch line, subscriber line andother electronic facility.

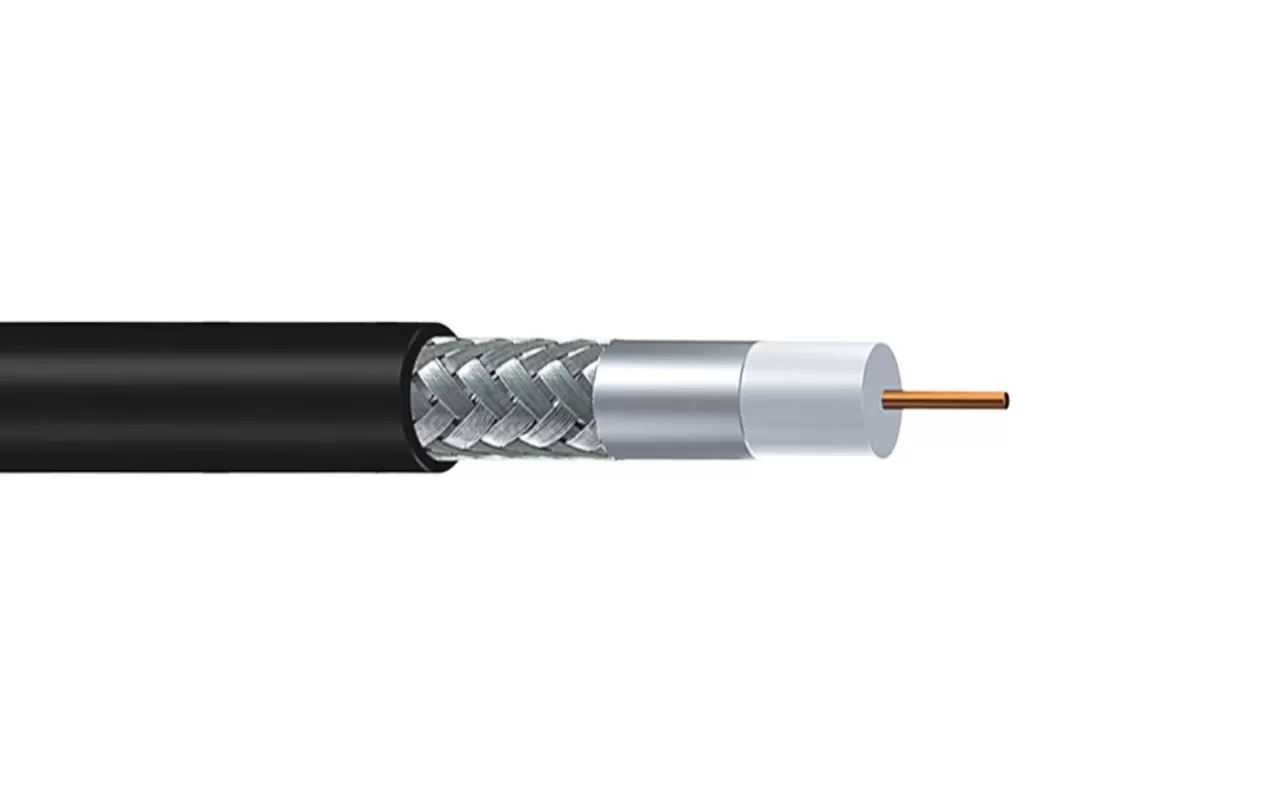

Conductor | MATERIAL | CCA |
Nom.Dia. (mm) | 2.77±0.05 | |
Dielectric | MATERIAL | Foam PE |
Nom.Dia. (mm) | 11.43±0.05 | |
Shield | MATERIAL | ALFoil+AL Braiding |
COVERAGE | 40%-95% | |
Jacket | MATERIAL | PVC/PE |
Nom.Thick. (mm) | 0.80±0.05 | |
Nom.Dia. (mm) | 14.20±0.05 |
Nominal Impedance(ohm) | 75±3 | |
Nominal Velocity of propagation(%) Nominal Capacitance(pf/m) | 85 50 | |
Spark Test(VAC) | 4 | |
SRL(dB) | 22 | |
Attenuation [68°f(20℃)] | Frequency（MHz） | Maximum (dB/100m) |
5 | 0.52 | |
55 | 1.77 | |
211 | 3.58 | |
250 | 3.94 | |
300 | 4.30 | |
350 | 4.69 | |
400 | 5.02 | |
450 | 5.35 | |
500 | 5.67 | |
550 | 5.97 | |
600 | 6.27 | |
750 | 7.09 | |
865 | 7.68 | |
1000 | 8.27 | |
