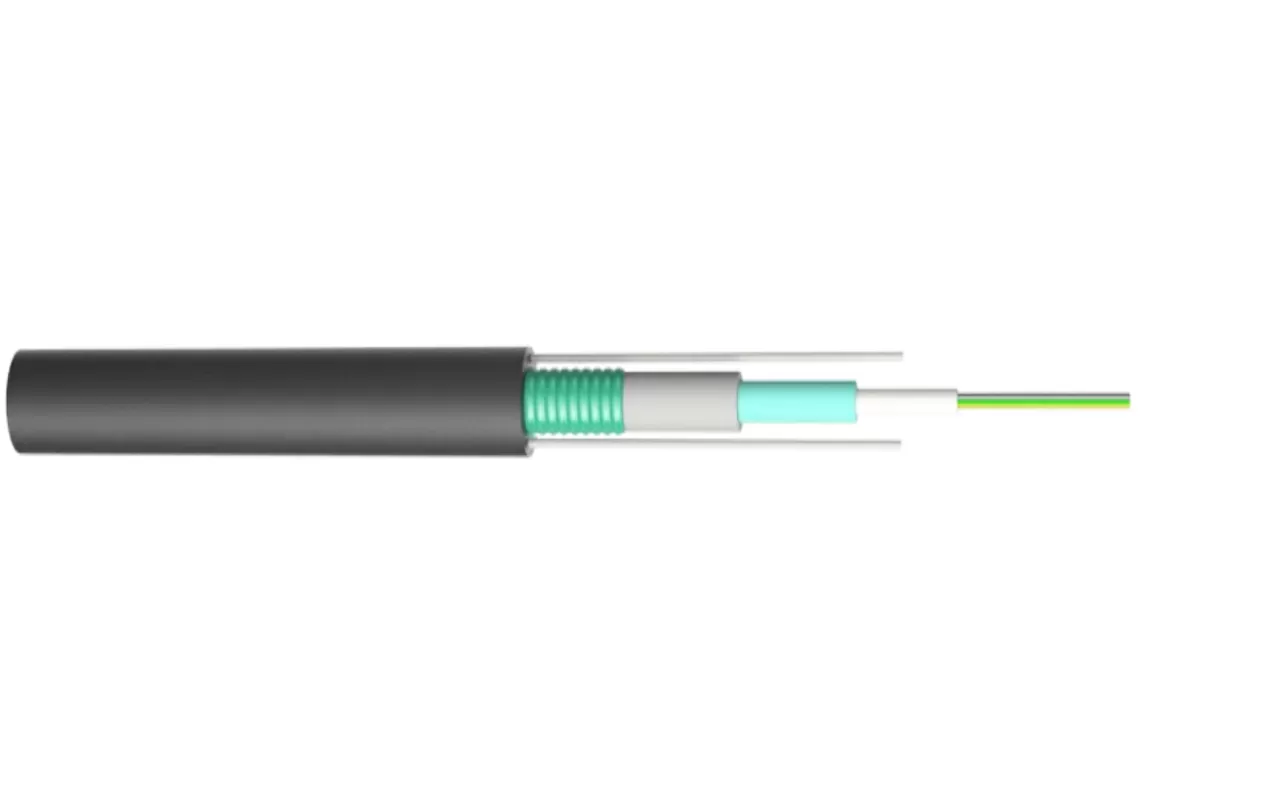

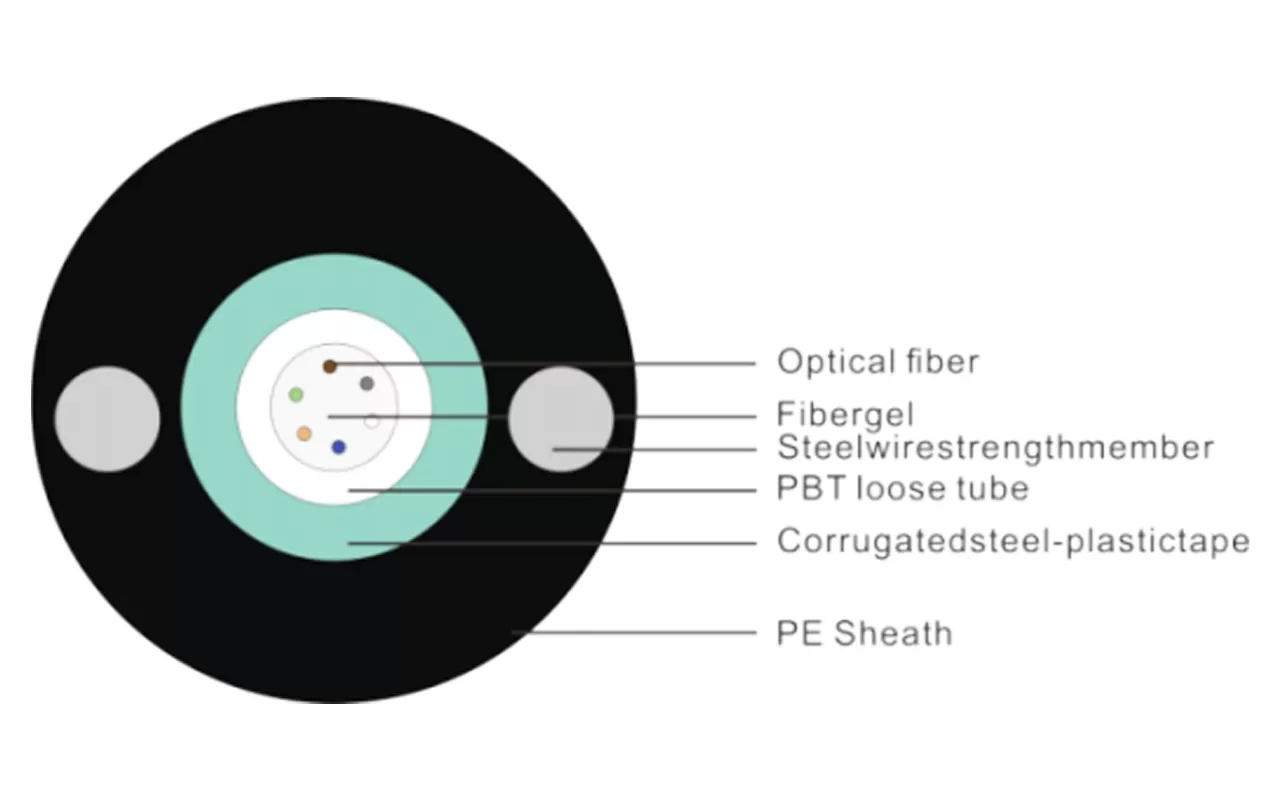

Colored optical fibers are placed into loose tubes made of high-modulus, hydrolysis-resistant materials, and the loose tubes are filled with thixotropic water-blocking paste. The exterior of the loose tubes is longitudinally wrapped with a layer of double-sided coated steel tape, and the space between the steel tape and the loose tubes is filled with water-blocking cable paste to ensure the cable's compactness and longitudinal water resistance. Two parallel steel wires are placed on both sides, after which a flame-retardant sheath is extruded to form the cable.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.3db/km | ≤1.2db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.5db/km | ≤1.2db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of Fibers | Reference Optical Cable Weight (kg/km) | Allowable Tensile Force Long-term/Short- term(N) | Allowable Crush Force (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
GYXTZW-24Xn | 24 | 192 | 600/1500 | 300/1000 | 10D/20D |
GYXTZW-24Xn | 24 | 215 | 1000/3000 | ||
Storage and operating temperature: -40℃ to +70℃. | |||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||
It has excellent mechanical properties and temperature characteristics.
The loose tube material features good hydrolysis resistance and excellent lateral pressure resistance.
The tube is filled with special grease, providing critical protection for the optical fibers.
The special sheath material has outstanding flame-retardant performance.
The double-sided coated steel tape enhances the cable's moisture resistance.
Two parallel steel wires ensure the stability and tensile performance of the optical cable.
Small in diameter, light in weight, and easy to lay.
