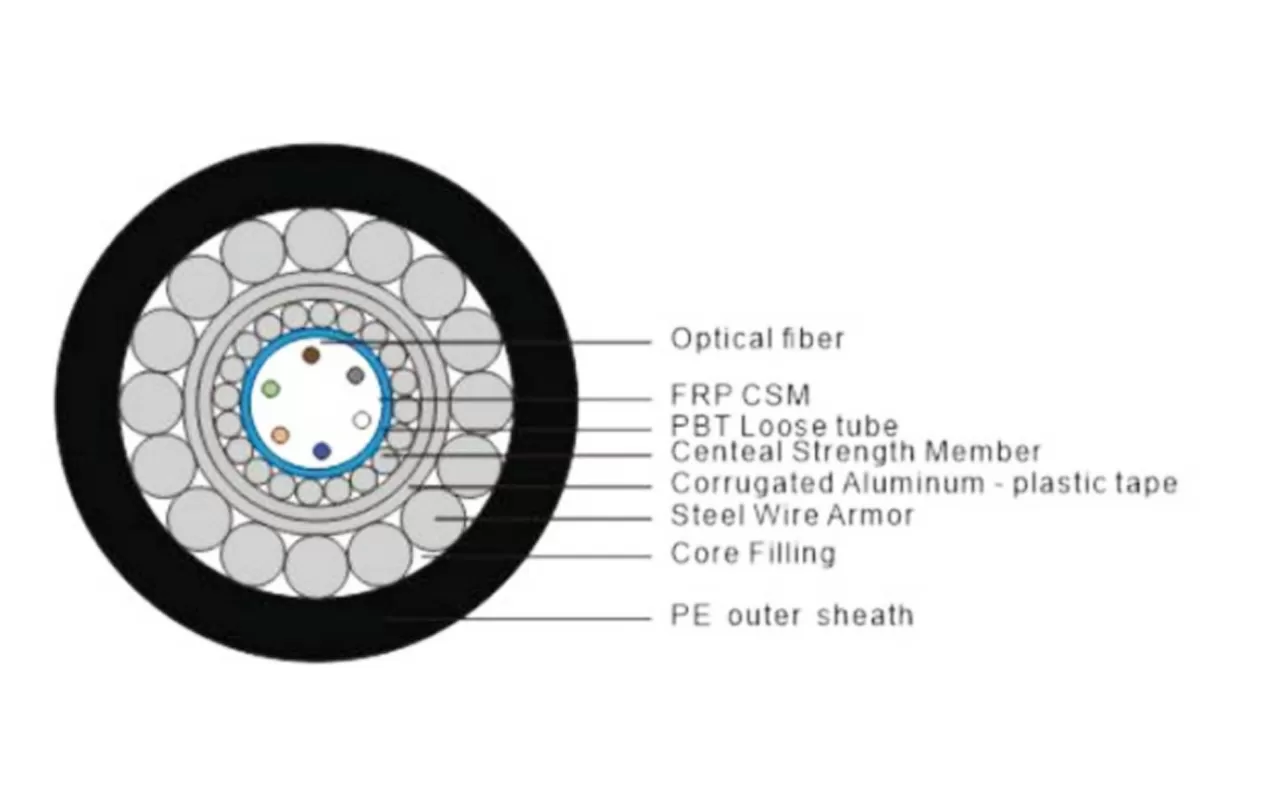

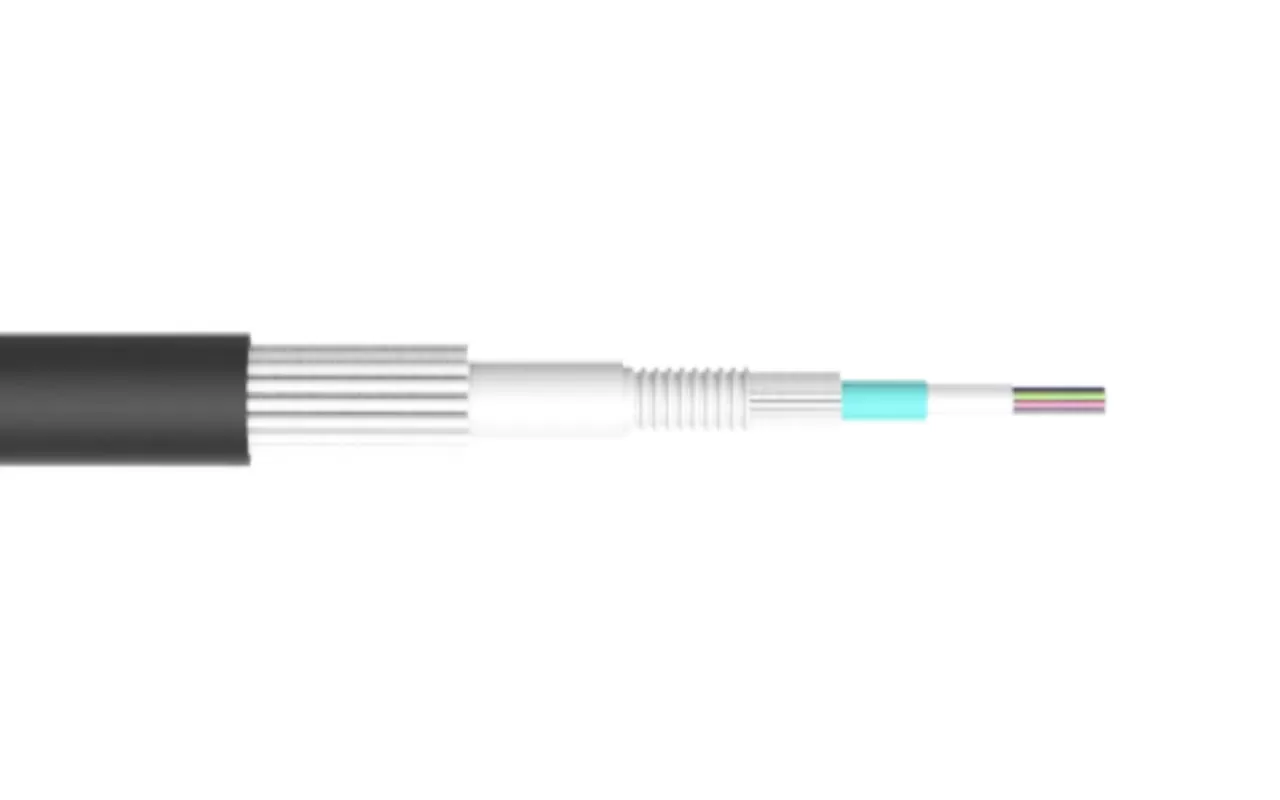

Colored optical fibers are placed into loose tubes made of high-modulus hydrolysis-resistant material, and the loose tubes are filled with thixotropic water-blocking grease. A layer of fine round steel wires is stranded outside the loose tubes to form a compact and circular cable core, with the gaps in the cable core filled with water-blocking fillers.
After longitudinally wrapping with plastic-coated aluminum tape, a layer of polyethylene inner sheath is extruded. Then, after being armored with a single fine round steel wire, a polyethylene outer sheath is finally extruded to form the cable.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.0db/km | ≤1.0db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.3db/km | ≤1.0db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of Fibers | Reference Optical Cable Weight (kg/km) | Allowable tensileforce Long-term/Short- term(N) | Allowable CrushForce (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
GYXTA33-2-12Xn | 12 | 448 | 4000/10000 | 3000/5000 | 12.5D/25D |
GYXTA33-14-24Xn | 24 | 478 | |||
GYXTA33-26-36Xn | 36 | 510 | |||
Storage and operating temperature: -40℃ to +70℃. | |||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||
Excellent mechanical properties and temperature resistance
Double-layer single fine round steel wire armoring enhances the cable's tensile performance
The loose tube material features good hydrolysis resistance and strong lateral pressure resistance
Special grease filled in the tubes provides critical protection for optical fibers
Plastic-coated aluminum tape for moisture-proofing
Small in size, light in weight, and easy to lay
