4, 6, 8, and 12-fiber ribbons are placed into loose tubes made of high-modulus materials, and the loose tubes are filled with thixotropic water-blocking fiber paste.

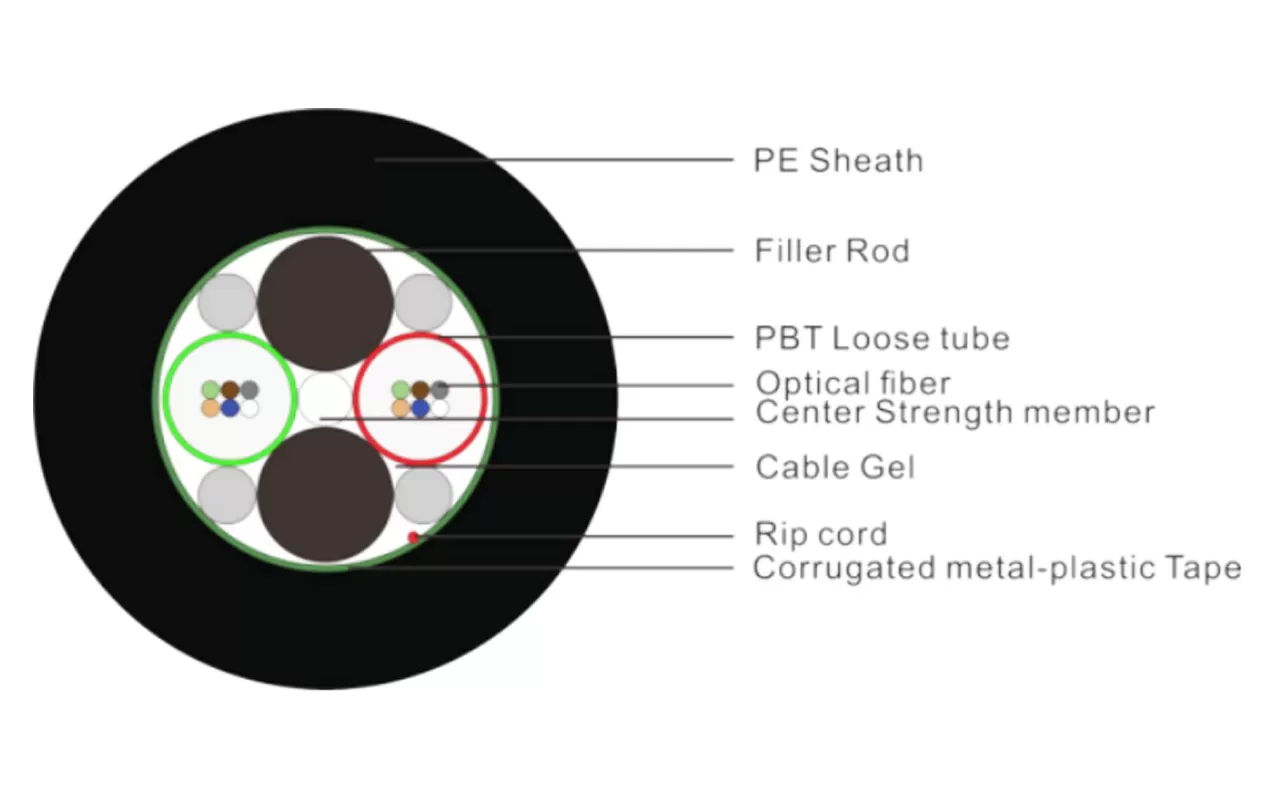

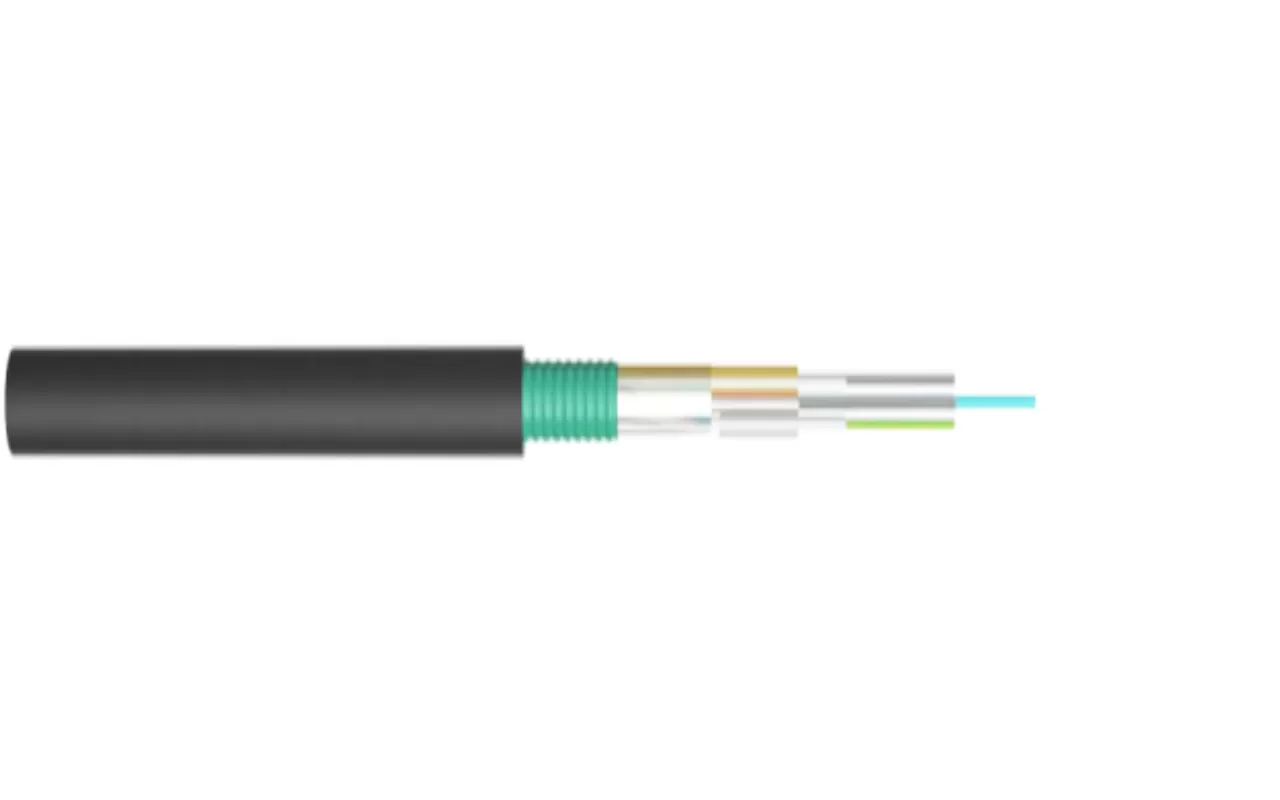

At the center of the cable core is a metal strength member. The loose tubes (and filler ropes) are stranded around the central strength member to form a circular cable core, with the gaps inside the cable core filled with water-blocking cable paste. After the plastic-coated aluminum tape is longitudinally wrapped, a polyethylene sheath is extruded to form the cable.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.3db/km | ≤1.2db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.5db/km | ≤1.2db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of Fibers | Number of sleeves | Number of filler ropes | Reference Optical Cable Weight (kg/km) | Allowable Tensile Force Long-term/Short- term(N) | Allowable Crush Force (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
GYDTA-48Xn | 4X12 | 1 | 3 | 265 | 600/1500 | 300/1000 | 10D/20D |
GYDTA-96Xn | 8X12 | 2 | 2 | 265 | |||
GYDTA-144Xn | 12X12 | 3 | 1 | 265 | |||
GYDTA-288Xn | 24X12 | 4 | 0 | 295 | |||
Storage and operating temperature: -40℃ to +70℃. | |||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||||
The loose tube material itself has good hydrolysis resistance and high strength.
The tube is filled with special grease, providing key sealing protection for the optical fibers.
The special sheath has excellent flame retardancy.
A single non-metallic central strength member.
2, 6, 8, and 12-fiber ribbons are adopted, allowing flexible application.
It has excellent mechanical properties and temperature characteristics.
Plastic-coated aluminum tape moisture-proof layer.
