These cables are used for installation in telecommunication, intercom,signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors,infra-red as well as micro wave or mixed technology systems to the switchboard .

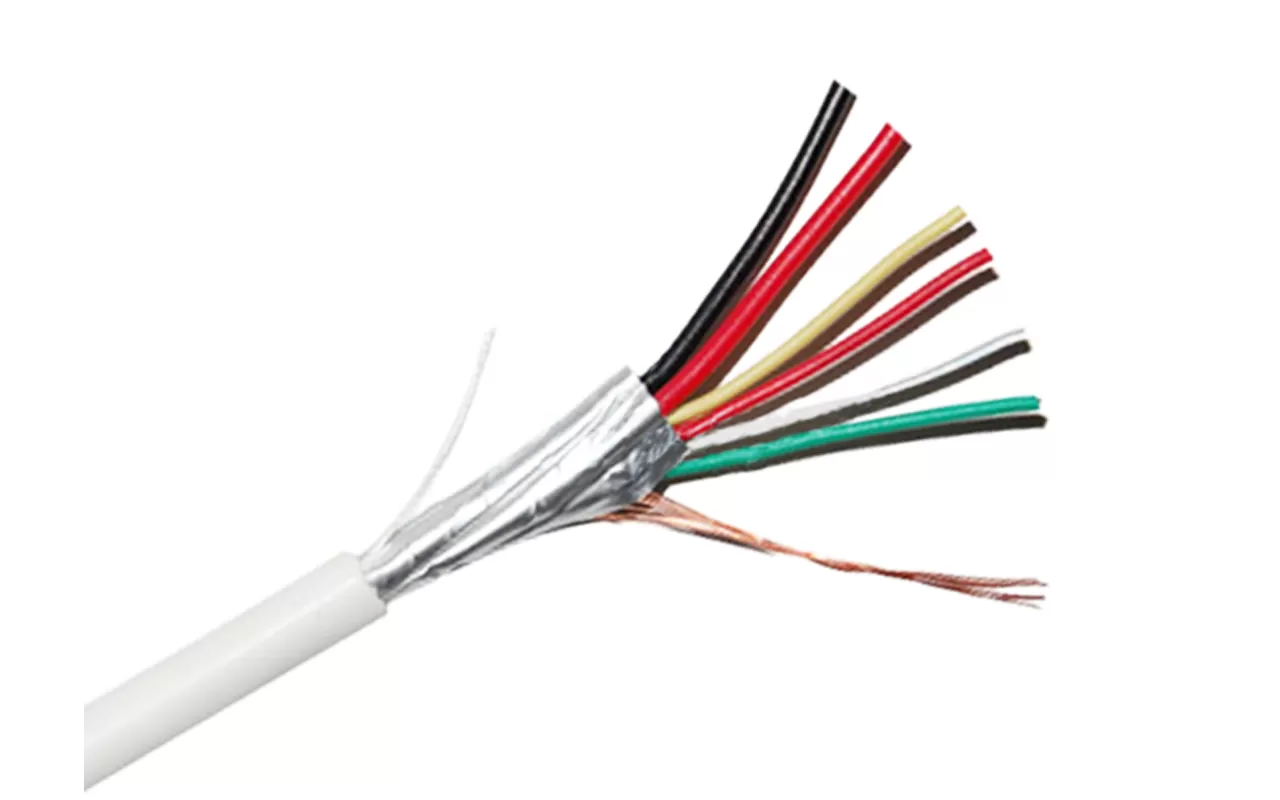

Structure | 2*0.5+4*0.22 shield ( 2*16*0.2+4*7*0.2) |
Conductor | CCA (TC,BC,TCCA are available) |
Cross sectional area of core | 0.22 sq.mm |
Cable core | 6C |
Diameter of core section | 0.52 mm |
Insulation | PVC |
Drain wire | yes |
Rip cord | yes |
Shield | with Al/foil |
Jacket | PVC |
100m/roll, 100m/box ; 100m/plastic spool; 300m/wooden spool
Item No. | Description | Conductor Spec. | Insulation | Jacket | Packing | ||
Nom.Thick(mm) | Nom.Diam.(mm) | Nom.Thick(mm) | Nom.Diam. (mm) | ||||
XF-A-2054022 shield | TC/BC/CCA/T CCA | 2*16*0.2+2*7*0.2 | 1.5 | 1.05 | 0.5 | 4.2 | Box |
2*16*0.2+4*7*0.2 | 1.5 | 1.05 | 0.5 | 4.7 | |||
2*16*0.2+6*7*0.2 | 1.5 | 1.05 | 0.6 | 5.2 | |||
2*16*0.2+8*7*0.2 | 1.5 | 1.05 | 0.6 | 5.9 | |||
2*16*0.2+10*7*0.2 | 1.5 | 1.05 | 0.7 | 6.3 | |||
2*16*0.2+12*7*0.2 | 1.5 | 1.05 | 0.7 | 6.4 | |||
2*24*0.2+2*7*0.2 | 1.8 | 1.05 | 0.5 | 4.5 | |||
2*24*0.2+4*7*0.2 | 1.8 | 1.05 | 0.5 | 5 | |||
2*24*0.2+6*7*0.22 | 1.8 | 1.05 | 0.6 | 5.1 | |||
2*24*0.2+8*7*0.2 | 1.8 | 1.05 | 0.6 | 6.4 | |||
2*24*0.2+10*7*0.22 | 1.8 | 1.05 | 0.7 | 6.6 | |||
2*24*0.2+12*7*0.2 | 1.8 | 1.05 | 0.7 | 6.8 | |||
