Conductor: Stranded or solid
Conductor Material: Copper, Tinned Copper, CCA, TCCA
Insulation: PVC
Drain Wire: Stranded or solid
Rip Cord: Provided
Jacket: PVC (White or customer-specified)
Model:Security Cable shielded
Categories:security alarm cable
Certificates:UL, ETL, CE,CPR, RoHS
Length:100m,305m,500m,500ft,1000ft
Packing:pull box, wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 15 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C at sight, D/P at sight
Wiring Burglar & Security alarms, public address systems,intercoms, telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.

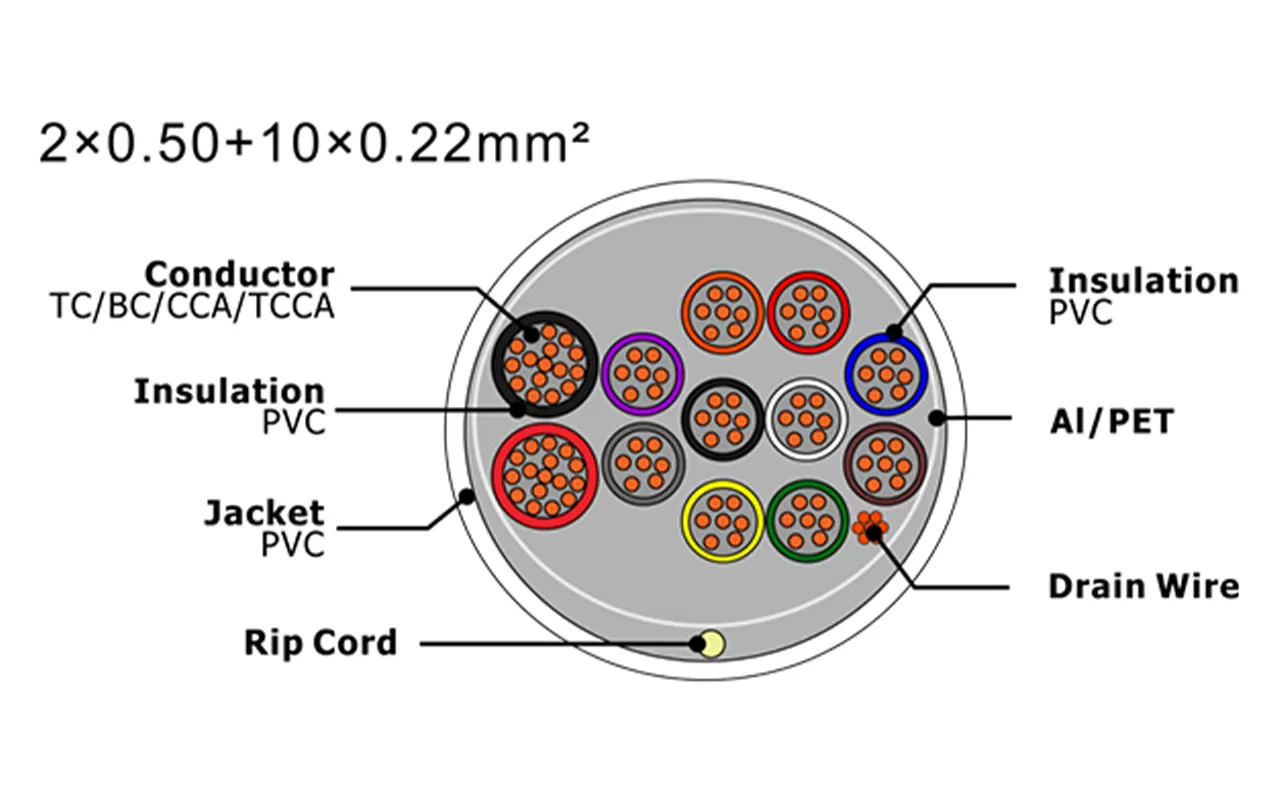

Conductor: | |
2×(16/0.20mm)TC/BC/CCA/TCCA | |
Dielectric: | |
Type | PVC |
Diameter | 1.50mm |
Color Code: | 1.black |
2.Red | |
Conductor: | |||||||
12×(7/0.20mm)TC/BC/CCA/TCCA | |||||||
Dielectric: | |||||||
Type | PVC | ||||||
Diameter | 0.95mm | ||||||
Color Code: | 1.black | 2.Red | 3.yellow | 4.green | 5.brown | 6.blue | |
7.White | 8.orange | 9.Purple | 10.Grey | ||||
Drain Wire | 7x0.20mm TC/BC/CCA/TCCA | ||||||
Shield: | Aluminum Foil | ||||||
Rip Cord | Cotton Wire | ||||||
Jacket: | Type | PVC | |||||
Diameter | 6.1mm | ||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet |
Delivery time | Normally 15 days after received the deposit. |
