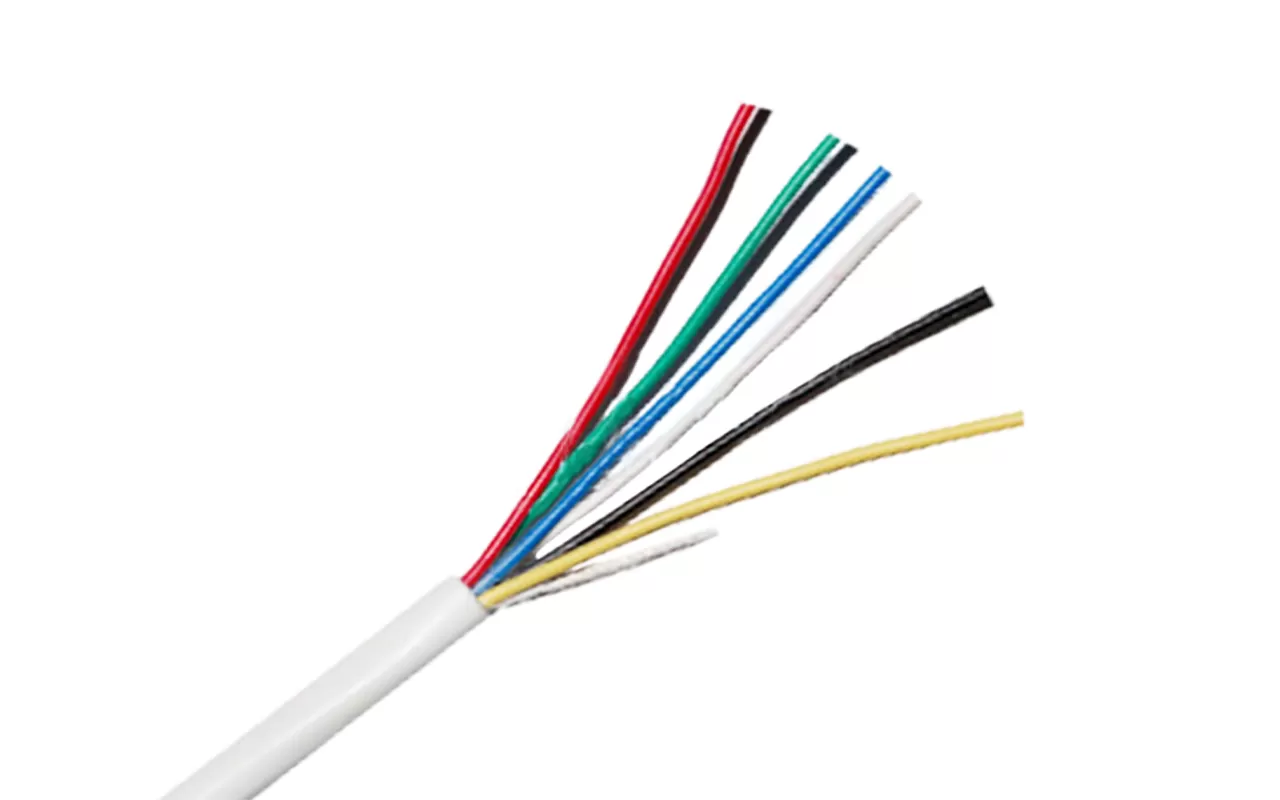

These cables are used for installation in telecommunication, intercom,signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors, infrared as well as micro wave or mixed technology systems to the switchboard.
Structure | 6*0.22 ( 7*0.2) unshielded |
Conductor | CCA (TC,BC,TCCA are available) |
Cross sectional area of core | 0.22 sq.mm |
Cable core | 6C |
Diameter of core section | 0.52 mm |
Insulation | PVC |
Drain wire | yes |
Rip cord | yes |
Shield | no |
Jacket | PVC |
100m/roll, 100m/box ; 100m/plastic spool; 300m/wooden spool
Item No. | Description | Conductor Spec. | Insulation | Jacket | Packing | ||
Nom.Thick(mm) | Nom.Diam.(mm) | Nom.Thick(mm) | Nom.Diam. (mm) | ||||
XF-A-6022 unshield | TC/BC/CCA/T CCA | 2*7*0.2/0.22 | 1.5 | 1.05 | 0.5 | 3.1 | Box |
4*7*0.2/0.22 | 1.5 | 1.05 | 0.5 | 3.4 | |||
6*7*0.2/0.22 | 1.5 | 1.05 | 0.6 | 4.1 | |||
8*7*0.2/0.22 | 1.5 | 1.05 | 0.6 | 4.5 | |||
10*7*0.2/0.22 | 1.5 | 1.05 | 0.7 | 5.1 | |||
12*7*0.2/0.22 | 1.5 | 1.05 | 0.7 | 5.5 | |||
20*7*0.2/0.22 | 1.5 | 1.05 | 0.7 | 7.2 | |||
