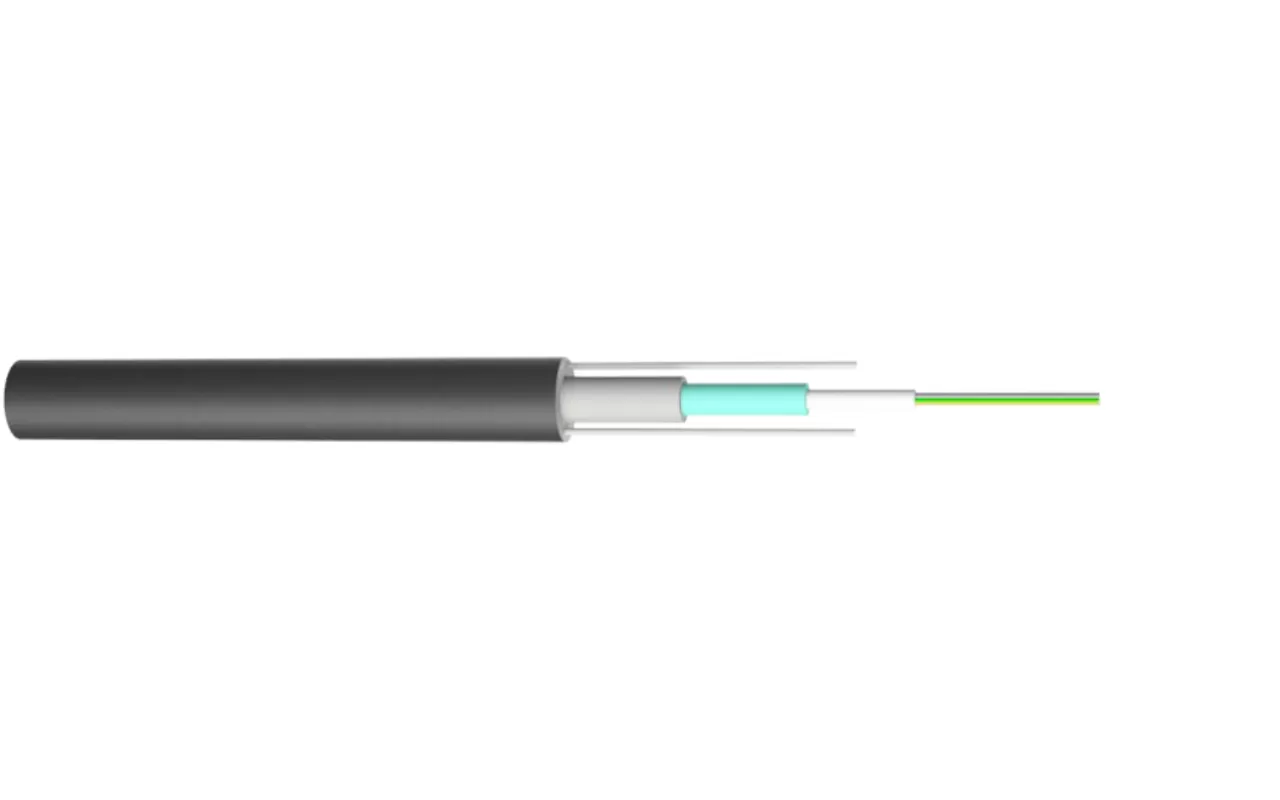

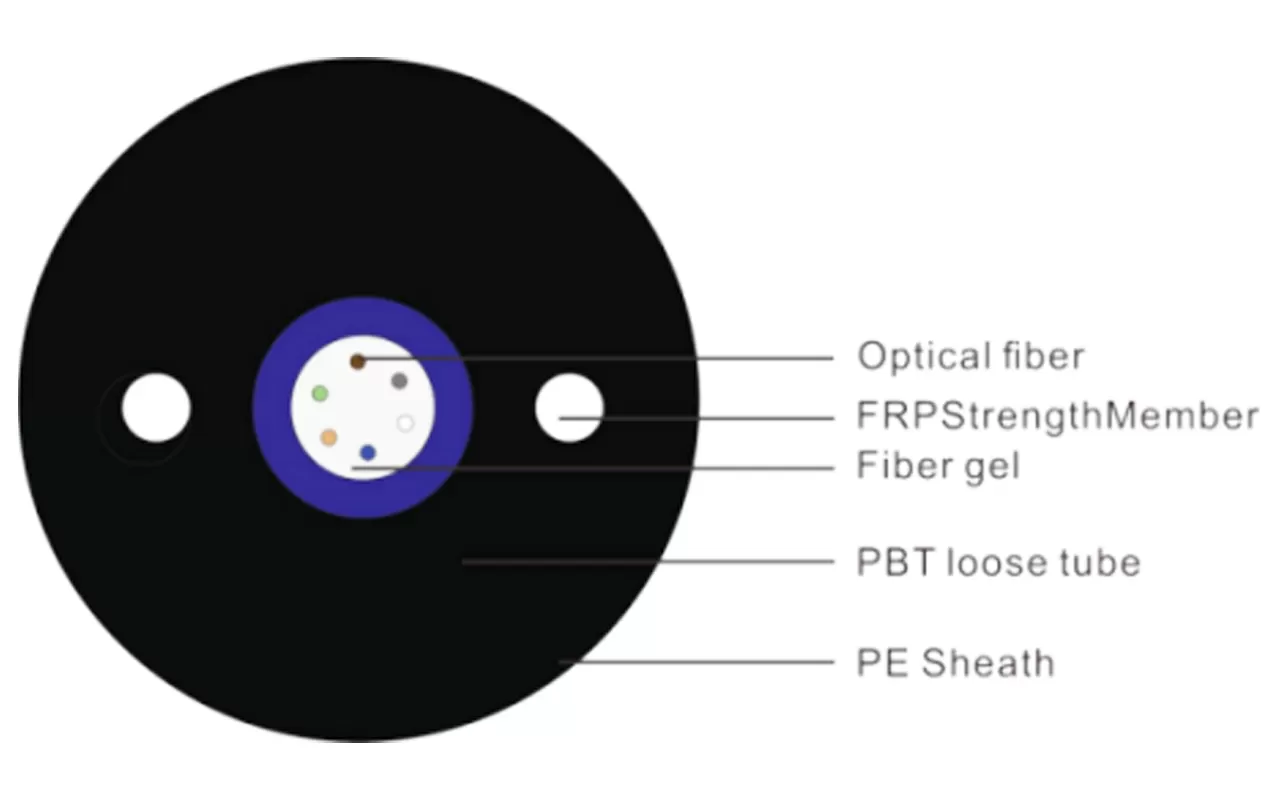

Colored optical fibers are placed into loose tubes made of high-modulus, hydrolysis-resistant materials, and the loose tubes are filled with thixotropic water-blocking paste. Water-blocking materials are applied outside the loose tubes to ensure the longitudinal water resistance of the optical cable. Two parallel glass fiber reinforced plastics (FRP) are placed on both sides, after which a polyethylene sheath is extruded to form the cable.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.3db/km | ≤1.2db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.5db/km | ≤1.2db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of optical fibers | Reference Optical Cable Weight (kg/km) | Allowable Tensileforce Long-term/Short- term(N) | Allowable CrushForce (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
GYFXY-24Xn | 14-24 | 96 | 400/1500 | 300/1000 | 10D/20D |
Storage and operating temperature: -40℃ to +70℃. | |||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||
It has good mechanical properties and temperature characteristics.
The loose tube material has good hydrolysis resistance and excellent lateral pressure resistance.
The tube is filled with special grease, providing critical protection for the optical fibers.
The PE sheath has excellent UV radiation resistance.
Two parallel FRPs ensure the stability and tensile performance of the optical cable.
Small in diameter, light in weight, and easy to lay.
