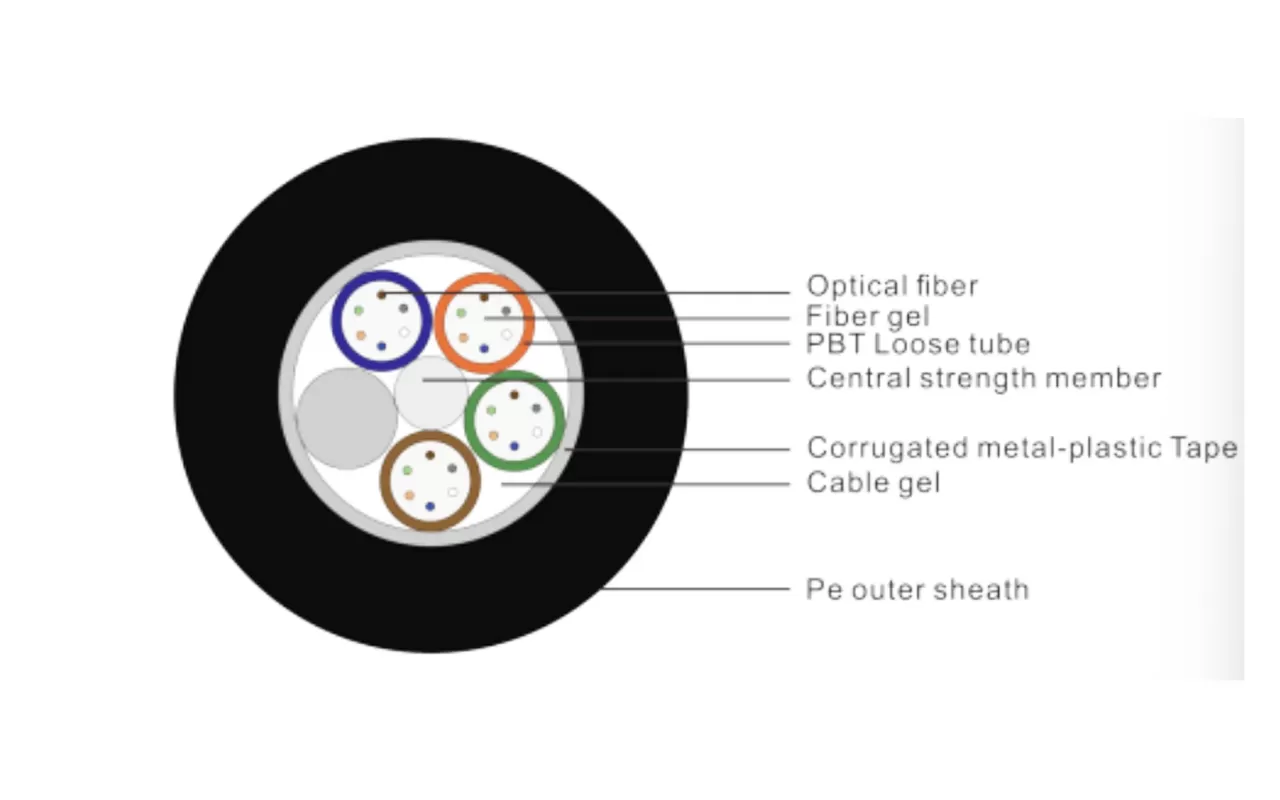

Colored optical fibers are placed into loose tubes made of high-modulus materials, and the loose tubes are filled with thixotropic water-blocking fiber paste.

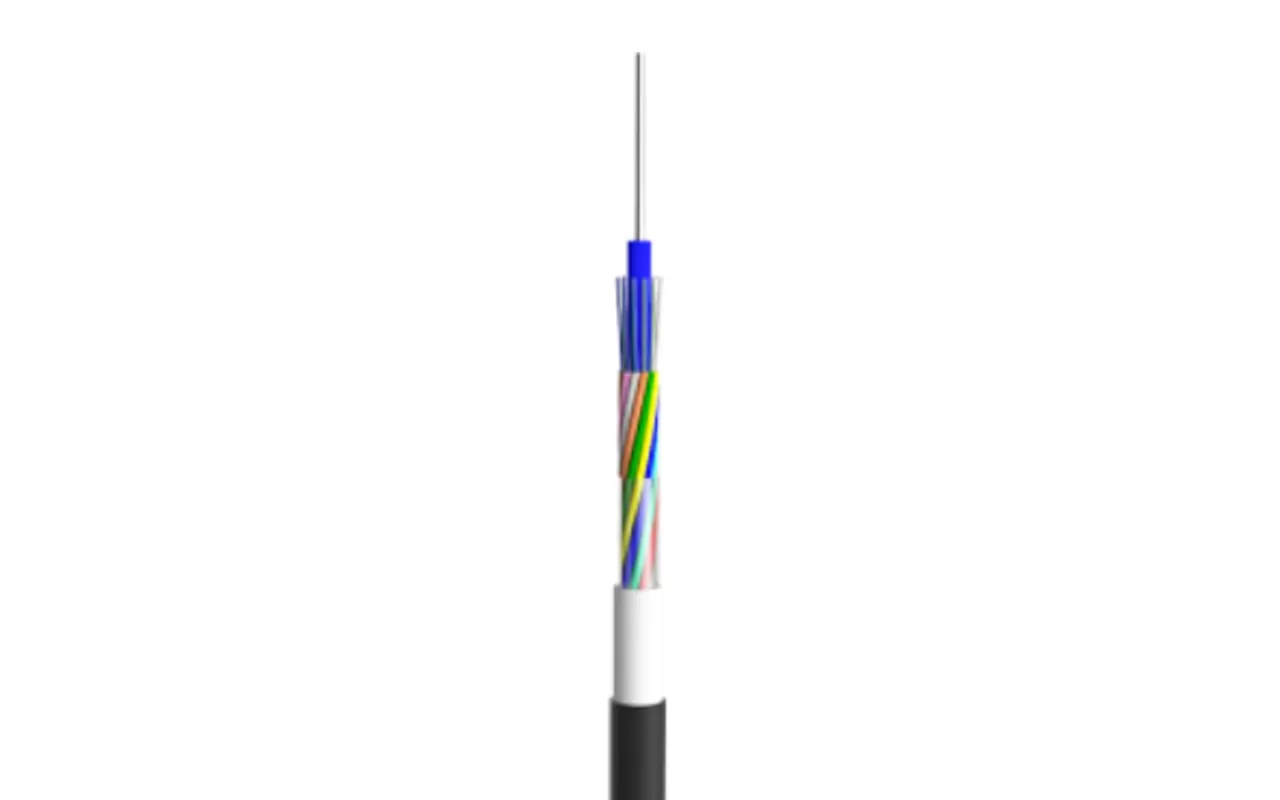

At the center of the cable core is a glass fiber reinforced plastic (FRP). The loose tubes (and filler ropes) are stranded around the central strength member to form a circular cable core, and the gaps in the cable core are filled with water-blocking cable paste. After the plastic-coated aluminum tape is longitudinally wrapped, a polyethylene sheath is extruded to form the cable.
Fiber Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | |||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | ||||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm | |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm | |
50/125μm | ≤3.3db/km | ≤1.2db/km | - | - | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | - | |
62.5/125μm | ≤3.5db/km | ≤1.2db/km | - | - | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NS | - | |
Optical Cable Model(Increasing by 2 Fibers) | Number of Fibers | Number of Sleeves | Number of Filler Ropes | Reference Optical Cable Weight(kg/km) | Allowable Tensile Force(Long-term/Short-term)(N) | Allowable Crush Force(Long-term/Short-term)(N) | Bending Radius(Static/Dynamic)(mm) |
GYFTA-24Xn | 24 | 4 | 2 | 99 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-24Xn | 24 | 4 | 3 | 111 | 600/1500 | ||
GYFTA-48Xn | 48 | 4 | 2 | 122 | |||
GYFTA-24Xn | 24 | 4 | 4 | 127 | 1000/3000 | ||
GYFTA-48Xn | 48 | 8 | 0 | 127 | |||
GYFTA-96Xn | 96 | 8 | 0 | 136 | |||
GYFTA-144Xn | 144 | 12 | 0 | 195 |
Storage and operating temperature: -40°C to +70°C.
Note: The dimensions and performance values of the product can be customized according to customer-specific requirements.
-The loose tube material itself has good hydrolysis resistance and high strength.
It has excellent mechanical properties and temperature characteristics.
The tube is filled with special grease, which provides key sealing protection for the optical fibers.
The PE sheath has excellent UV radiation resistance.
A single non-metallic central strength member with plastic-coated aluminum tape moisture-proof layer.
