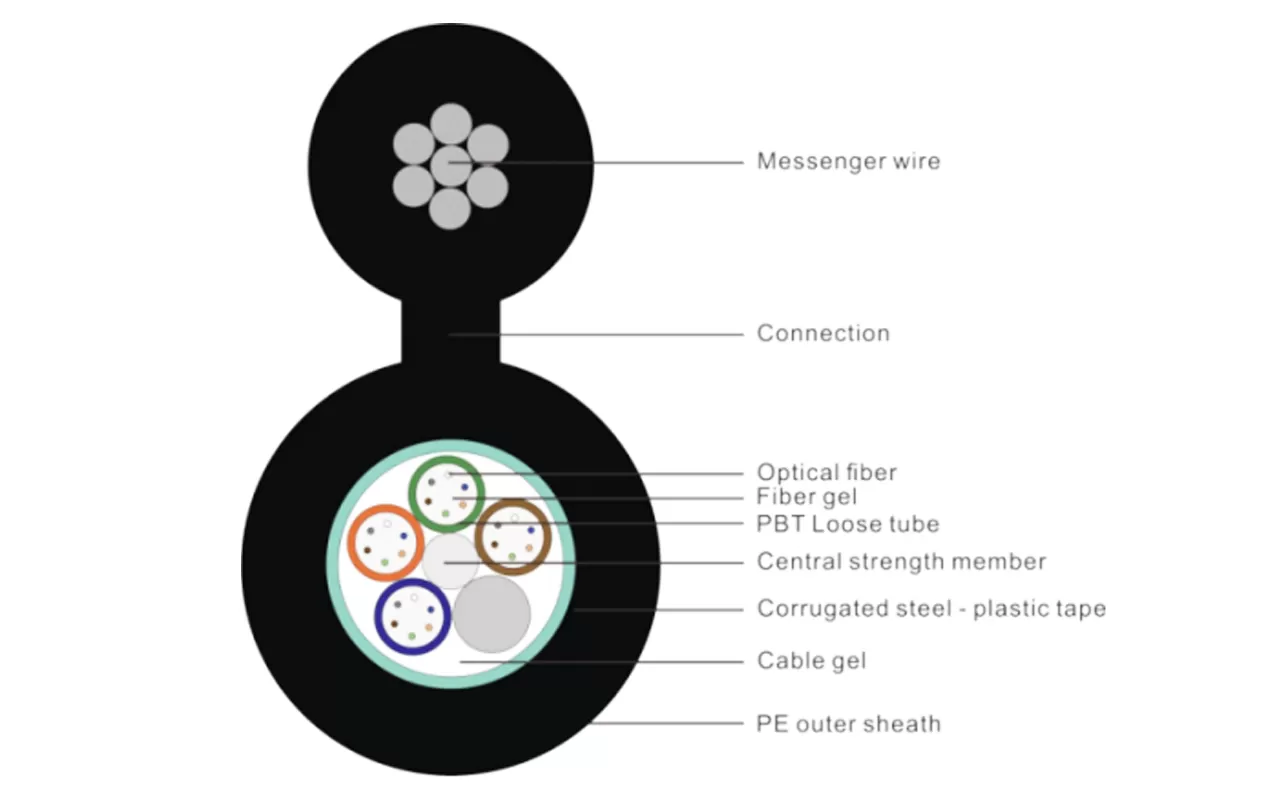

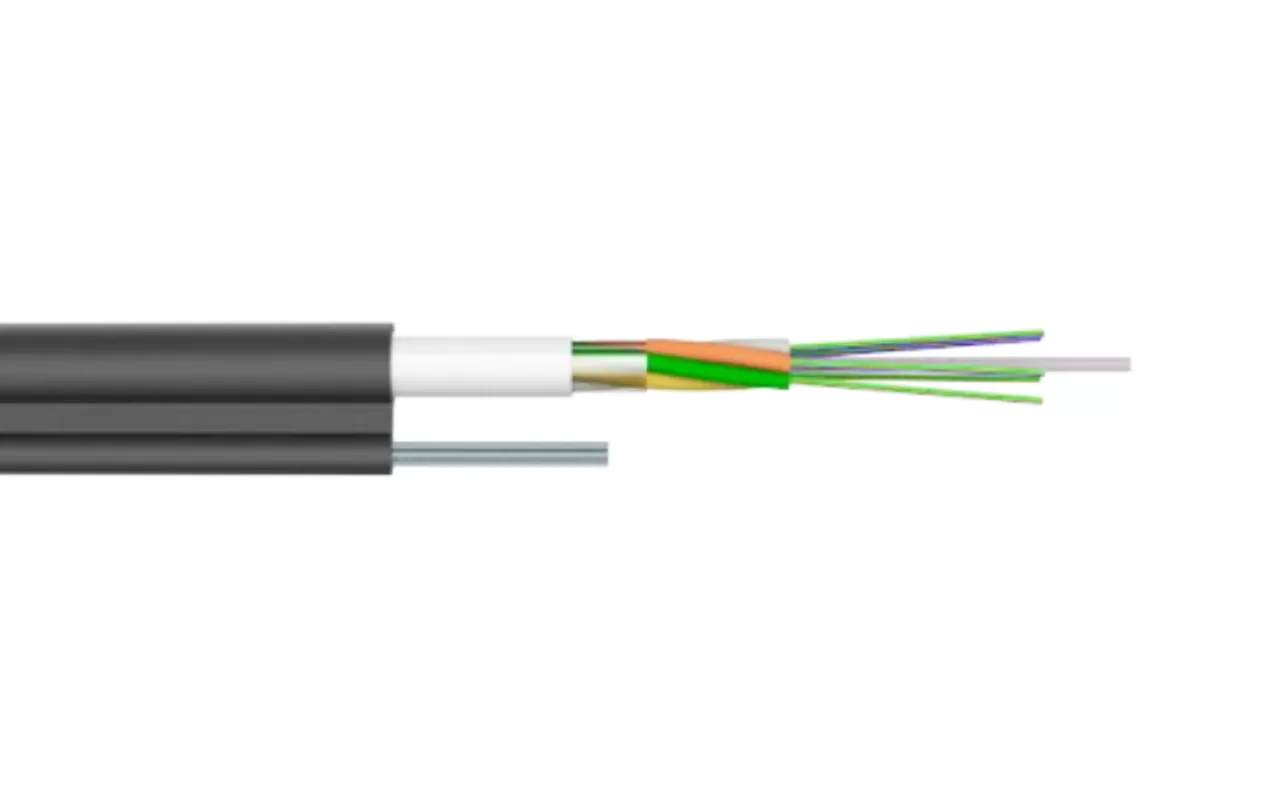

Colored optical fibers are placed into loose tubes made of high-modulus, hydrolysis-resistant material, and the loose tubes are filled with thixotropic water-blocking paste. At the center of the cable core is a metal strength member, around which the loose tubes (and filler ropes) are stranded to form a compact and circular cable core. The cable core is longitudinally wrapped with a layer of plastic-coated aluminum tape, and then integrated with steel wire strands into an 8-shaped polyethylene sheath.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.0db/km | ≤1.0db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.3db/km | ≤1.0db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of Fibers | Number of sleeves | Number of filler ropes | Reference Optical Cable Weight (kg/km) | Allowable Tensile Force Long-term/Short- term(N) | Allowable Crush Force (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
GYTC8A-24Xn | 24 | 4 | 1 | 158 | 根据吊线钢丝直径 | 300/1000 | 10D/20D |
GYTC8A-48Xn | 48 | 4 | 1 | 172 | |||
Storage and operating temperature: -40℃ to +70℃. | |||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||||
It has excellent mechanical properties and temperature characteristics.
Steel strands used as self-supporting elements meet the tensile strength required for aerial optical cables, facilitating self-supporting aerial installation and reducing installation costs.
The loose tube material has good hydrolysis resistance and excellent lateral pressure resistance.
The tube is filled with special grease, providing critical protection for the optical fibers.
The double-sided coated steel tape enhances the cable's moisture resistance.
