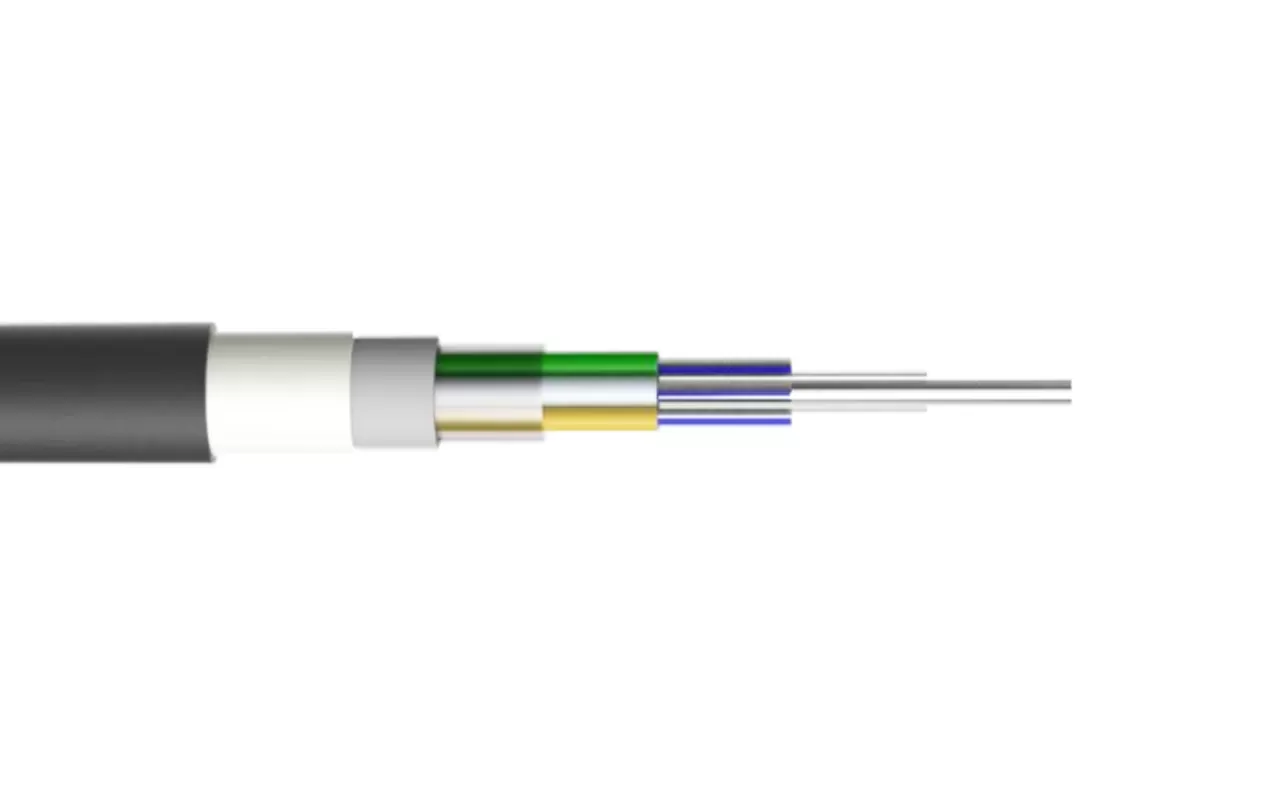

Colored optical fibers are placed into loose tubes made of high-modulus, hydrolysis-resistant material, and the loose tubes are filled with thixotropic water-blocking paste. At the center of the cable core is a non- metallic strength member (FRP), around which the loose tubes (and filler ropes) are stranded to form a compact and circular cable core. Both the loose tubes and the strength member are wrapped with water-blocking yarns. A water-blocking tape is longitudinally wrapped around the cable core, followed by a longitudinally wrapped plastic-coated aluminum tape, and finally a polyethylene sheath is extruded to form the cable.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.3db/km | ≤1.2db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.5db/km | ≤1.2db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Optical Cable Model (Increasing by 2 Fibers) | Number of Fibers | Number of sleeves | Number of filler ropes | Reference Optical Cable Weight (kg/km) | Allowable Tensile Force Long-term/Short- term(N) | Allowable Crush Force (Long-term/ Short-term) (N) | Bending Radius (Static/Dynamic) (mm) |
DCFA-24Xn | 24 | 4 | 2 | 96 | 400/1000 | 300/1000 | 10D/20D |
Storage and operating temperature: -40℃ to +70℃. | |||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | |||||||
It has good mechanical properties and temperature characteristics.
The loose tube material features good hydrolysis resistance and excellent lateral pressure resistance.
Special water-blocking yarns are placed inside the loose tubes to provide critical protection for the optical fibers.
The compact cable structure effectively prevents tube retraction.
Plastic-coated aluminum tape moisture barrier.
The PE sheath has excellent UV radiation resistance.
