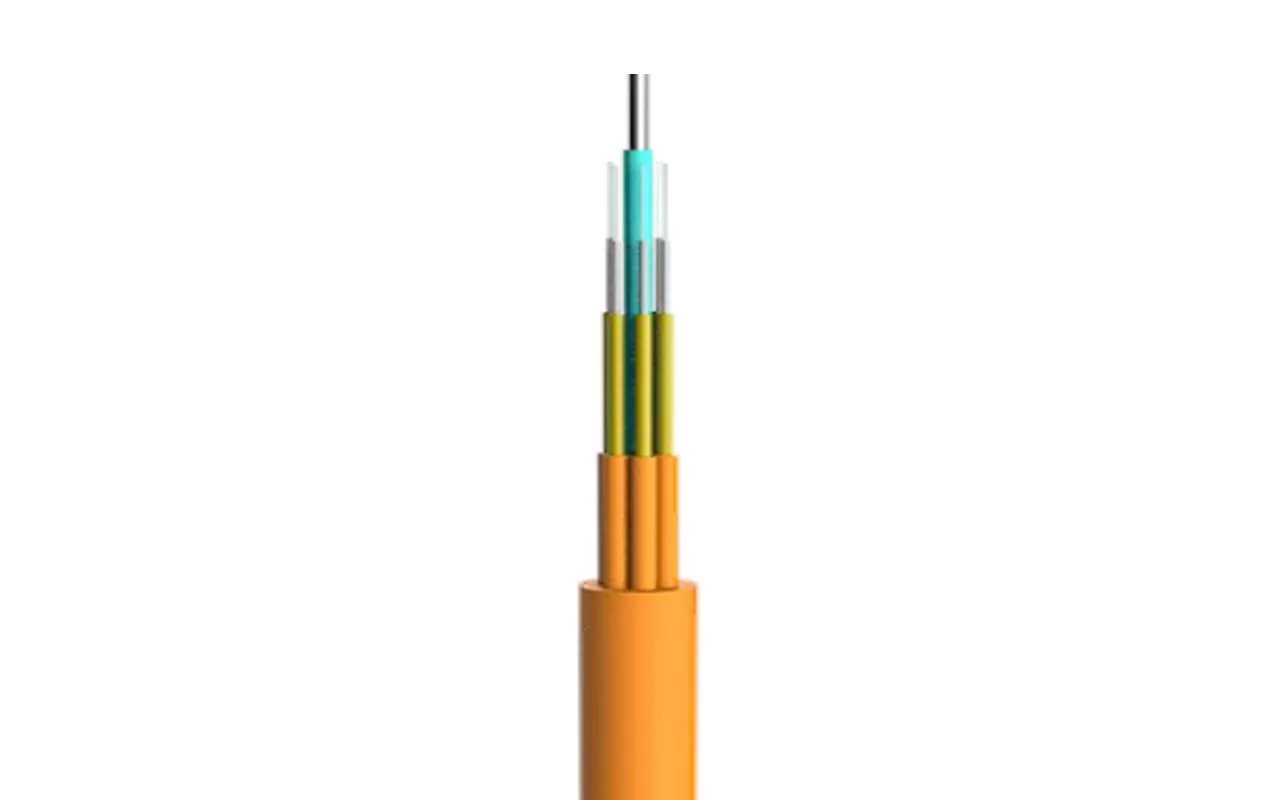

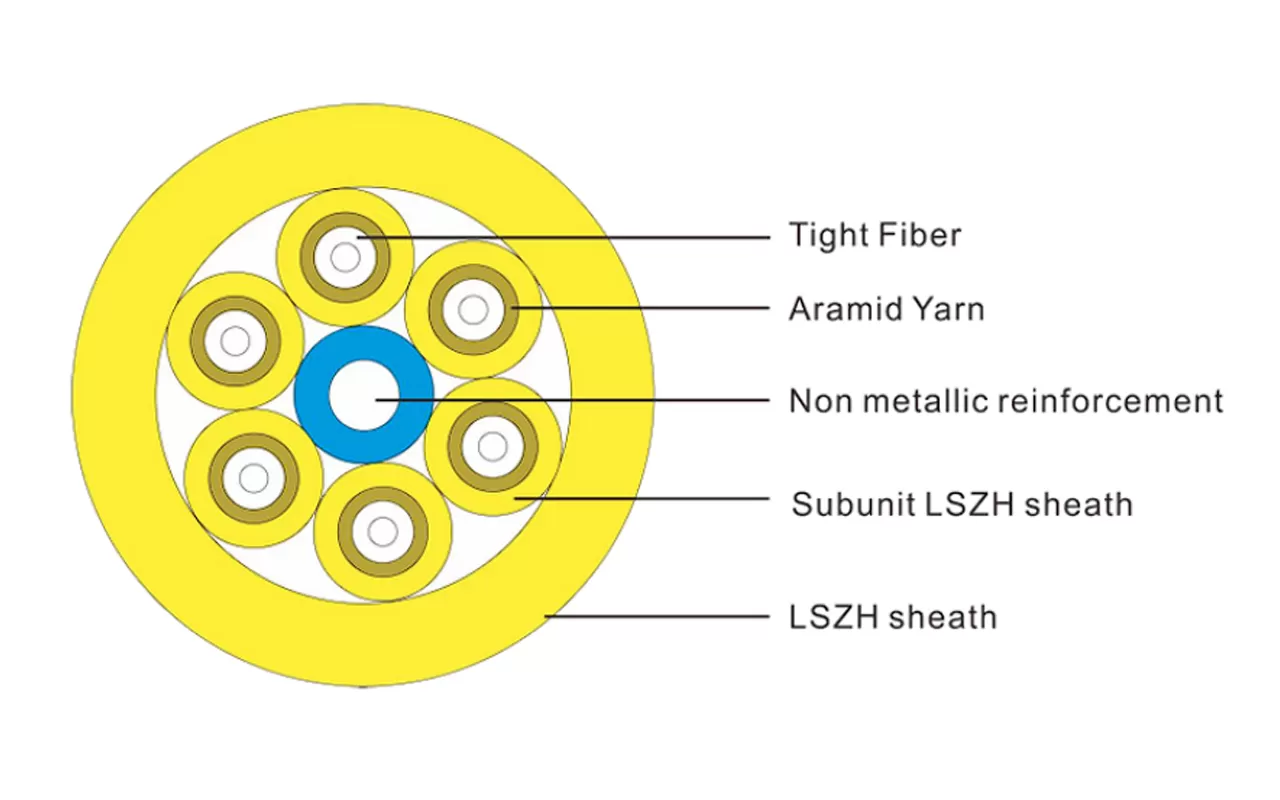

The multi-purpose branch optical cable uses single-core optical cables (900μm tight-buffered optical fibers with aramid strength members) as sub-units, with a non-metallic central strength member. The cable sub units are stranded around the central strength member to form the cable core. The outermost layer is extruded with a polyvinyl chloride (PVC) sheath. Sheaths made of low smoke zero halogen (LSZH) material can also be provided according to customer requirements.
Optical Cable Model | Reference Cable Diameter (mm) | Reference Cable Weight (kg/km) | Allowable Tensile Force Long-term/Short-term (N) | Allowable Crush Force Long-term/Short-term (N) | Bending Radius Static/Dynamic (mm) | |
BOC-X-XX-04Xn | 7.4±0.5 | 50 | 56 | 130/440 | 300/1000 | 20D/10D |
BOC-X-XX-06Xn | 8.4±0.5 | 66 | 74 | 200/660 | 300/1000 | 20D/10D |
BOC-X-XX-08Xn | 9.8±0.5 | 91 | 101 | 200/660 | 300/1000 | 20D/10D |
BOC-X-XX-12Xn | 12.4±0.5 | 140 | 155 | 200/660 | 300/1000 | 20D/10D |
BOC-X-XX-18Xn | 12.4±0.5 | 140 | 155 | 400/1320 | 300/1000 | 20D/10D |
BOC-X-XX-24Xn | 14.4±0.5 | 181 | 201 | 400/1320 | 300/1000 | 20D/10D |
BOC-X-XX-36Xn | 16.4±0.5 | 208 | 255 | 400/1320 | 300/1000 | 20D/10D |
BOC-X-XX-48Xn | 19±0.5 | 280 | 344 | 400/1320 | 300/1000 | 20D/10D |
Optical Fiber Type | Attenuation | Overfilled Launch Bandwidth | Effective Modal Bandwidth | 10G Ethernet Link Length | Minimum Bending Radius | |||
Conditions | 1310/1550nm Typical Value Maximum Value | 1310/1550nm Typical Value Maximum Value | 850/1300nm | 850nm | 850nm | / | ||
单位 | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
BI-OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 | ||
Transportation/storage/operating temperature: -20°C ~ +60°C, installation temperature: -5°C ~ +50°C. | ||||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer's specified requirements. | ||||||||
The non-metallic strength member enables the optical cable to withstand greater tensile force.
Aramid strength members endow the optical cable with excellent tensile performance.
The outer sheath material has the advantages of corrosion resistance, water resistance, flame retardancy and environmental protection.
Indoor generic cabling
Building backbone cabling optical cable
