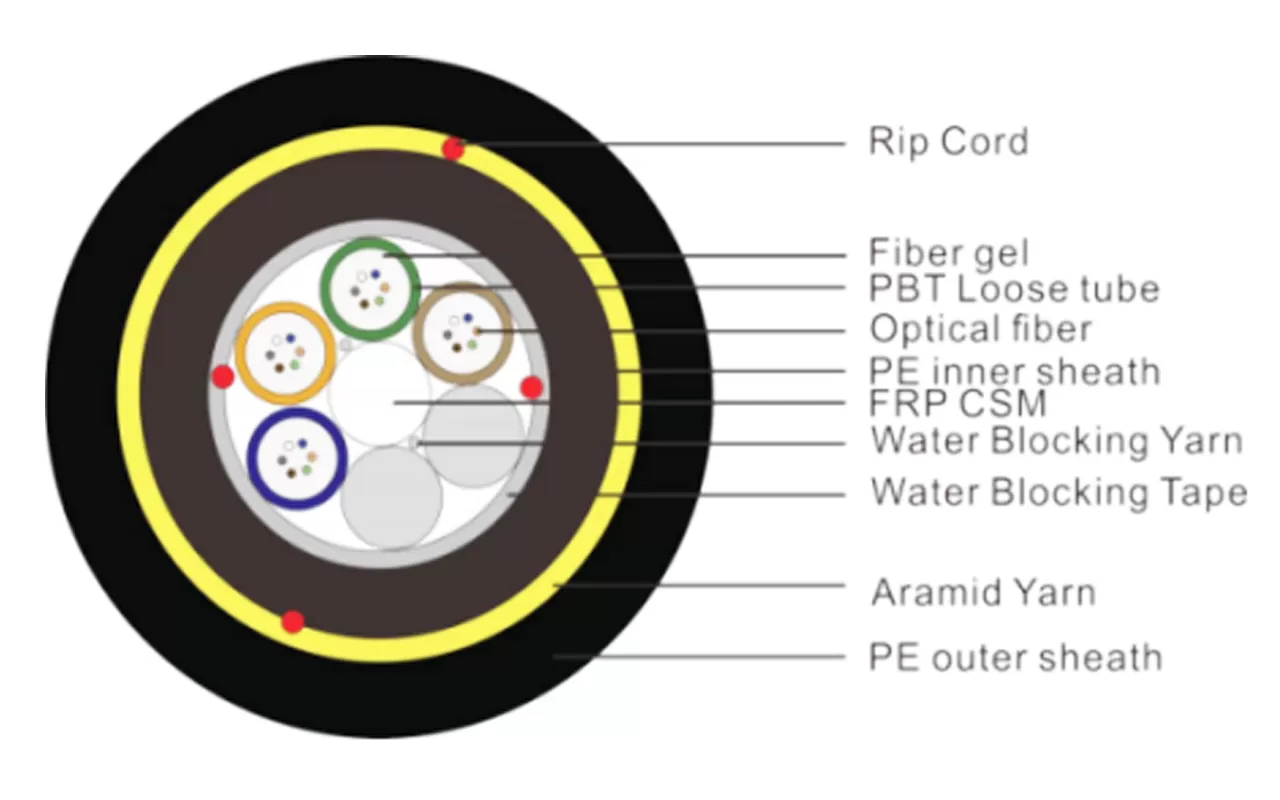

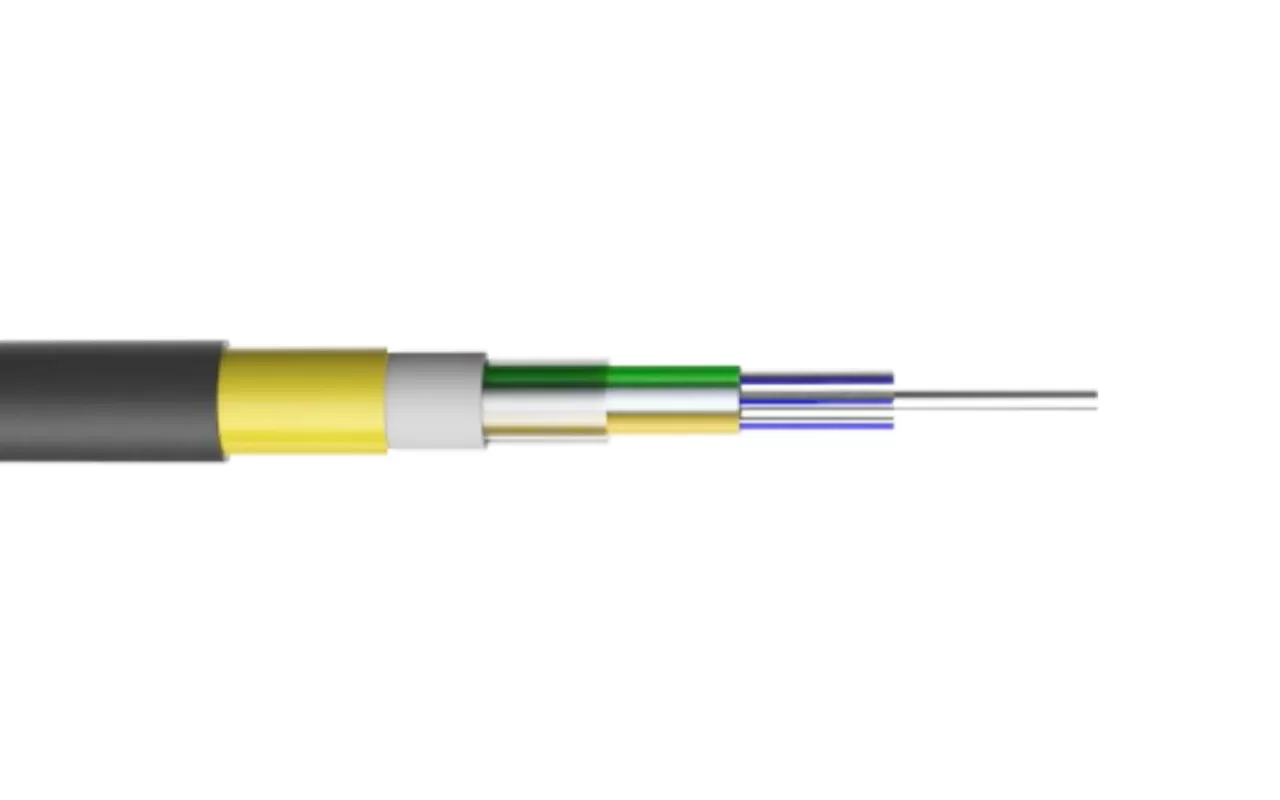

Colored optical fibers are placed into loose tubes made of high-modulus hydrolysis-resistant material, and the loose tubes are filled with thixotropic water-blocking paste. At the center of the cable core is a metal strength member, around which the loose tubes (and filler ropes) are stranded to form a compact and circular cable core. The cable core, after being longitudinally wrapped with a layer of plastic-coated aluminum tape, is integrated with steel wire strands into an 8-shaped polyethylene sheath.
Fiber Type | Attenuation(+20℃） | Bandwidth | Numerical Aperture(NA) | Cable Cutoff Wavelength | ||||
@850mm | @1300mm | @1310mm | @1550mm | @1550mm | @1300mm | |||
G.652 | - | - | ≤0.36db/km | ≤0.22db/km | - | - | - | ≤1260nm |
G.655 | - | - | - | ≤0.23db/km | - | - | - | ≤1450nm |
50/125μm | ≤3.0db/km | ≤1.0db/km | - | - | ≥ 500MHz·km | ≥ 500MHz·km | 0.200±0.015NA | - |
62.5/125μm | ≤3.3db/km | ≤1.0db/km | - | - | ≥ 200MHz·km | ≥ 500MHz·km | 0.275±0.015NS | - |
Reference outer diameter (mm) | Reference weight (kg/km) | Recommended daily maximum working tension(KN) | Maximum allowable working tension(KN) | Breaking strength (KN) | Tensile element cross-sectional area (mm2) | Elastic modulus (KN/mm2) | Thermal expansion coefficient *10-6/K | Suitable span(m) Corresponding meteor ological conditions(m) | ||||
PE outer sheath | AT outer sheath | A | B | C | D | |||||||
11.8 | 117 | 124 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
12.0 | 121 | 129 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
12.3 | 126 | 134 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
12.6 | 133 | 141 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
12.8 | 138 | 145 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
13.1 | 145 | 153 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
13.5 | 155 | 163 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
13.8 | 163 | 171 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 320 | 650 | 460 |
14.4 | 177 | 186 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 380 | 750 | 510 |
14.6 | 182 | 191 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 | 880 | 460 | 800 | 560 |
14.8 | 195 | 204 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 | 880 | 530 | 880 | 650 |
Storage and operating temperature: -40℃ to +70℃. | ||||||||||||
Note: The dimensions and performance values of the product can be adjusted according to the customer- specific requirements. | ||||||||||||
Good mechanical properties and temperature characteristics
Steel wire strands used as self-supporting components meet the tensile strength required for overhead optical cables, facilitating self-supporting overhead installation and reducing installation costs
The loose tube material has excellent hydrolysis resistance and good lateral pressure resistance
The tube is filled with special grease, providing key protection for optical fibers
Double-sided plastic-coated steel tape enhances the moisture resistance of the cable
