Product info

Interface
According to	IEC 60169-16
Electrical
Characteristic Impedance	50 ohm
Frequency Range	0-3GHz
VSWR	≤1.10
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact	≤1mΩ
Contact Resistance	Outer Contact	≤0.25mΩ
Mechanical
Durability	Mating cycles	≥500
Material and plating	Material	plating
Body	Brass	Ni
Insulator	PTFE	－
Center conductor	Phosphor bronze	Au
Environmental
Temperature Range	-40℃～+85℃
Drafted by: W.b	Approved by:Q.h

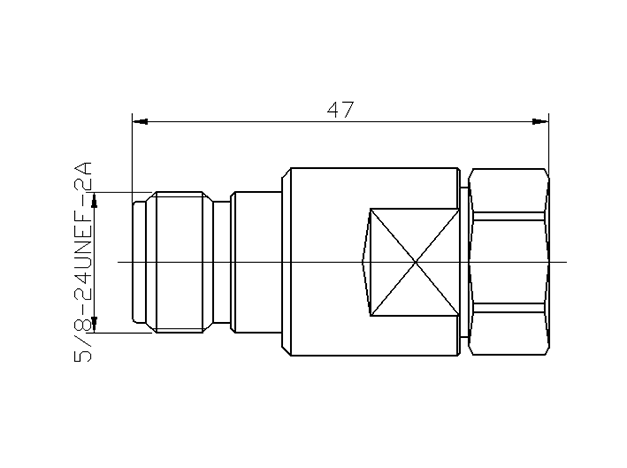

VIEW
