Specification

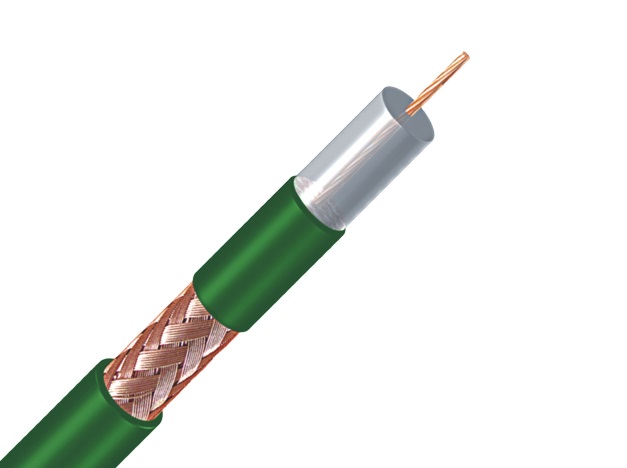

Basic Construction
| KX6 | ||
| Conductor | Material | BC/TC |
| Nom.Dia. | 7×0.20±0.005mm | |
| Dielectric | Material | Solid PE |
| Nom.Dia. | 3.70±0.10mm | |
| Shield | Material | BC/CCA Braiding |
| Coverage | 95% | |
| Jacket | Material | PVC |
| Nom.Dia. | 6.10±0.10mm |
Basic Characteristics
| Nominal Impedance(Ohm) | 75±3 | |
| Nominal Velocity Of Propagation(%) | 66 | |
| Nominal Capacitance(Pf/m) | 67.3 | |
|
Attenuation [68°f(20℃)] Maximum (Db/100m) |
Frequency(Mhz) | KX6 |
| 10 | 3.9 | |
| 50 | 10.5 | |
| 100 | 15.0 | |
| 200 | 22.0 | |
| 400 | 32.0 | |
| 700 | 44.0 | |
| 900 | 52.0 | |
| 1000 | 55.0 | |
