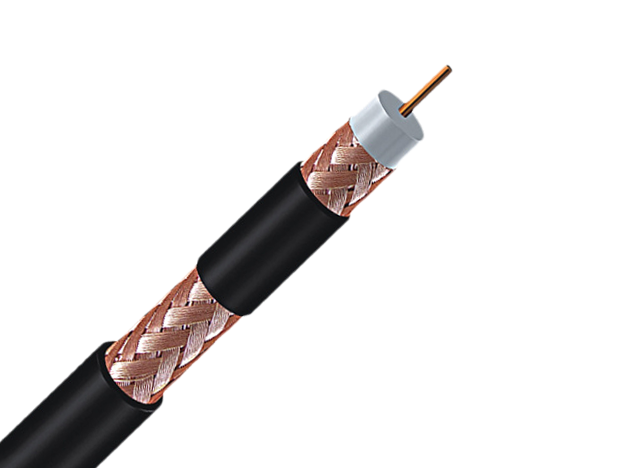

RG11 Cable

Rg11 cable is mainly used in cable TV and satellite receiving systems.

1. Package: empty rolls, wooden and plastic trays, and pull -boxes.

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Basic Construction
RG11
Conductor Material BC/CCS
Nom.Dia. 14awg
Dielectric Material Foam PE
Nom.Dia. 7.11mm
Shield Material Al Foil+Al Braiding
Coverage 40%-95%
Jacket Material PVC/PE
Nom.Thick. 1.07mm
Nom.Dia. 10.16mm


Basic Characteristics
Nominal Impedance(Ohm) 75±3
Nominal Velocity Of Propagation(%) 85
Nominal Capacitance(Pf/m) 50
Sparker Test(Vac) 5000
Srl(Db) 20
Attenuation
[68°f(20℃)]
Frequency(Mhz) Maximum
(Db/100ft) (Db/100m)
55 0.96 3.15
300 2.25 7.38
450 2.75 9.02
600 3.18 10.43
750 3.65 11.97
1000 4.35 14.27
